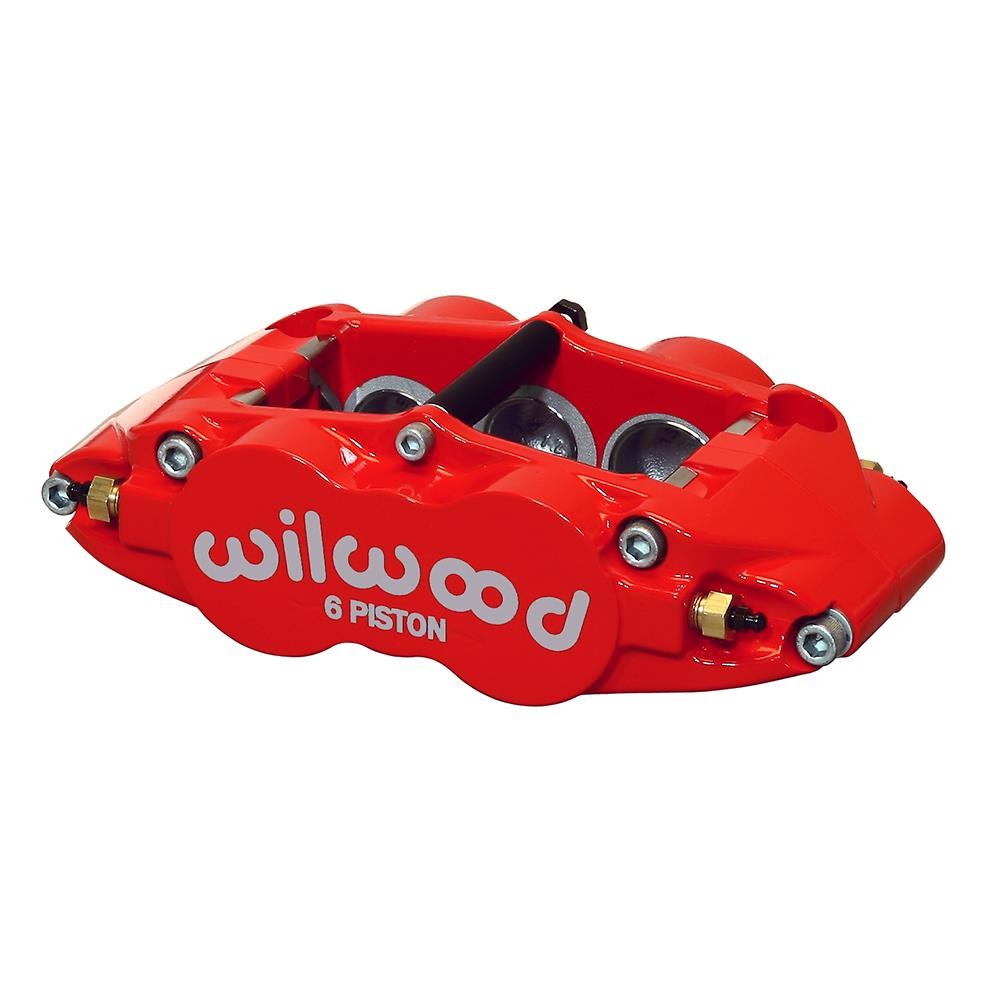

Forged Narrow Superlite 6 Radial MountThe Forged Narrow Superlite 6R (FNSL6R) is our newest version for the venerable Superlite caliper series adds the versatility and convenience of radial mounting to this widely popular caliper group. Radial mounting simplifies adaptation and provides two planes of adjustment for accurate alignment over the disc. These calipers integrate \"Big Brake\" style with Wilwood\'s latest technology to generate big stopping power in extreme environments over a broad range of vehicle applications.The key to the superior performance of the FNSL6R comes from the extremely durable and efficient body design. Starting at 4.9 pounds it is the product of computer generated solid modeling and FEA stress analysis technology Wilwood 120-14540-RD Forged Narrow Superlite 6 Radial Mount Sku # 83512014540RD Mfr. Part # 120-14540-RD Condition New Brand Wilwood Sold Each Details Forged Narrow Superlite 6 Radial Mount
The Forged Narrow Superlite 6R (FNSL6R) is our newest version for the venerable Superlite caliper series adds the versatility and convenience of radial mounting to this widely popular caliper group. Radial mounting simplifies adaptation and provides two planes of adjustment for accurate alignment over the disc. These calipers integrate \"Big Brake\" style with Wilwood\'s latest technology to generate big stopping power in extreme environments over a broad range of vehicle applications.
The key to the superior performance of the FNSL6R comes from the extremely durable and efficient body design. Starting at 4.9 pounds it is the product of computer generated solid modeling and FEA stress analysis technology. The most noteworthy feature of this new caliper design is the forging. Each body is stress-flow forged from premium grade aluminum alloy billets. Stress-flow forging re-aligns the metal\'s internal grain structure to flow within the contour of the caliper body. This process eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. Simply stated, there is no better way to build a stronger aluminum caliper body.
A unique six-piston differential bore configuration provides balanced loading for even pad wear in sustained high heat environments. The standard FNSL6R calipers feature one-piece stainless steel pistons. Stainless is used for its slow heat transfer properties and high resistance to corrosion. Calipers can be upgraded with Wilwood\'s exclusive Thermlock pistons. This multi-part piston design creates a highly efficient thermal barrier to further reduce heat transfer from the pads to caliper body, seals, and fluid. Cooler temperatures translate to longer service life and less chance for heat induced pedal fade.
This item is being shipped to you directly from the manufacturer and is subject to an increased handling time. Delivery estimates that include the handling time are displayed on the \"Shipping and Payments\" tab. Specs Caliper Pistons Six Piston Diameter 1.75" Caliper Material Type Aluminum Caliper Color Red Parking Brake Provision No Fittings Included No Brake Pads Included No Bracket Included No Rotor Diameter 14 Inch Color Red Rotor Thickness 1.10" Finish Powder Coated Bore 2 Size 1.25" Bore 3 Size 1.250" Total Piston Area 4.86 sq. in. Pad Area 8.20 sq. in. Pad Volume 3.80 cu. in. Mount Type Radial Piston Type Stainless MFG. Part # 120-14540-RD GTIN Code 889545081084 Notes Dust seals included. Radial mount with a 5.98 in. mounting center and a 1.45 in. mount height. Use with 11.75 - 14 in. diameter by rotors. Logo Wilwood Material Type Aluminum Tech Support We\'re here to help before and after your purchase. If you have a question or need assistance with one of our products, please contact us through Messaging and a knowledgeable Speedway Motors team member will be happy to help. About Speedway Motors is America’s Oldest Speed Shop® and has been a trusted source for specialty rodding and racing products and friendly expert advice for more than 74 years. Founded in 1952 by “Speedy” Bill Smith – a racer and street rodder himself – Speedway has grown from a one-man operation to become the world’s largest manufacturer, distributor and retailer of street rod and racing products. Our industry-leading fast delivery is the result of same-day shipping from our state-of-the-art, centrally located 500,000 sq. ft. headquarters. Speedway’s size offers customers unmatched product selection and low pricing, while our excellent technical support and customer service have made us a recognized leader in the rodding and racing industries.
