Pistons:
- Piston Count: 4
- Piston Area (in²): 3.00
- Piston Type: Stainless
- Dust Boot: No
Rotor Dimensions:
- Rotor Width (in): 0.81
- Rotor Diameter(in): 13.06
Pad Dimensions:
- Pad Area (in²): 6.36
- Pad Volume (in³): 2.1
Duty Rating & Material:
- Material: Aluminum
- Weight(Lbs): 3.6
Colors & Finish:
- Color: Red
- Finish: Red Powder Coat
Mounting:
- Mount Center(in): 5.25
- Mount Side: Universal
- Mount Type: Lug
Specifications:
Rotor Compatibility:
- Rotor Width (in): 0.81
- Maximum Rotor Width (in): 0.83
- Minimum Rotor Width (in): 0.75
- Maximum Rotor Diameter(in): 13.06
- Minimum Rotor Diameter(in): 10.00
Brake Pad Specifications:
- Brake Pad Type 1: 7112
- Total Pad Area (in²): 6.36
- Total Pad Volume (in³): 2.1
Piston Specifications:
- Piston 1 Bore (in): 1.38
- Piston 2 Bore (in): 1.38
- Total Piston Area (in²): 3.00
Mounting Specifications:
- Mount Type: Lug
- Mount Side: Universal
- Mount Center(in): 5.25
- Mount Hole Size(in): 0.39
- Mount Height(in): 2.03
- Inlet Thread Size: 1/8-27 NPT
SHIPPING
- We do our best to ship most items same or next day.
- For all products, free fast delivery of the UPS is already included in the price.
- Unfortunately UPS doesn’t accept PO box address. Please specify physical address which will guarantee faster delivery.
PAYMENT
- All orders must be paid via PayPal.
- You may use your paypal dollars, or use your MC/Visa, Amex, Discover thru your PayPal account.
RETURNS
- We offer 30 Day return policy.
- Buyer pays return shipping.
- Returns will only be accepted with a valid RMA number.
- All returns must be in original box unopened.
- A 20% restocking fee may apply.
- All products returned are assumed to be in new and saleable condition unless the customer indicates otherwise at the time of submission. Re-boxing fees will be assessed on items received with damaged packaging. This fee may include shipping or other charges levied by the manufacturer. Any product returned in damaged, used or otherwise unsaleable condition may be returned to the customer or credit given at lower value, at the discretion of Autoshopping24.
EXCHANGE OF FAULTY ITEMS
- Unfortunately mistakes happen and very seldom we ship faulty items. If you would like to get a replacement for an item purchased from us, we can do it for you! Please ship the original item(s) to our warehouse first and provide us with tracking number(s). Once we see that items are on their way we will send a replacement.
OVERVIEW

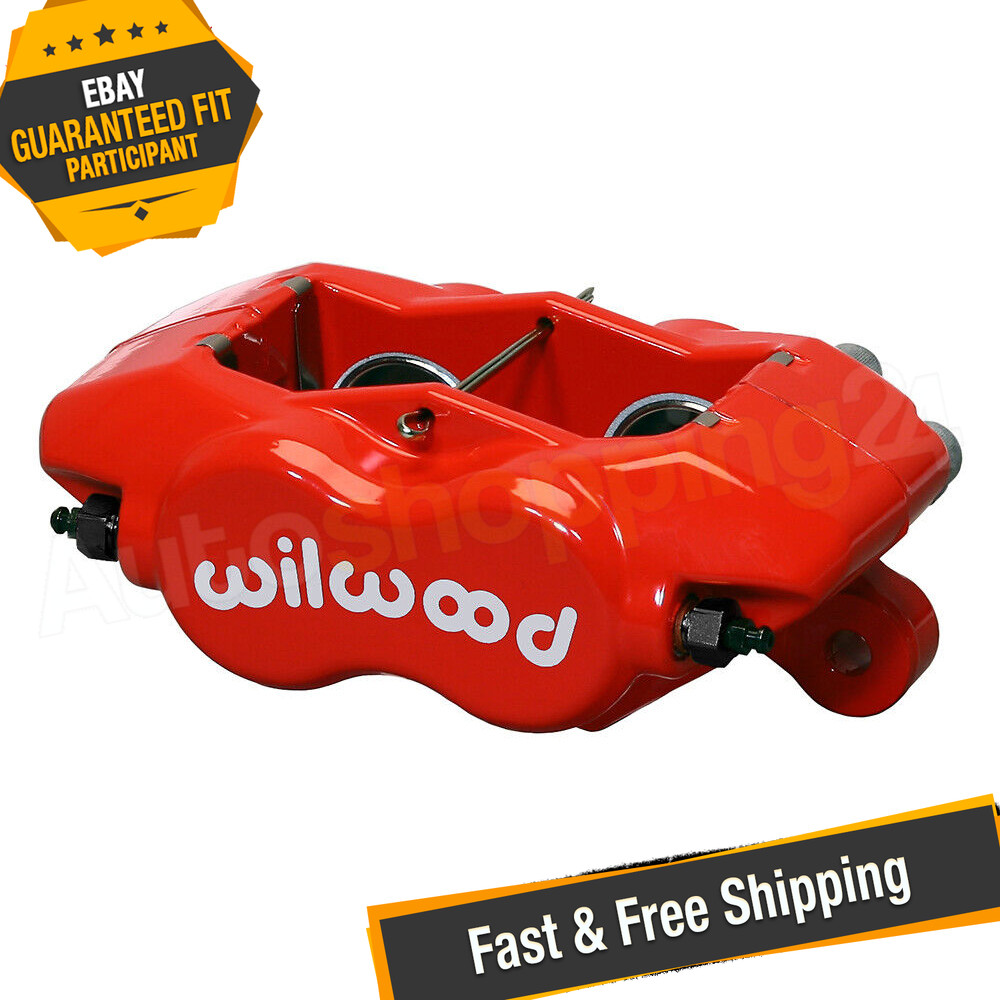

The Forged Billet Dynalite Internal is the next generation enhancement of the venerable Forged Dynalite series calipers. Designed with a single split bridge and spacer less design to enhance strength and appearance. These latest applied developments and innovations in caliper design and manufacturing processes have resulted in substantial improvements in strength and performance over all comparable models. This new spacer-less design of the Forged Dynalite series of calipers, makes this the stiffest and most visual pleasing design so far.
The Forged Billet Dynalite Internal is the strongest caliper in the class, with weights starting at 3.00 pounds. The process of stress-flow forging re-aligns the metal\'s grain structure within the contour of the caliper body. This process eliminates the breaks and interruptions to the internal grain structure that occur when machining a straight block billet. The FEA generated radial transition design eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. Incorporating a radius in this transition area substantially increases resistance to deflection and caliper separation under load. Structural deflection and volume displacement tests have proven the Forged Dynalite to outperform all existing styles of this popular caliper size.
NOTES
If you have fitment questions or concerns, please contact us prior to ordering.
