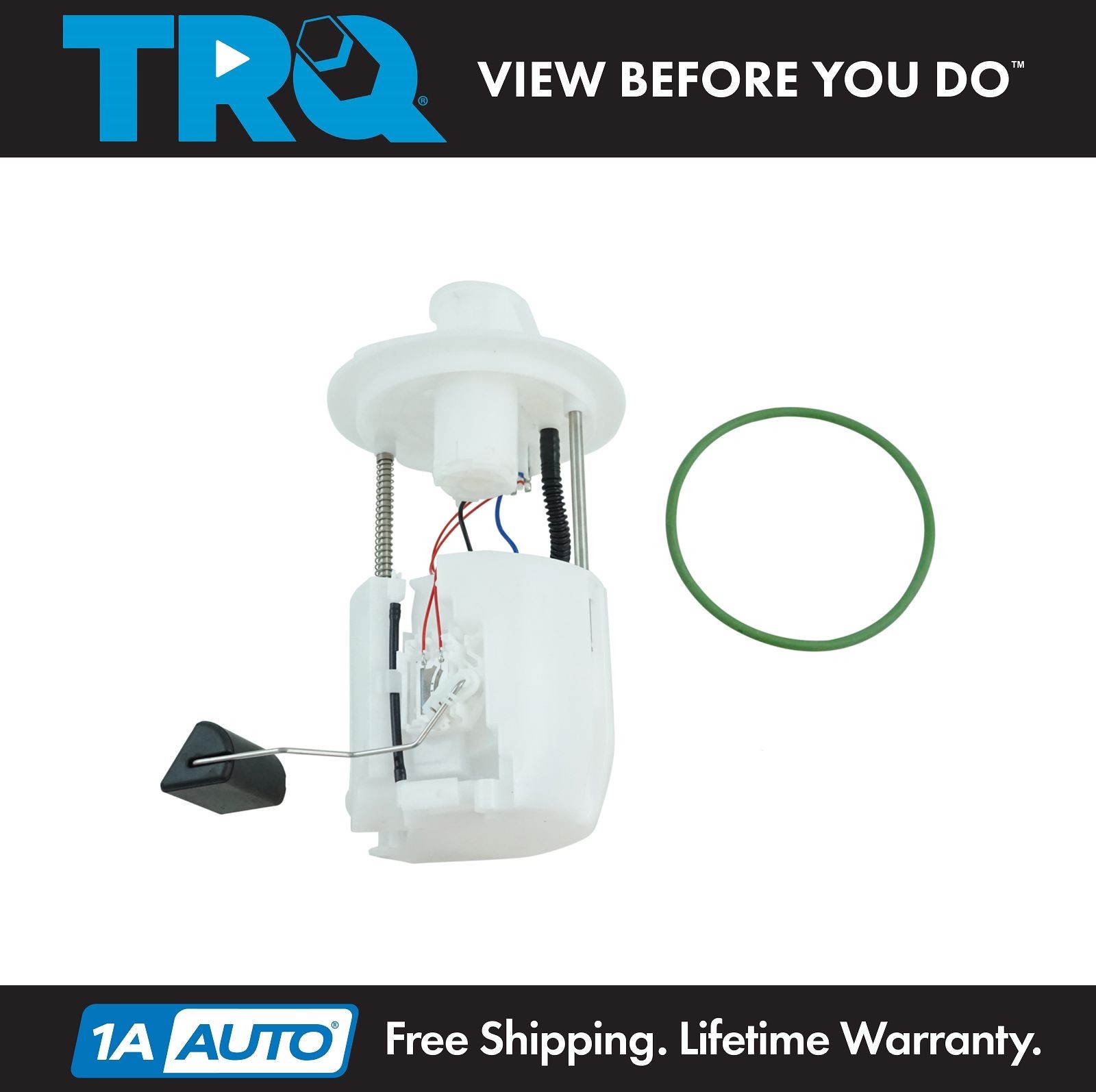

Fuel Pump Module Assembly
2005-2013 Toyota Corolla
2005-2006 Toyota Matrix Front Wheel Drive
2007-2008 Toyota Matrix
2009-2013 Toyota Matrix Front Wheel Drive Check Fitment for Your Vehicle
2005-2013 Toyota Corolla
2005-2006 Toyota Matrix Front Wheel Drive
2007-2008 Toyota Matrix
2009-2013 Toyota Matrix Front Wheel Drive
Verify exact fit by year, make, model, and options.
What’s in the Box
Product Attributes Inlet Quantity: 0
Outlet Outside Diameter: 0.31 in
Outlet Quantity: 1
Resistance Ohms Full: 16 Ohms
Minimum Flow Rating: 26 gph
Average Flow Rating: 30 gph
Maximum Flow Rating: 34.34 gph
Resistance Ohms Empty: 412 Ohms
Minimum Pressure: 49 PSI
Terminal Quantity: 5
Maximum Pressure: 52.5 PSI
Outlet Outside Diameter: 7.9 mm
Pump Type: Electric
Fuel Type: Gas
In Tank or External: In Tank
Fuel Tank Pressure Sensor Included: No
Lock Ring Included: No
Wire Harness Included: No
Strainer Included: No
Outlet Type: Quick Connect
Inlet Type: Strainer
Fuel Sending Unit Included: Yes
Gasket Or Seal Included: Yes Reference Numbers
Agility Autoparts: 4010533
Airtex Fuel Pumps: E8874M
Airtex: E8874M
Carter: P76578M
Delphi Fuel Pumps: FG0938
Delphi: FG0938
General Motors: 88974776
Hollander: 323-59345
Spectra Premium: SP9165M, SP9167M
Toyota: 77020-02181, 7702002181 Lifetime Warranty
This item is backed by our limited lifetime warranty. In the event this item should fail due to manufacturing defects during intended use, we will replace the part free of charge. This warranty covers the cost of the part only.
