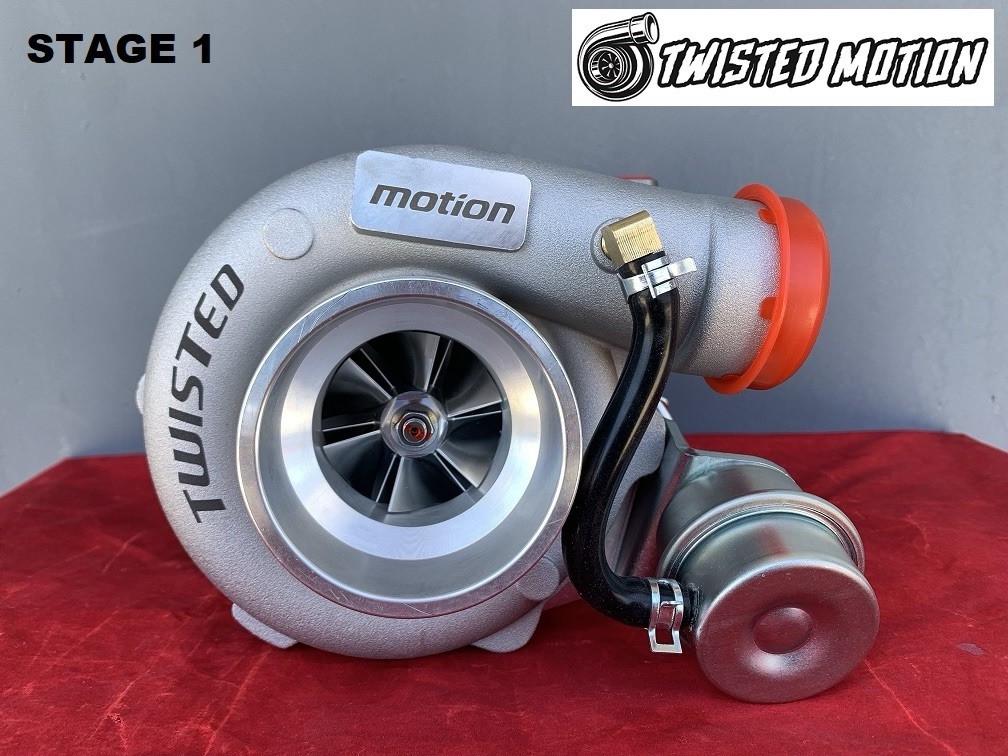

Twisted Motion Edition RB20DET/RB25DET quick spool turbo upgrade Stage 1
Bolt on Turbo for Nissan Skyline 2.0 2.5L R32 R33 R34 RB25 RB20 RB20DET RB25DET.
This turbo is larger than factory RB25DET Turbo.
This upgrade is Great for getting rid of that crappy ceramic factory turbo issue.
This turbo is made of full steel, and internals are upgraded and VSR Balanced to handle higher boost levels up to (30psi) and a beating at the track/comp use or just that daily driver needed a refresh !
No tune needed but obviously way better if you tune it
As long as you keep it under 12psi no tune needed …
Recommend getting a braided line kit for easy install.
Some mods may be required for install
Couplers or different oil or water fittings may be required depending on your series engine rb …
What’s included:
(Stage 1) Turbocharger with adjustable internal wastegate,
NOTE: The longer u adjust the rod the lower the boost down to 9psi and the shorter the rod the more boost up to 30psi maxed out.
T3 metal gasket
Oil drain gasket
Oil restrictor built into oil feed port
Specs: GOOD UP TO 420hp to wheels on pump gas ⛽️
STAGE 1 BILLET WHEEL COMPRESSOR:
Inducer Diameter： 52.5 mm
Exducer Diameter： 76.0 mm
A/R： 0.50 (FRONT HOUSING)
Turbine Size:
Turbine Inducer: 64.4mm
Turbine Exducer: 47.9mm
Turbine Trim: 55.3
Turbine A/R: 0.63 (Quick Spool)
Exhaust (Turbo Manifold) Flange: T3 flange
Exhaust Outlet Flange: Factory 6 bolt downpipe flange factory skyline
Oil feed thread pitch
M12x1.25mm requires 1.5mm oil restrictor (Included)
Rear housing size: ar63 (quick spool)
Oil and water cooled
Journal bearing
360 degree thrust washer upgrade
Vsr balanced
Gapless oil seal
Will ship worldwide ! 🌎
