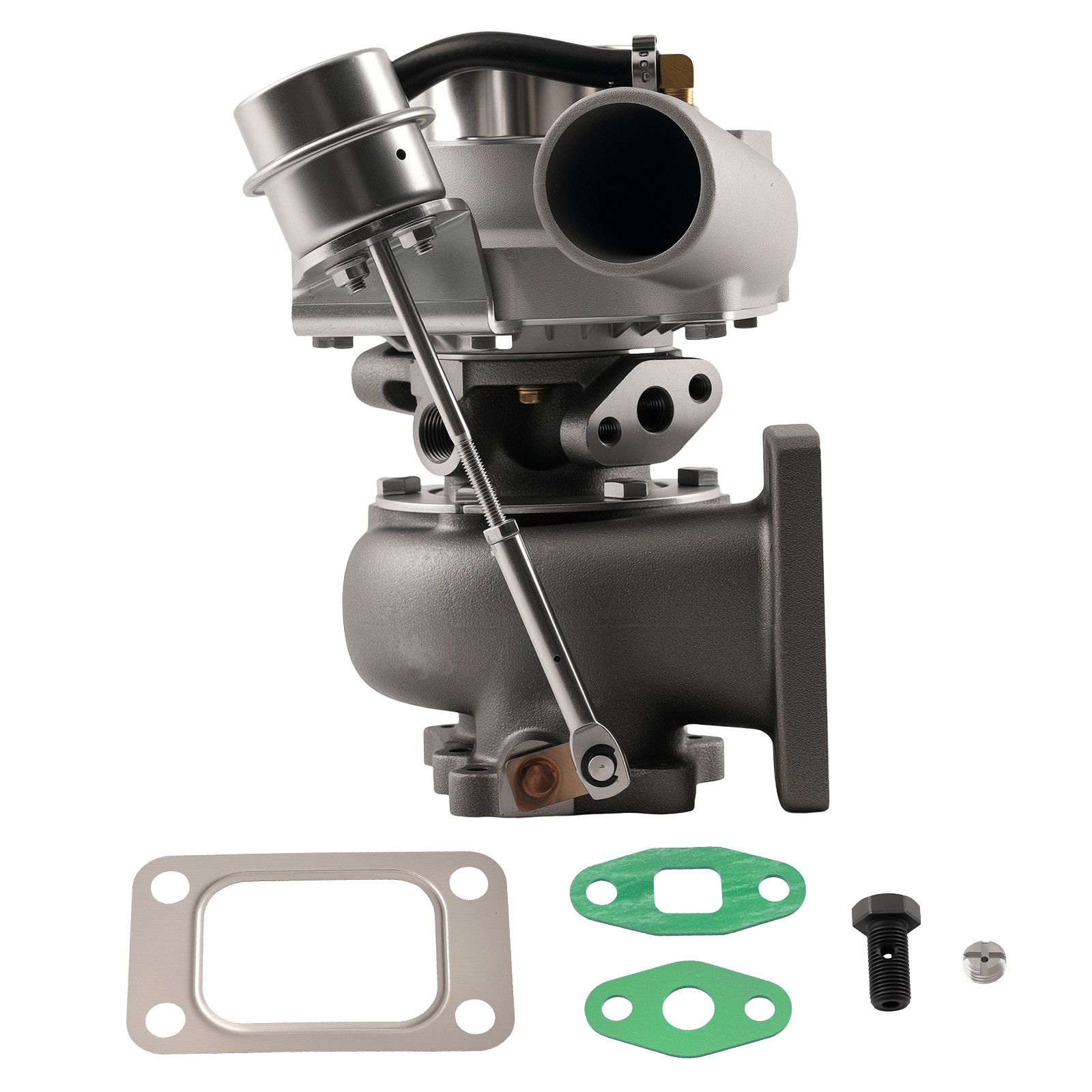

Turbo Turbocharger for Nissan Skyline R32 R33 R34 RB20DET RB25DET T3 500 BHP
Item Description
All modifications must be installed by licensed mechanics and in compliance with your local modification turbo is directly bolt on for Nissan Skyline R32 R34 2.0L-2.5L RB20DET RB25DET engine; For some R33 model, few modifcaiton may be needed, please check the details before purchasing.
For RB20 / RB20E / RB20ET / RB20DE / RB20DET / RB20DET-R / RB20P / RB20DE NEO / RB25DE / RB25DE NEO / RB25DET / RB25DET NEO Engine
For some R33 models few modifications may be required(A direct Bolt on turbo upgrade for RB20DET and RB25DET for Skyline Engines!
Will require a coupler to connect turbo to hotpipe but other than that its a OEM Bolt on with upgrade 3\" air inlet and larger wheels for optimum power. Size:
CompressorTrim: 48.1
CompressorInducer Diamter: 52.7 mm
CompressorExducer Diamter: 76mm
CompressorA/R: 0.5
Turbine Size:
Turbine Inducer Diameter: 64.4mm
Turbine Exducer Diameter: 47.9mm
Turbine Trim: 55.3
Turbine A/R: 0.63
Exhaust (Turbo Manifold) Flange: T3 flange
Exhaust Outlet Flange: 6 bolt Flange
Cooling Type:Water Cooled
Horse Power:Boost Horse Power up to 500 BHP
Bearing Type:Journal Bearing
Accessories:You will get exactly as picture shown
Oil Inlet:M12*1.25 , Side hole: 2*M8*1.25
Oil Return: 18 , Side hole: 2*M8*1.25 , Center-center: 50.8
Water Hole:M18*1.5
Internal Wastegate: Material
1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance
*Product Features
1. Cost-effective turbo increase 20-40% power for your car
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
4. Built for Thermal Stability and strength
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
3. Advanced Actuator Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Gasoline car must install a water cooling device to avoid overheating.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
