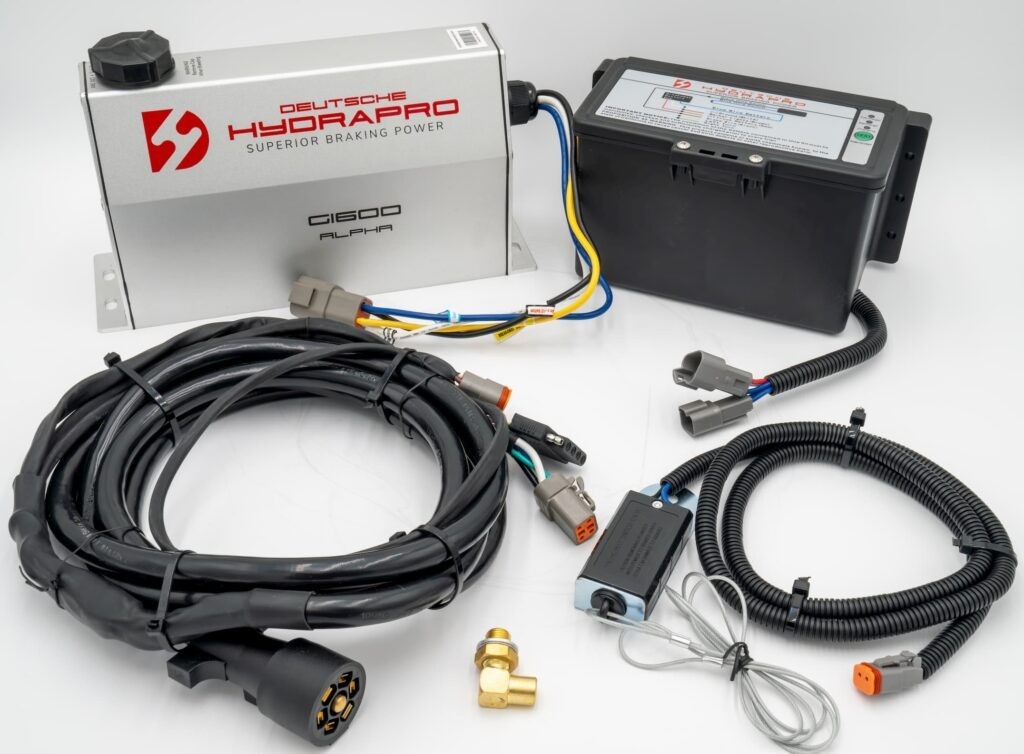

Deutsche Hydrapro Plug&Go EOH Harness Kit with 1,600psi Actuator for Disc Brakes For Sale - New and Used

At Deutsche Hydrapro, we understand the demands of North American road conditions, and that's why we're proud to offer the Plug & Go EOH Harness Kit. As pioneers in the trailer braking industry, our mission is to deliver safety, efficiency, and groundbreaking innovation.

Best used withDISC BRAKES
Available for Alpha G-1600 & Alpha G-1600X

Deutsche Hydrapro Plug & Go EOH Modular Harness Kit Features:

• Complete Modular System:Designed as a comprehensive solution, our kit includes everything needed for a quick and straightforward setup.
• 1600psi EOH Brake Actuator:Experience superior control with our high-pressure actuator tailored for optimal braking performance.
• 10.5ft Wiring Harness with 7-Pin Connector & 5-Pin Flat Plug:Ensures a reliable connection for both your trailer brakes and lights without the need for complex hardwiring.
• 10ah Breakaway Battery & Switch:Enhances safety with a dependable power reserve that ensures functionality even in emergencies.
• This electric over hydraulic brake actuator has an in-built compatibility adapter, so no external compatibility device is necessary.
• High-powered DC motor and quality pump with minimal moving parts.
• Weatherproof, anodized alloy case protects components from external elements (such as saltwater, extreme temperatures, and poor road conditions).
• Meets all IP67 requirements.
• Anodized, T6-grade extruded alloy housing protects from different environments and has a great aesthetic design.
• Independently sealed fluid tank.
• Conformal coating on the circuit board is designed to provide extra protection from moisture.
• Two-year warranty.
• Designed & Assembled in Australia.

Specifications:

• Model: Alpha G-1600 EOH brake actuator
• SKU: G1600-Alpha
• DOT Compliant
• Trailer Mounted
• Application: Single and tandem axle trailers with disk brakes
• Distance between mounting holes: 10.95” & 1.38” (278mm & 35mm)
• Mounting Hole Diameter 1.2cm x 0.8cm (12 x 8 mm) slot
• Hydraulic Port Size: 3/16 inverted flare (standard brake line fitting)
• DOT 3 & DOT 4 Brake Fluid Compatible (Do not use Super DOT 4 or DOT 4+)
• Fluid Capacity of 15.7 oz
• Power: 12V DC (min 30 amp circuit)
• Max Current Draw at full pressure approximately 18-24 amps.
• Wire Configuration:
  • Black: 12-volt power
  • Blue: brake controller
  • Yellow: breakaway
  • White: ground
• Wire Gauge Recommendation
  • A minimum of 10 gauge on black and white
  • A minimum 12 gauge on blue and yellow
• Dimensions:
  • Length: 10” (255mm)
  • Height: 6” (152mm)
  • Width: 3.6” Base / 1.7” Top (90mm Base / 44mm Top)
  • Mounting centers: 10.9” L and 1.6” W (275mm and 40mm)

---
