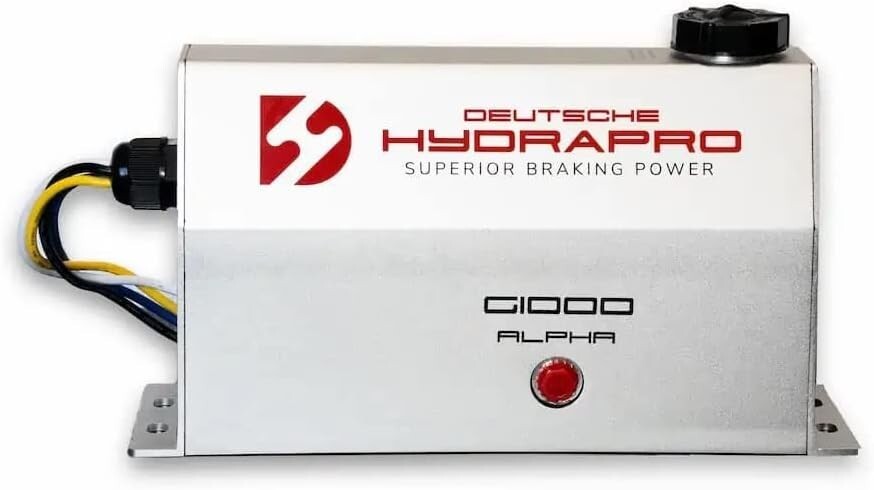

Deutsche Hydrapro Alpha G1000 (1000psi) Brake Actuator for Trailer Drum Brakes For Sale - New and Used

TheAlpha G-1000 electric over hydraulic brake actuatoris the perfect combination of style and durability. This top-quality brake line fitting stands up against challenging conditions so that you can rely on it for exceptional performance. With its compact design, installation is easy, and the 360-degree movement capability of the brake line fittings means you can connect your brake line from any mounting position. Get the best of both worlds with the Alpha G-1000 style and reliability in one sleek package.

Features:

• This electric over hydraulic brake actuatorhas a high-powered DC motor and quality pump with minimal moving parts.
• Weatherproof, anodized alloy case protects components from external elements (such as saltwater, extreme temperatures, and poor road conditions).
• Anodized, T6-grade extruded alloy housing protects from different environments and has a great aesthetic design.
• Independently sealed fluid tank.
• Conformal coating on the circuit board is designed to provide extra protection from moisture.
• Two-year no-hassle warranty.

Specifications:

• Alpha G-1000, electric over hydraulic brake actuator
• DOT Compliant
• Trailer Mounted
• Application: Drum brakes for single and tandem trailers
• Distance Between Mounting Holes: 10.95” & 1.38” (278mm & 35mm)
• Mounting Hole Diameter 1.2cm x 0.8cm (12 x 8 mm) slot
• Hydraulic Port Size: 3/16 inverted flare (standard brake line fitting)
• Dot 4 Brake Fluid
• Fluid Capacity of 15.7 oz
• Power: 12V DC (min 30 amp feed)
• Max Current Draw at full pressure approximately 18-24 amps.
• Wire Configuration:
  • Black: 12-volt power
  • Blue: brake controller
  • Yellow: breakaway
  • White: ground
• Wire Gauge Recommendation
  • A minimum of 10 gauge on black and white
  • A minimum 12 gauge on blue and yellow
• Dimensions:
  • Length: 10” (255mm)
  • Height: 6” (152mm)
  • Width: 3.6” Base / 1.7” Top (90mm Base / 44mm Top)
  • Mounting centers: 10.9” L and 1.6” W (275mm and 40mm)

---
