Premium 16-gauge steel construction of both tubing and mufflers to provide long lasting performance, Each tube is expanded on one end to allow easy slip fit installation, 2.5\" mandrel bent tubing is full size throughout the bend for maximum flow and increased power, Two chamber mufflers with twin baffles to reduce drone and interior noise while maintaining a deep powerful tone, Mufflers are offset inlet and center outlet configuration to fit a variety of muscle car and hot rod applications DIY Universal Hot Rod Dual Exhaust System Kit w/ Mufflers, 2-1/2 Sku # 91013825 Mfr. Part # 91013825 Condition New Brand Speedway Motors Sold Kit Details Info
- 2-1/2-inch 16-gauge mild steel tubing with .065-inch wall thickness for easier welding
- Mandrel bent tubing maintains inside diameter throughout exhaust pipe flow path
- All tubing can be cut and easily welded at any bend radius due to mandrel bending process
- Oil coating applied to prevent corrosion after manufacture that delivers clean, ready to weld tubing
- Once cut and welded it is recommended to use high-heat paint or ceramic coating to protect exhaust
- Each tubing piece includes an expanded end for easy slip-fit installation

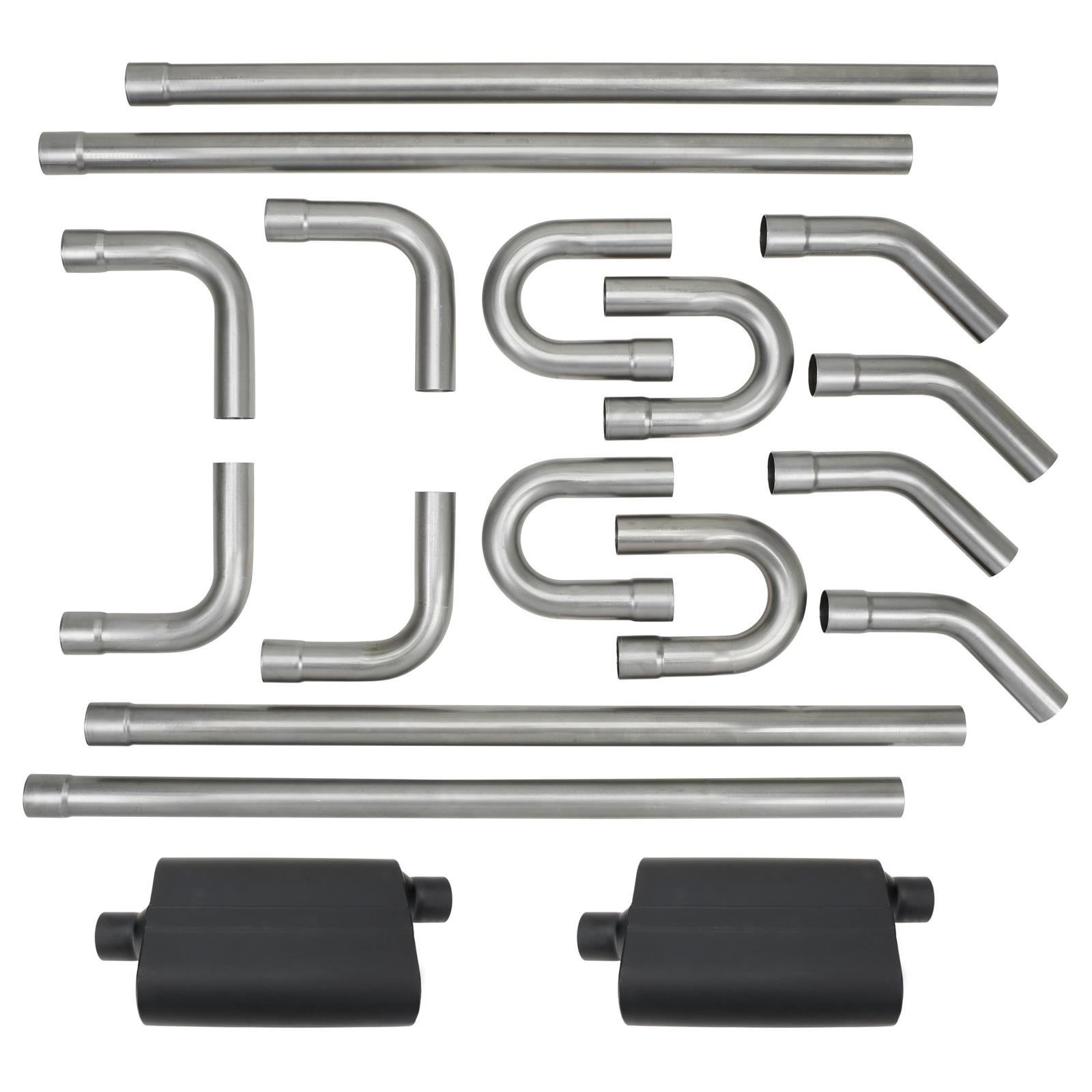

- Complete universal dual exhaust kit includes 16 pieces of tubing to build a complete custom exhaust system
- Dual exhaust kit includes 16-gauge welded steel two chamber mufflers in high-temp black coating
- Clamps, hangers, or finished tailpipe tips are not included but available separately
- Bent exhaust tubing features a 3-3/4-inch bend radius on all pieces
Design Your Own Exhaust System with Our Complete Header Back Exhaust Kits
Many builders look at the exhaust portion of a project build with skepticism and disdain. It is normally one of those aspects of a project where you know it is going to entail delivering your project vehicle to an exhaust fabricator and having a complete header to tailpipe custom exhaust system built at great expense. It is even more fun when you do not own a truck and trailer to transport said vehicle yourself too! However, we are here to tell you that you can indeed fabricate your own custom exhaust right in your home garage or workshop with ease using one of our complete mild steel dual exhaust pipe kits we offer here at Speedway Motors. All it takes is a welder, something to measure and cut the piping with, and a little bit of exhaust pipe system routing forethought to accomplish.
Heavy Wall 16-Gauge Tubing for Easy Welding and Fabrication
We start by spec’ing .065-inch thick 16-gauge mild steel tubing for our mandrel bent exhaust pipe kits. This steel is easier to weld by far when compared to standard 18-gauge steel normally used for exhaust tubing. The thicker gauge material provides “forgiveness” when welding if your welding machine settings are not spot on, making it easier for novices with basic 110-volt MIG welders to weld up the perfect custom exhaust system. We provide four 46-inch lengths of straight pipe for the main exhaust pipe run along with four lengths of each bend type: 90-degree, 45-degree, and 180-degree U-bends. These bends allow you to fabricate the optimum dual exhaust system routing around crossmembers and over your vehicle’s rear axle simply by measuring, cutting, and welding the bend sections as required.
Welded Two-Chamber Mufflers Included for That Classic Sound
Our mild steel universal dual exhaust pipe kit utilizes 2-1/2-inch exhaust tubing and ships with our matching two-chamber welded steel mufflers. These mufflers feature an offset inlet with center outlet design and have a case dimension of 13-inches long, 9-3/4-inches wide, and 4-inches thick. Including the inlet/outlet bushings these mufflers are 19-inches long. These welded two-chamber performance mufflers provide that great classic deep aggressive exhaust note we all love while minimizing interior drone that can ruin your road trip. The twin baffle design creates a scavenging effect to help pull the exhaust through the muffler, increasing horsepower and torque. Constructed of 16-gauge steel, the case and internal steel baffles are full welded, meaning there is no internal packing material to burn up or blow out, so your exhaust sounds the same on day 1 as it does many years down the road. You can also find exhaust installation accessories including and on our site.
Extra Exhaust Tubing is Just a Call or Click Away
Sometimes we measure twice, cut once, then cut again, and still come up with the short end of the stick, or in this case, exhaust pipe. Have no fear, Speedway Motors offers individual replacement angle tubing and additional lengths of straight tubing in case you have a project with a long wheelbase like a station wagon, panel van, or other unique scenario. If you know what you need you can order these along with your hot rod DIY exhaust kit, otherwise, know these parts are ready to order to get you fixed back up and your exhaust project finished in no time if you make a mistake with your exhaust fabrication.
Extra Exhaust Tubing is Just a Call or Click Away
Sometimes we measure twice, cut once, then cut again, and still come up with the short end of the stick, or in this case, exhaust pipe. Have no fear, Speedway Motors offers individual replacement angle tubing and additional lengths of straight tubing in case you have a project with a long wheelbase like a station wagon, panel van, or other unique scenario. If you know what you need you can order these along with your hot rod DIY exhaust kit, otherwise, know these parts are ready to order to get you fixed back up and your exhaust project finished in no time if you make a mistake with your exhaust fabrication.
Specs Sold in Quantity Kit Mount Type Universal Hardware Included No Mandrel Bent Yes Wall Thickness .065 Catalytic Converter(s) Included No Single or Dual Dual Muffler Quantity 2 Muffler Outlet Diameter 2.5 Muffler Inlet Diameter 2.5 Tailpipe Diameter 2.5 Inlet Quantity Single MFG. Part # 91013825 Exhaust System Type Header-Back Sound Level Aggressive Exhaust System Material Mild Steel Exhaust System Finish Natural Exhaust Pipe Color Natural Muffler Connections Single Inlet | Single Outlet Muffler Type Chambered Muffler Color Black Muffler Body Height 4 Muffler Body Length 13 Muffler(s) Included Yes Exhaust Tip Included No Muffler Finish High Temp Coated Muffler Material Mild Steel Muffler Body Width 9.75 Muffler Overall Length 19 Exhaust Tubing Diameter 2-1/2 Inch Reviews Yes Rated by Bob on February 27, 2022
Summary: It's was everything I hoped for
Yes, I recommend this product.
I would by the product again. Rated by Red rebel on December 12, 2020
Summary: Installed 56 chev pickup worked Great
Pros: Excellent quality for a great price
Yes, I recommend this product.
yes Rated by Hank on December 11, 2020
Summary: build exhaust on 56
Yes, I recommend this product.
Just plain awesome!!! Rated by J Man on May 13, 2020
Summary: I used this for an LS swap on an older corvette and buying an exhaust would have cost me around $1k. The quality is great, and there will be stuff left over. Don't hesitate to buy this kit!!! I tig welded it all together and it came out flawless. All I suggest is to lower amperage on the bends as they are thinner (probably common on mandrel bent stuff). I had a little issue with blowout the first time I welded into a bend, once I adjusted my amperage though it went great.
Pros: High Quality Nice mufflers Plenty of pipes and bends
Yes, I recommend this product.
easy to use DIY Exhaust kit Rated by marlar on May 12, 2020
Summary: has everything you need to do a complete exhaust on your vehicle
Yes, I recommend this product.
