tech support Johnny Law Motors brings you the vey best in aftermarket and OEM car and truck parts and accessories. We offer a HUGE selection of the top brand products at the lowest prices. The only thing that beats our low prices is our great customer service. We are here to help you build your ride with the best parts and service in the industry. So hit the buy it now button and learn why once you order from Johnny Law Motors, you will never order from anyone else again!.Zirgo High Performance Toyota Corolla Adjustable 12 Fan Cooling System Kit 12VSku # 3106A3ConditionNewBrandZirgo High Performance Cooling ProductsUnit Of Measure1

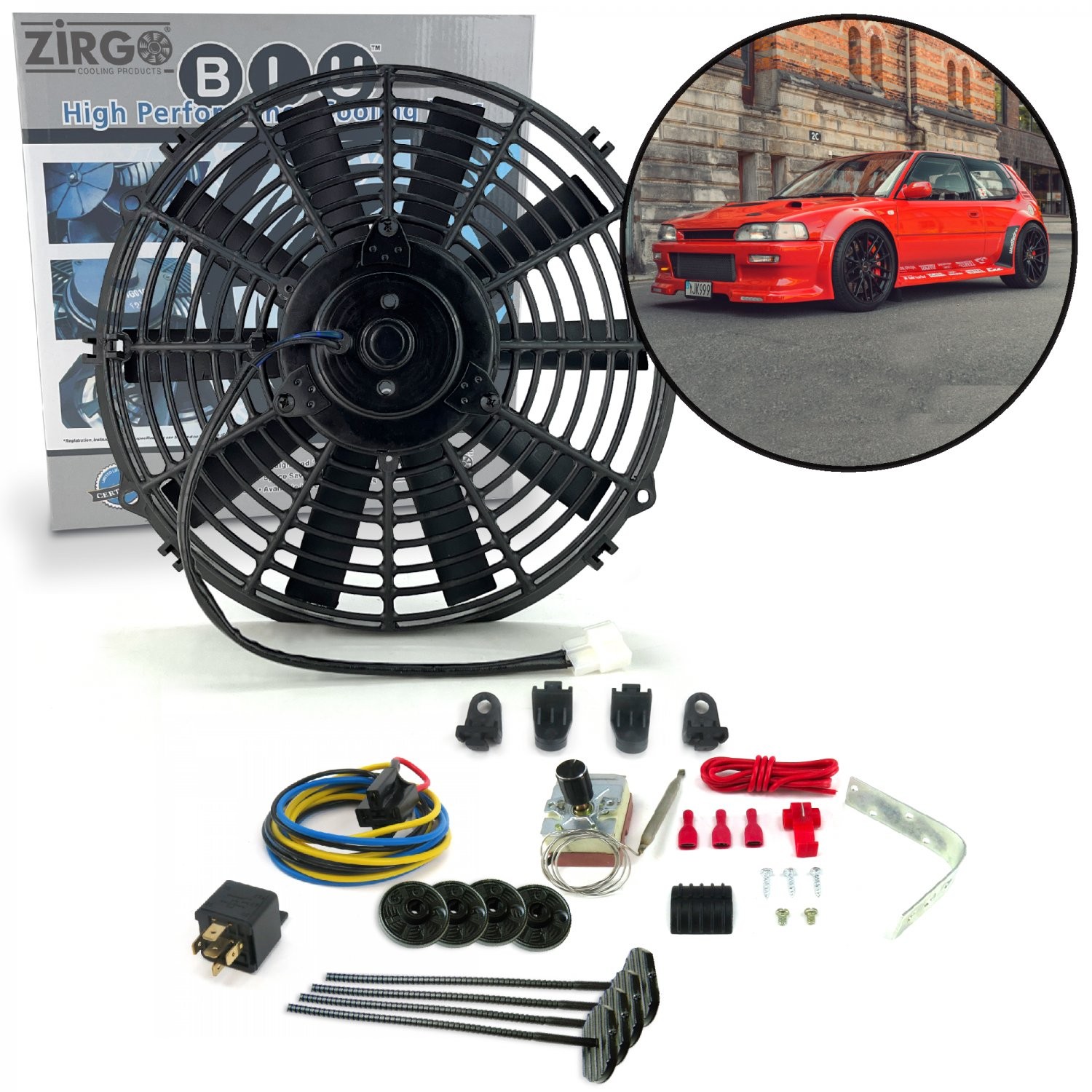

Reference part number: JLM 3106A3Product DescriptionThis kit contains everything you need to install and control the Zirgo fan in your Toyota Corolla. You can control what temperature turns on the fan by adjusting the dial on the thermostat. Installation is a breeze with our included Plug-N-Play Relay.Zirgos Cooling Fans Represent The Ultimate in Cooling Technology. Zirgo high-torque fan motors feature sealed ball bearings and fully balanced blades which ensure low noise levels, smooth operation and a long life. INCLUDES:
- 12\" 1248 fCFM High Performance Straight Blade Fan (1)
- Fan Feet Mounting Brackets (4)
- Adjustable Temperature Sensor/Switch (1)
- 40 Amp Relay (1)
- Relay Harness (1)
- SureLoc Fan Ties (4)FAN FEATURES:
- 1248 fCFM- Black Finish
- Straight Balanced Blades
- ULTRA SLIM Profile
- Sealed Ball Bearing High-Torque Motor
- Quiet Motor
- Reversible
- 6 Mounting Location Options
- 4 Mounts/FeetADJUSTABLE TEMPERATURE SWITCH FEATURES
Adjustable
Measures Fluid Temperature
Range = 180-240 Degrees (82.2-115.5 C)
Mounting Bracket Included
Water-Neck Leak Proof Hose Gasket
Hardware Included
Wiring Included
Accuracy to 5 DegreesTo ensure maximum performance, all Zirgo fans offer reversible blades allowing them to operate as pushers or pullers. Zirgos four foot mounting brackets & ULTRA SLIM PROFILE ensures easy placement for maximum performance on your vehicles cooling system.Zirgos unique revolutionary motor designs offer low amp draw and are easily removed from the cage which provides trouble-free future performance upgrades.Zirgos Ultra Thin Design and Unmatchable Performance, along with a Limited Lifetime Warranty, make Zirgo the Optimal Fan for Performance Vehicles. We also offer Detailed Instructions and FREE LIVE USA Technical Support. Let Zirgo high performance cooling fans cool you down, when you heat up!
---------- :: ZIRGO COOLING KIT FOR TOYOTA COROLLA
Blade Size :: 12\"
Blade Style :: Straight Balanced Blades
Ultra Slim Profile :: Yes
Motor :: Sealed Ball Bearing High-Torque
fCFM :: 1248
Mounts/Feel :: 4
Total Thickness :: 2.5\"
Height/Width :: 12.5\"
Foot to Foot Max Width :: 13.62 Hole to Hole
Quiet Motor :: Yes
Thin Design :: Yes
---------- :: ADJUSTABLE TEMPERATURE
SWITCH
Range :: 180-240 Degrees (82.2-115.5 C)
Mount :: Water-Neck or Between Radiator Fins
Case :: Metal
Adjustable :: Yes
Hardware :: Included
---------- :: RELAY
Peak Amps :: 40
Style :: SPDT (Single Pole, Double Throw)
Terminals :: 5
Terminal Type :: Blade
Contact :: Brass
Power Consumption :: Low
Low Heat :: Yes
Water Resistant :: Yes (Sealed Case)
Harness :: Included
---------- :: OTHER
Fan Ties :: SureLoc - Included
Fan Harness :: Included
Warranty :: Limited Lifetime Warranty. .
