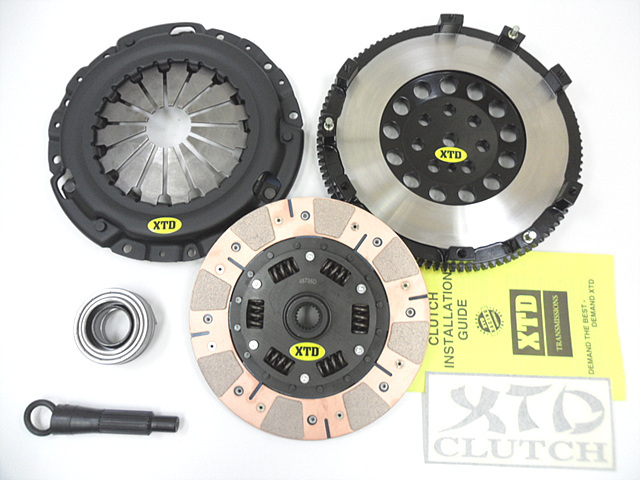

XTD DUAL MULTI FRICTION CLUTCH + 11.5LBS CHROME-MOLY FLYWHEEL KIT Aimco Clutch Co. • Los Angeles, CA • Since 1996 • Please message us through for fitment help ✅ DUAL MULTI FRICTION ⚙️ 11LBS CHROME-MOLY FLYWHEEL 🔩 SPRUNG DISC 🚚 FAST SHIPPING 🛡️ WARRANTY INCLUDED PRODUCT PHOTO Please verify year / model / engine / drivetrain before purchase. If you are unsure, message us first. QUICK SPECS Package Clutch + Flywheel Kit Clutch Type Dual Multi Friction Disc Type Sprung Multi Friction Disc Pressure Plate XTD Extreme 2300LBS Pressure Plate Flywheel Pro-Lite Chrome-Moly Flywheel Flywheel Weight 11 LBS Break-in 500 miles required Warranty 6 Months / 12,000 miles (manufacturer defect) ✅ WHAT’S INCLUDED • XTD EXTREME 2300LBS PRESSURE PLATE
• XTD DUAL MULTI FRICTION DISC
• THROW OUT CLUTCH BEARING
• ALIGNMENT TOOL
• XTD 11.5LBS PRO-LITE CHROME-MOLY FLYWHEEL
• XTD CLUTCH INSTALLATION GUIDE
• XTD LOGO DECAL DESCRIPTION The XTD dual multi friction disc system distributes pressure plate clamping force evenly over a 360-degree friction facing on one side of the clutch disc, while the opposing side uses a segmented friction facing to maximize clamping pressure and increase clutch holding capacity. This combination of dual configured friction facings and heavy-duty pressure plate creates a strong clutch system engineered to shift smoothly and extend clutch life while maintaining excellent grip. XTD DUAL MULTI FRICTION CLUTCH Multi Friction is engineered for drivers looking for strong street / strip holding power and performance without sacrificing pedal effort and driver control. While primarily designed as a street clutch, it may also be used in mild competition applications. The sprung retainer assembly features heat treated dual springs and severe duty retainer rivets for power and reliability. KEY FEATURES
• XTD specifically designed high torque disc for maximum holding capacity
• HD pressure plate with increased clamp load
• Smooth and precise feel with easier modulation than aggressive race discs
• Induction hardened diaphragm and CNC machined castings
• Stronger drive straps and rivets
• 500 miles break-in required
• Pressure increase approx. 25%
• Torque capacity approx. 305 ft/lbs
• Hold up to approx. 369 HP
• Professional installation recommended XTD 11.5LBS PRO-LITE CHROME-MOLY FLYWHEEL XTD Pro-Lite flywheels are manufactured using high quality chrome-moly material for improved strength, durability, and throttle response. By reducing excess rotational weight, engine inertia is reduced and the engine responds more quickly. Each flywheel is engineered for optimal balance, lightness, and strength. BENEFITS
• For highly tuned engines designed for racing environments
• Lightning fast catch and extremely lightweight design
• More responsive acceleration and torque feel
• Stronger than stock cast iron, billet steel, or aluminum flywheel designs
• Much lighter than stock steel flywheel
• Made from high quality materials and CNC machined
• Reduced rotating mass may help reduce stress on engine internals
• Wholesale price offered to buyers Important: Please verify your exact vehicle setup before ordering. Swapped or modified vehicles may require additional fitment confirmation. APPLICATION / FITMENT (PLEASE READ) • 1993- 1999 Mitsubishi Eclipse GSX(2.0L Turbo / AWD / 7-bolt crank)
• 1983 -1998 Eagle Talon TSi Turbo(2.0L Turbo / AWD / 7-bolt crank)
• 1993 - 1994 Plymouth Laser RS Turbo(2.0L Turbo / AWD / 7-bolt crank) SHIPPING Insurance included • Please message us for special shipping areas / quotes US 48 States (Domestic) – UPS Ground or USPS Priority Mail FREE for 48 lower states (HI, GU, PR, AK contact us for quote) AK / HI / GU / PR / VI / PO BOX / Military APO & FPO – USPS Priority Mail FREE for 48 lower states (HI, GU, PR, AK contact us for shipping quote) Canada – UPS Standard $30.00 International – USPS or UPS Express Please message us for shipping and handling fee Insurance Included PAYMENT PayPal / Credit Card via checkout • For international buyers, payment is handled by . Payment Options PayPal or Credit Card Shipping / Handling FREE for 48 lower states Insurance Included Shipping Options UPS Ground / UPS Air / USPS Priority Mail / USPS Air Mail Sales Tax Collected by where required CONTACT / TECH SUPPORT Tech Support or Questions? Please send us message through .
