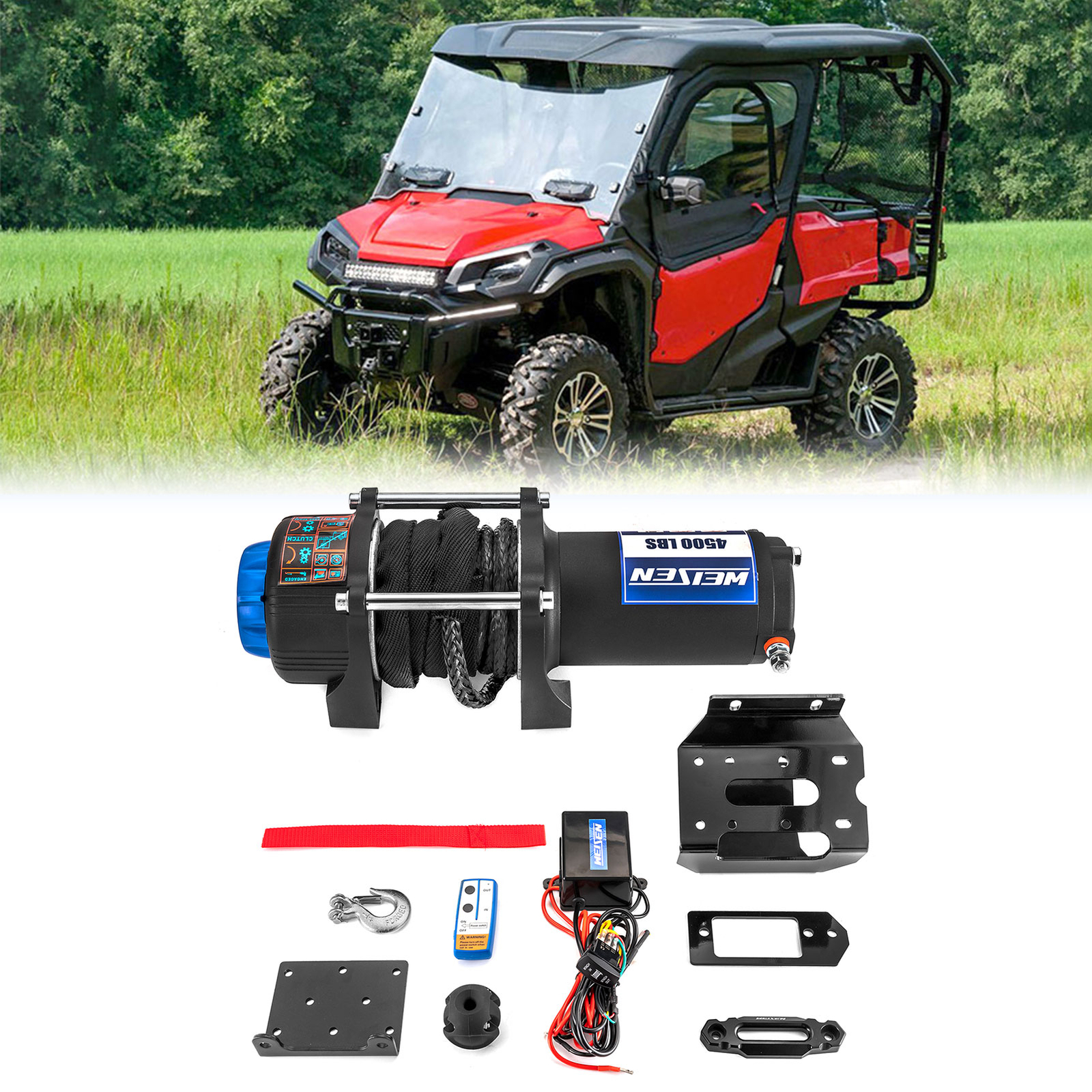

Can Am DefenderCan Am Outlander/OtherHondaYamaha Rhino/Wolverine/otherKawasakiOther PartsWEISEN UTV 4500lb 12V Electric Winch Mount Kit For 2016+ Honda Pioneer 1000-5
Fitment List
2016+ Honda Pioneer 1000 (all Models Including the LE)
2016+ Honda Pioneer 1000-5 (all Models Including the LE)
2023+ Honda Pioneer 1000-6
Specifications
Winch Type：Electric
Voltage：12 Volt DC
Motor Type：Permanent Magnet Motor
Drive Gear Type：3-stage Planetary
Gear Reduction Ratio 180:1
Line Type：Synthetic
Line Diameter (in):1/4 inch
Line Length (ft)：32 ft
Hook Type：1/4 Inch Forged Steel
Line Stopper Type：Maximum Diameter 1/2 inch Quality Rubber Line Stopper
Fairlead Type：4 7/8inch Aluminum Hawse
Remote Type：Corded Remote With Rocker Switch + Wireless Remote Control With 100ft Control Range
Winch Mounting Bolt Pattern(in)：4 7/8 inch x 3 inch
Max Line Pull/ Line Speed：4500 pound/1.5 feet per minute
Max Amp Draw/ Line Pull：170 amps / 4500 Remote & Wireless Remote】
Included Rocker and Remote Switch for Wired/Wireless Control.
You can install the Rocker control directly to the stock holes in the dashboard without cutting or drilling, giving your dashboard a neat look. Or use the Remote Switch for wireless control. (Control remote ranges up to 100FT), and you don\'t have to touch the dangerous rope directly, making it safer and more convenient for daily use.
【Excellent Towing Performance】
Equipped with a 3-stage Planetary Drive Gear system and 180:1 gear speed ratio that delivers reliable pulling power with a weight capacity of up to 4500 lbs.
Its excellent water and corrosion resistance makes it stable and reliable, and it excels in towing tasks such as h pulling heavy loads, relieving stuck vehicles, and navigating challenging terrains.
【Durable Construction】
Made of 1/4\" 32FT Synthetic Line, compared to steel cables, it can withstand more traction, is lighter and safer, won\'t rust, won\'t burr, and is easy to use.
The 4 7/8\" Hawse Fairlead is a heavy-duty 6061 aluminum material + an anodized black process which is rust-resistant and corrosion-proof.
It can withstand harsh weather conditions and rough terrain and keep working normally.
Sold As Whole Set
Package includes all needed parts:
1 x 4500lbs Electric Winch
1 x Winch Mounting Bracket
1 x Fairlead Mounting Bracket
1 x 4 7/8\" Aluminum Hawse Fairlead
1 x 1/4\" Synthetic Line
1 x 1/4\" Forged Steel Hook
1 x Line Stopper
1 x Rocker Switch(Corded Remote)
1 x Wireless Remote Control
1 x Installation Instructions
It saves you time and hassle on purchasing, you could use it directly.
