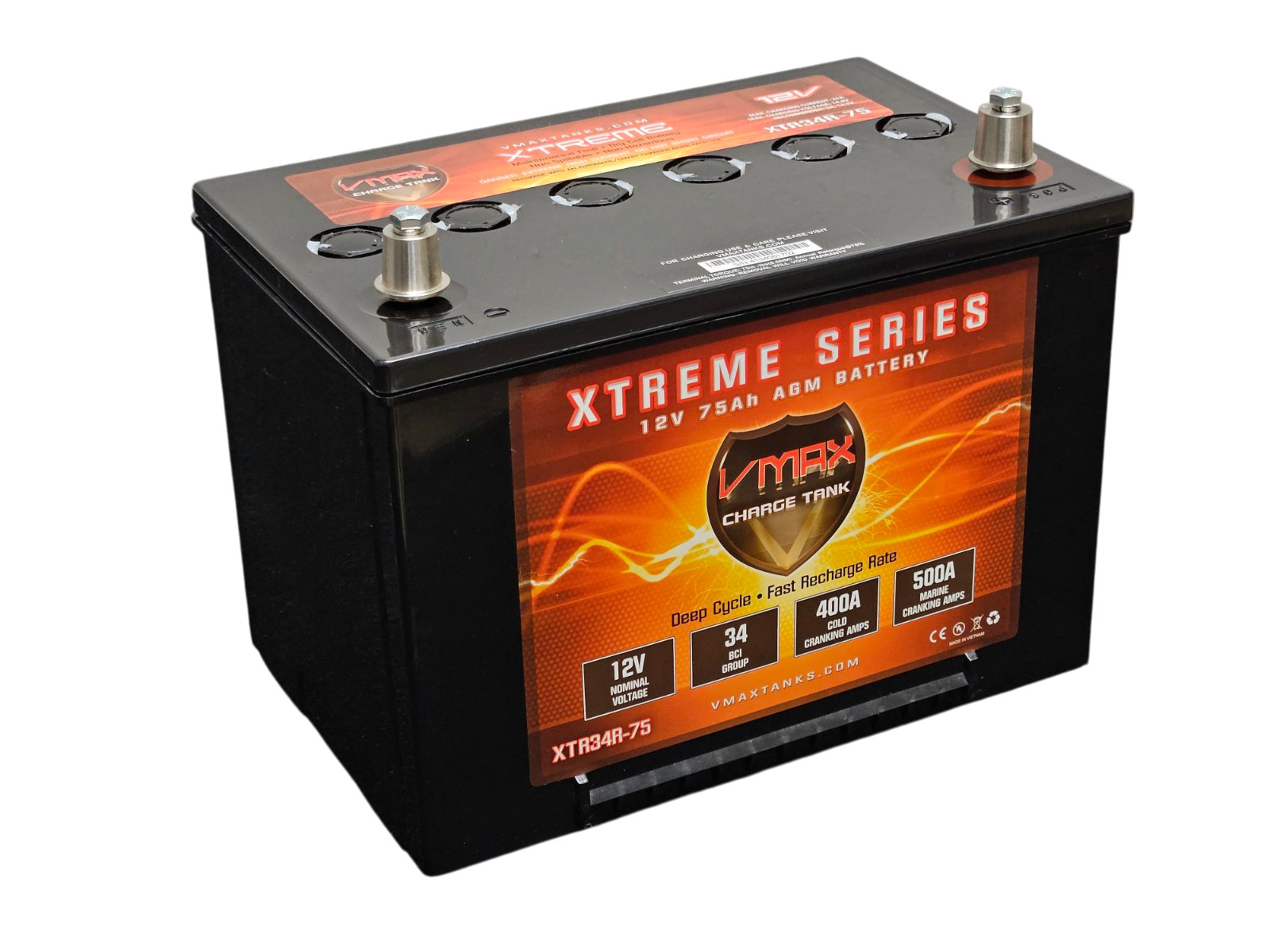

XTR34R-75
- Nominal Voltage:12V
- 20-Hour Capacity:75AH
- Cold Cranking Amps (CCA):400A
- Marine Cranking Amps (MCA):500A
- Terminal Posts:6mm Hex Screws (included)
- Dimensions:
- Width: 10.2 inches
- Depth: 6.6 inches
- Height: 7.0 inches
- Total Height (including terminal posts): 7.2 inches
- Weight:42.5 lbs
- Charging Specifications:
- Charging Current:5A to 20A
- Charging Voltage:14.4V to 14.9V
- Float Voltage:13.5V to 13.8V
- Recommended Charging Options:
- AC Chargers:Any quality brand AGM-smart and microprocessor-controlled charger with the recommended specifications.
- Vehicle Alternator:14V to 15V
- RV Converter:14V to 15V
- Solar Panel:135W to 350W
- Wind Turbine:135W to 350W
- Charge Controller:15A and up
- Operating Temperature Range:
- Discharge:-4°F to 140°F
- Charge:14°F to 140°F
- Storage:-4°F to 140°F
- Temperature Compensation:
- Cycle Use:-30mV/°C
- Standby Use:-20mV/°C
- UPC:804879288152
- BCI Group Codes:34 (+ on L.H.S. & - on R.H.S)
- Additional Feature:The XTR34R-75 features a mounting tab on the front of the battery.
Recommended Charging Options:
- AC Chargers:Any Quality Brand AGM-Smart & Microprocessor controlled- charger with the recommended specs above can be used.
- Vehicle Alternator: 14V-15V.
- RV Converter: 14V-15V.
- Solar Panel: 135W-350W.
- Wind Turbine: 135W-350W.
- Charge Controller: 15A-UP.
* Warning: Do not use a charger with smaller amperage than the recommended Charging Current shown above.
Maintainers should ONLY be used to maintain a fully charged battery but NEVER as a charger.
**Total Height including terminal post.
Operating Temperature Range:
- Discharge: -4~140F
- Charge: 14~140F
- Storage: -4~140F
Temperature Compensation:
- Cycle use:-30mV/C
- Standby use: -20mV/C
UPC: 804879288152
BCI Group Codes*:
Matching Termination: 34R (+ on R.H.S. & - on L.H.S)
The XTR34R-75 features a mounting tab on the front of the battery.
