Specification:
Condition: Brand New
Type: Trailer Axle Spindle Hub Kit
Warranty: 1 Year
Fitment Type: Direct Replacement
Bolt pattern: 8 × 6.5 Lug
Wheel Size: 8 Inches
Capacity: 8000 lbs
Material: Carbon SteelFeatures:
A 40ft High cuboid container weighs 8,775 lbs. The 40ft Standard container weighs 8,000 lbs. Both the 40ft High cuboid container and 40ft Standard container have a Maximum Gross Weight (weight of container and the cargo inside) of 67,200 lbs. So, the quick attach wheels on an end will be supporting about 4,378 Lbs.
A 20ft container weighs 3,970-4,850 lbs.

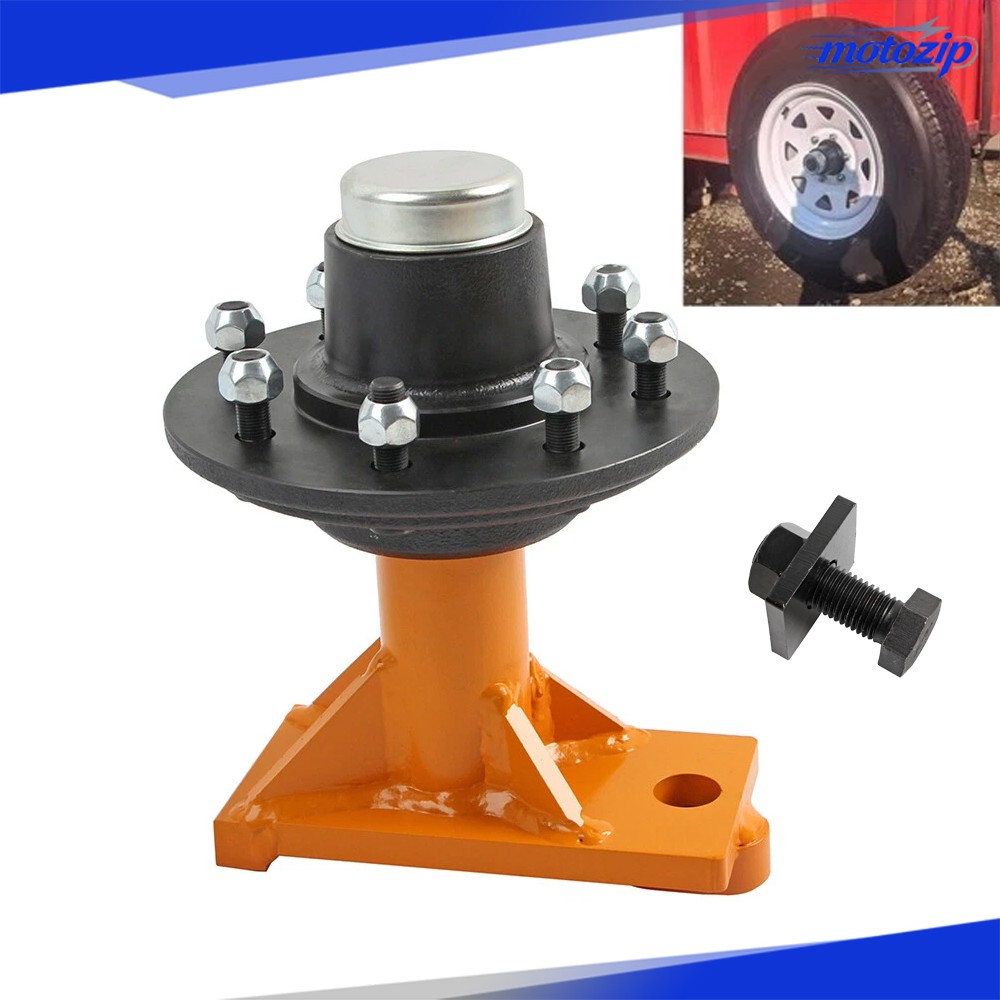

Need to move your shipping/storage container to a new location? These container wheel lug kits are your fastest and easiest solution by quickly installing an Idler Hub Spindle into the bottom corner of a shipping container. Just insert the Lug head into bottom corner castings of the container. These units are secured tightly and unable to rotate or become disconnected while in use yet can be disassembled quickly.
All units are assembled in confidence by our Welders. Following approved weld procedures. These units fallow Related Guide lines in their design for engineering. Units are designed so when the weight of the container is on the lug. The lug in the keyway is unable to rotate due to flat surfaces making contact.
All assemblies are designed with vertical, and diagonal supports to the lug and the spindle. (Imitator’s Secure their design loosely in the ISO sipping container lugs using hardware bolts and straps not designed for the intended purpose.
Our Assemblies are designed (With a Min. yield Strength of 57,000 PSI and a Min tensile strength of 74,000 PSI)
Frame and spindles are constructed of quality carbon steel solid materials.
These units are for non-public road use ONLY. Such as moving containers around a parking lot, Farm, or construction site for example. Operate at Low speeds. (They DO NOT contain a braking system)
While moving shipping container on location and using devices focus on safely / when reliably moving shipping containers.Package Includes:
8 × 6.5 Lug Shipping Container Wheel Hub & Spindle Kit w/o HandleOn Sep 8, 2026 at 19:34:59 PDT, seller added the following information:
