Part Brand: Turbosmart
Part Number: TS-0605-5072
Vehicle Fitment
- 1997–2007 Subaru Impreza WRX (EJ20/EJ25 2.0L/2.5L Turbo, AWD, TD04 Turbo)
- 2004–2007 Subaru Forester XT (EJ25 2.5L Turbo, AWD, TD04 Turbo)
Features
- High‑performance internal wastegate actuator with factory‑like boost base pressure
- Pre‑installed 7PSI (0.48BAR) base boost pressure spring
- IWG75 series with increased diaphragm area for improved working ratio
- Billet aluminum housing for enhanced structural integrity
- Proprietary Silicon Nomex reinforced diaphragm for heat durability
- Stainless steel actuator rod and clevis for corrosion resistance
- Turbosmart locking collar for secure and adjustable preload
- Engineered for responsive boost control and stronger torque at mid‑range RPM
- Optional spring upgrades available from 3–26PSI for tailored tuning
Specifications
- Part Number: TS‑0605‑5072
- Product Type: Internal Wastegate Actuator
- Series: IWG75
- Base Boost Pressure: 7PSI (0.48BAR)
- Compatible Turbocharger: Factory TD04 series
- Engine Compatibility: EJ20/EJ25 turbo engines
- Housing Material: Billet aluminum
- Diaphragm: Silicon Nomex reinforced
- Rod/Clevis Material: Stainless steel
- Mounting: Direct bolt‑on with supplied bracket and hardware
Included Components
- 1x Turbosmart IWG75 Internal Wastegate Actuator
- 1x Vehicle‑specific mounting bracket
- 1x Pre‑installed 7PSI spring
- 1x Swivel hose barb fitting
- 1x Hardware and fastener kit
Product Description

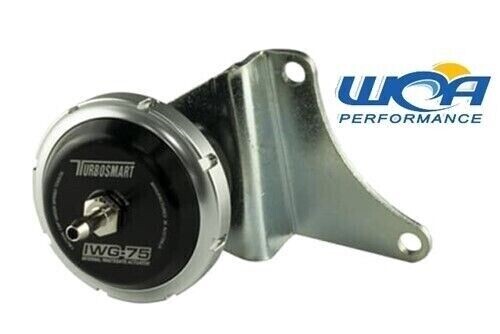

The Turbosmart TS‑0605‑5072 IWG75 Internal Wastegate Actuator is a performance‑oriented replacement designed to enhance wastegate control on Subaru models equipped with the factory TD04 turbocharger. With a 7PSI base spring installed, this actuator maintains similar boost levels to the factory unit while improving boost response thanks to the increased diaphragm surface area and optimized spring characteristics. The result is a more responsive boost curve with improved torque delivery and smoother acceleration through the power band.
Built with a billet aluminum housing, a reinforced Silicon Nomex diaphragm, and stainless steel rod components, the TS‑0605‑5072 delivers durability under high temperature and high‑pressure operating conditions. The locking collar system ensures the preload remains secure, and optional springs allow further customization for tuned builds. Installation is straightforward with the included vehicle‑specific bracket and hardware, making it a direct bolt‑on for 1997–2007 Subaru Impreza WRX and compatible Forester XT applications.
While this actuator retains a factory‑equivalent base pressure for street and mild performance applications, enthusiasts seeking higher boost levels should consider spring upgrades and appropriate ECU tuning to maintain safe air‑fuel ratios and boost control throughout the RPM range.
*Parts are for USA spec vehicles, please contact us to verify fitment on JDM & international models.
