Turbo Rebuild Kit Billet Wheel Unison Ring Vanes Turbine Shaft
The Components FoundIn DTPD Rebuild Kits Are Sourced From The World’s Leading Manufacturers. BuiltTo Exceed OEM Quality Standards. We Provide Exactly The Parts You Need For Your6.0L Powerstroke GT3782VA Turbo Rebuild. No More, No Less. This Is Not AUniversal Kit Fitting Several GT37 Models. This Kit Was Designed To CompletelyRebuild And Reinstall Your 6.0L Turbo. From Start To Finish.
These Kits WereOriginally Designed For Our High Performance Turbocharger Line. Offering Extended Service Life For All StageTurbos; Whether Your Diesel Is A Daily Driver With A Stock Turbo, A Well Tuned PowermaxFor Fun On The Street, Or A Purpose Built Drag Racing Truck For The Track. DTPDRebuild Kits Are The Best Option For Rebuilding Your 6.0L Turbocharger.
Fitment
6.0L 2005.5 - Early 2007 Ford Powerstroke Diesel F250, F350, F450, F550, E250, E350, E450, E550
2005.5-Style Garrett GT3782VA

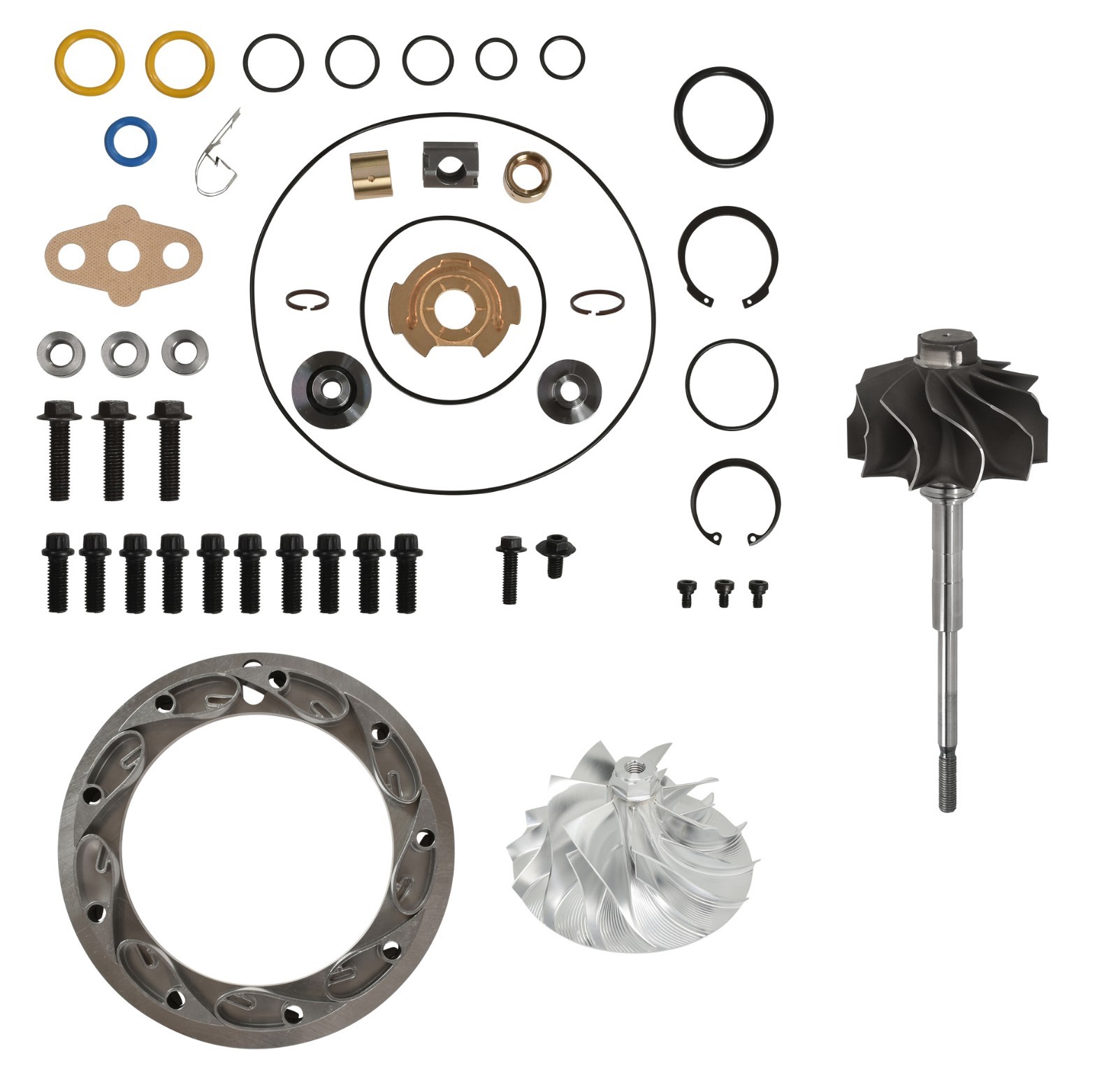

Contents
6.0L GT3782VA Rebuild Kit
·360 Brass Thrust BearingAnd Collar
·Journal Bearings
·Step Gap Oil Seals
·Compressor Housing InnerAnd Outer Seals
·10 Compressor HousingBolts
·VGT Actuator Rod CapO-rings And Snap Rings
·5 VGT Solenoid O-Rings
·Complete Install KitWith Gaskets, O-Rings, Hardware
Billet Compressor Wheel
Unison Ring With 9 Vanes
Turbine Shaft
Features
Improved Longevity In High Boost Applications, 5- 7 PSI Boost Increase, Eliminates Compressor Surge, Improved Performance AtHigh Boost Levels, Severe-Duty Journal Bearings and Thrust Collar
Billet Compressor Wheel Specs
Inducer/Exducer: 56mm/82mm
Blades Long+Short: 7+7
Unison Ring Vane Specs
Vane Height: 13.2mm
Turbine Shaft Specs
Blades: 10
The 05 Compressor Wheels And UnisonRing Vanes Are Too Small For 03-Style GT3782VA. Please Double Check Your TurboTag Number Before Purchasing.
Turbo Tag Numbers
OEM Originally Equipped
1832255C91, 1832255C91, 1832255C92, 1854593C91, 1877834C91,5010147R93, 5010399R91, 5010422R91, 5C3Z6K682DA, 5C3Z6K682CA
New Garret Aftermarket Replacement
743250-0014, 743250-0005
