Triangulated 4Link Rear Suspension w/350pound Coilover for1928-40 Ford Chevy GMC For Sale - New and Used

for Universal Rear Weld-On Triangulated 4 Link Suspension Kit with Two Air spring Bags & Rear Air spring Bag Mounts;
for Ford F150/F250, for GMC Sierra；
for Chevrolet Silverado;
for Dodge Ram 1500 2500 3500, etc;
Fits for Most Pickup Trucks, Hotrod, Ratrod or Classic Car

With 2.75" Axle Tube

NO air bag comes with this order.

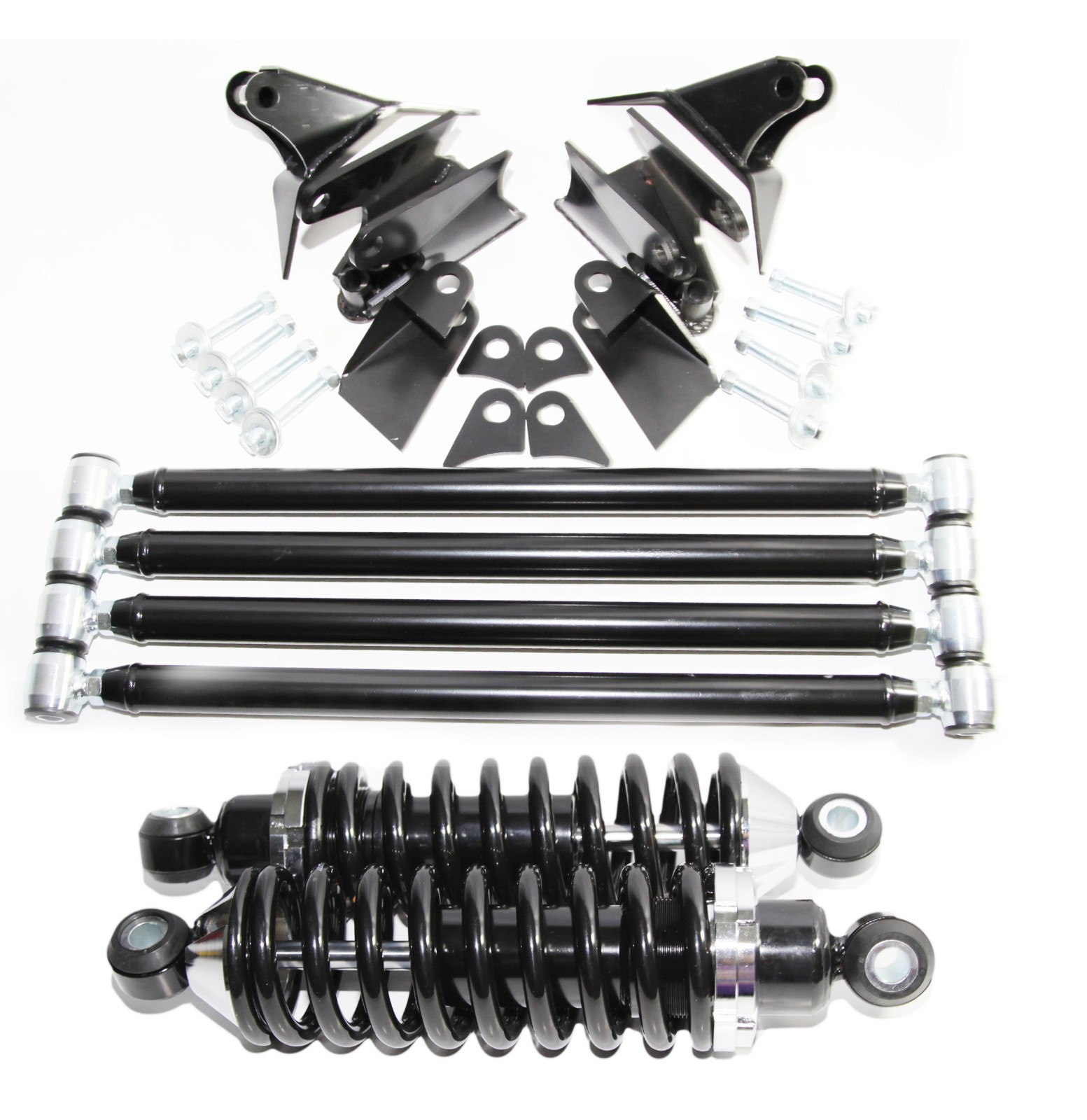

Package includes

4 xHeavy Duty Steel Bars
4 x Rod Ends W/ Urethane Bushings
2 x Weld-On Triangulated Frame Mounts
2 x Weld-On Lower Axle Tube Mounts
4 x Weld-On Center Link Axle Mounts
2 x Weld-On Side Frame Mounts
8 xButton Head Bolts with Nuts
2 x Rear Rod Coil Over Shock

100% Brand NEW, never used

4 Link Bar Dimensions:
Tubing Outside Diameter:1.25"
Tubing Thick Wall :156"
All Four Bars :24.00"
(Center To Center Adjusted All The Way In)

1 Pair Rear Rod Coilver Over Shock 350 Pound Spring

Polished top retainer

Urethane bushing

Black coated 180 pound rate springs

Bolt hole size 5/8" (0.625")

9/16" hardened shaft

14.5" open and 10.25" close adjustable shock centers

Exactly Same as the Picture

We offer 90 days warranty from the purchase date.

Professional Installer Is Highly Recommend(No Instruction Included)

• We do not answer messages on weekend, and we will reply all messages in the order it was receive.

• Only items have warranty statement posted on the product detail pages can be eligible for warranty claims.
• If a part was successfully installed, went into service, and then failed, it may be eligible for warranty replacement. You must report to us through our message within 14 days of the failure, we will issue a Return Merchandise Authorization (RMA) number. Parts that are covered by a manufacturer's or our Store's warranty may be returned for exchange for like product replacement. Refunds are not issued on warranty items.
• The customer is responsible for all freight charges incurred with the exchange. This includes the original freight cost to the customer.
• Only items authorized for warranty service that pass warranty inspection will be processed. Unauthorized customer warranties or warranty items that do not meet warranty criteria as stated by the manufacturer , or do not pass a warranty inspection will be denied and returned, if requested, at the customer's expense. Unclaimed denied warranty returns will be destroyed.
• We are only responsible for product replacement per the manufacturer warranty guidelines. No other responsibilities or warranties are expressed or implied.
• Buyer is required to follow our return policy for warranty claim.
