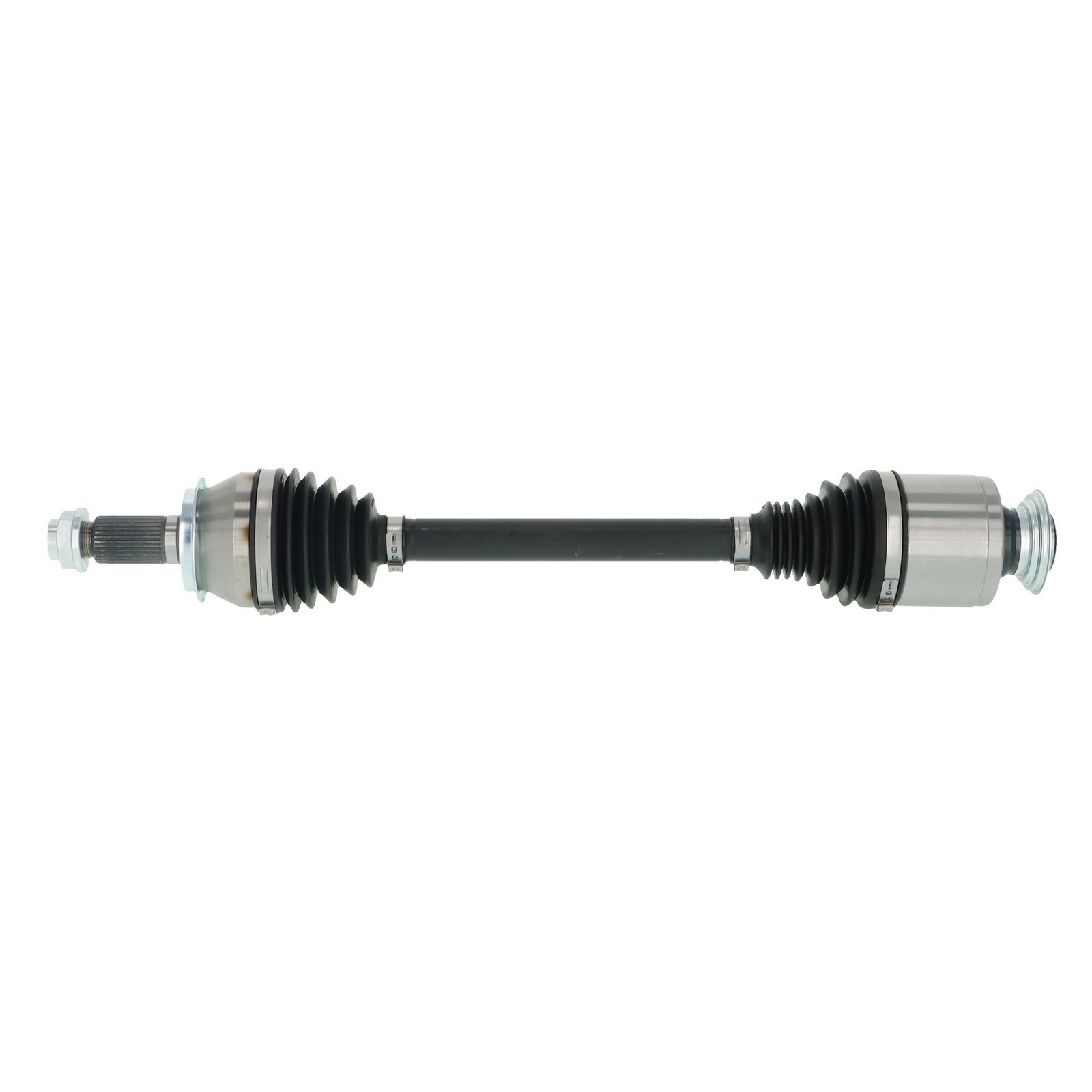

TrakMotive CV Axle Shaft for 2023-2025 Honda Civic HO-86097
Fitment RStandard Duty Replacement
Specifications:
Part Category: CV Axle Shaft
Brand: TrakMotive
Manufacturer Part Number: HO-86097
Vehicle Position: Front Passenger Side
Placement on Vehicle: Front Right
Label: CV Axle Shaft
Product Type: Factory Replacement
Type: CV Axle Shaft
ABS Ring Tooth Count: 0
ABS Tone Ring Included: No
Axle Nut Head Type: Hex
Axle Nut Height (in): 0.88
Axle Nut Height (mm): 23
Axle Nut Hex Size (in): 1.38
Axle Nut Hex Size (mm): 35
Axle Nut Included: Yes
Axle Nut Length (in): 1.56
Axle Nut Length (mm): 40
Axle Nut Locking Type: Stake
Axle Nut Thread Size: M26x1.5
Inboard Joint Boot Material: Thermoplastic
Inboard Joint Type: Female
Inboard Shaft Connection Style: Spline
Number Of Inboard Splines: 31-2t
Number Of Outboard Splines: 32
Outboard Joint Boot Material: Thermoplastic
Outboard Joint Type: Conventional
Outboard Shaft Connection Style: Spline
Overall Compressed Length (in): 25.06
Overall Compressed Length (mm): 637
Overall Extended Length (In): 27
Overall Extended Length (mm): 686
Interchange Part Number: HO-86097
All Interchanges: HO-86097
Brand Label: CV Axle Shaft
