Titanized Forged 4340 EN24 Connecting Rods for Suzuki 1.3L G13b Engine 4.724\"

All modifications must be installed by licensed mechanics and in compliance with your local modification



ARP Bolts

The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.

TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED

Titanizing Forged 4340 Steel

Titanizing has excellent corrosion resistance, and prolongs the service life of the parts.

H-Beam Design

H-Beam helps improve stiffness, reduce stress risers and weight.

Horsepower Rating

Advertised horsepower rating: 800HP+

High Precision Control

Balanced within:+/- 1 gram per rod,

Bores finished to:+/- .005mm or .0002\".

ARP 2000 Bolts

With Standard Original ARP 2000 Bolts.

Upgradable ARP L19 Bolts

Contact with us for ARP L19 which can hold a maximum engine speed of 12000 RPM.



  Application
For Suzuki 1.3L G13b Engine For Suzuki RS/1 (prototype) 1985- For Suzuki Cultus/Swift GTi AA33S/AA34S 1986–1994 Pin Type Floating Pin Piston Dimension
Center to center length 120mm/4.724\" Big end diameter 45mm/1.772\" Small end diameter 19mm/0.748\" Big end width 22mm/0.866\" Small end width 22mm/0.866\" Specification

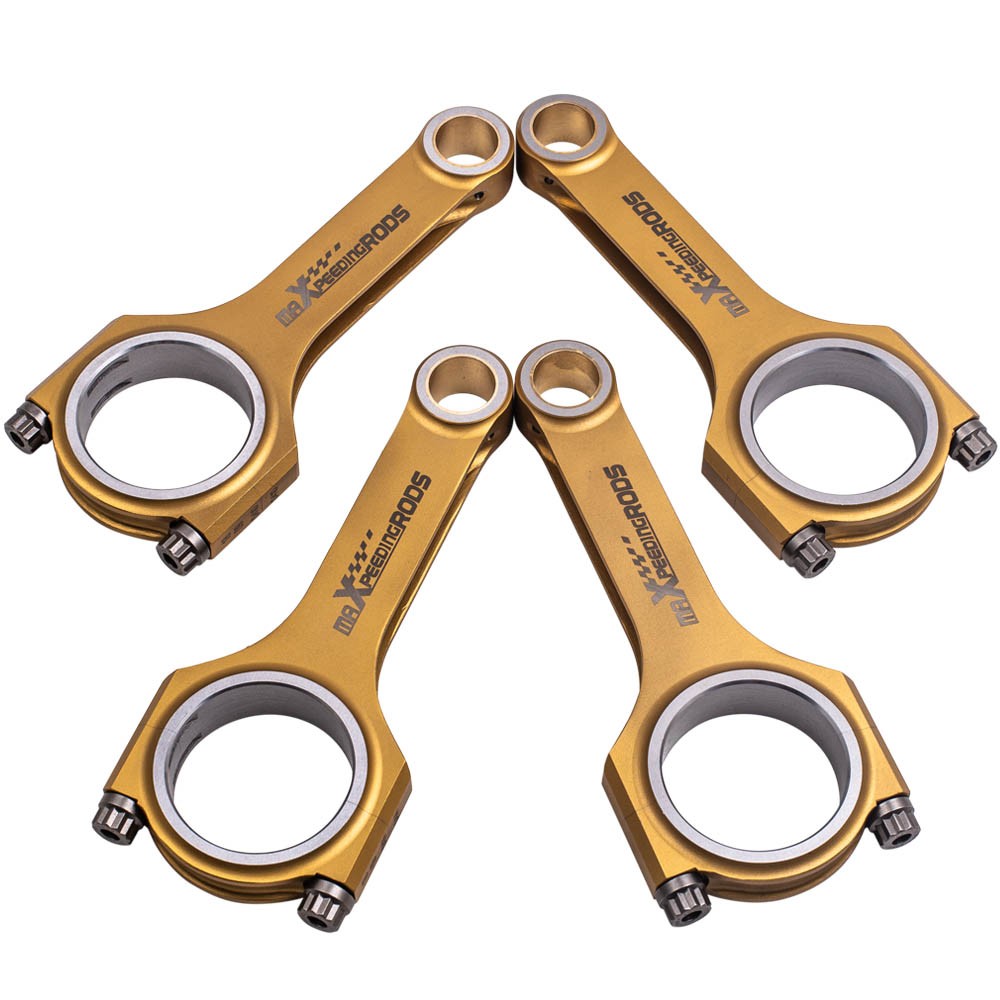

Quantity 4 Pieces as showing in picture Bolts Including ARP 2000 bolts Bolts Size ARP 2000 5/16\" bolts Bores finished to +/- .005mm or .0002\" Balanced to within +/- 1 g per rod Advertised Horsepower Rating 800HP+ Top acceleration 9000rpm Strength of the fastening PSI 220,000/230,000 PSI Torque: 48ft ≈ 65 NM Warranty 2 years warranty for any manufacturing defect Package size 28CM*21CM*10CM Feature

The density of titanium is significantly lower than that of steel, while maintaining considerable strength, which means that it is lighter than steel, but the strength is very similar.

1. Titanizing can further improve the bending strength of the product;

2. Titanizing will not affect the weight of the connecting rods;

3. Provide a wear-resistant layer, which greatly prolongs the service life of the parts;

Note

*Professional installation is highly recommended ；

*Custom Service:If there\'s no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.

---
