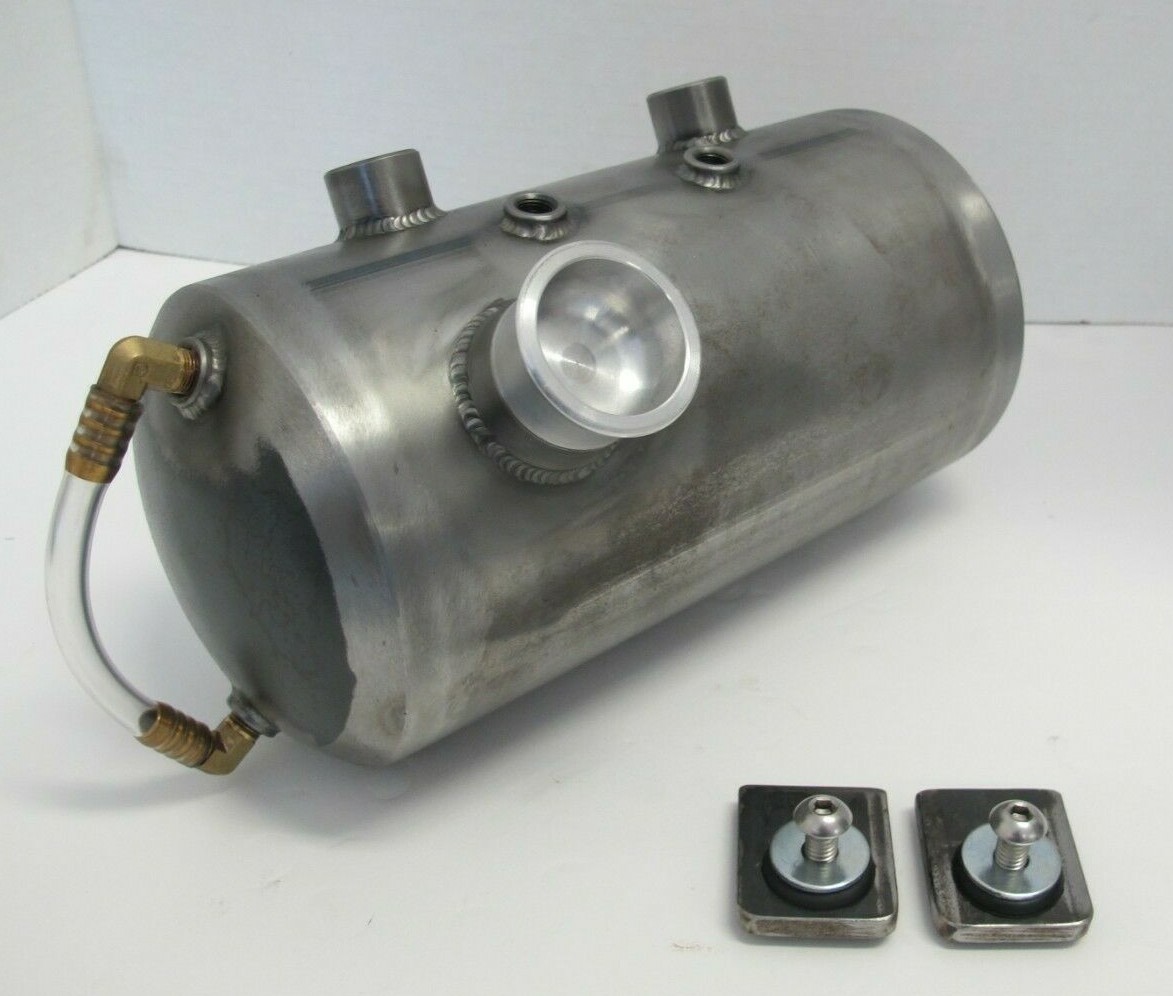

Tinworksinc Harley/Chopper/Bobber/Sportster/Oil Tank,Side Fill,Sight Tube 5" :
$165.00

MADE IN THE USA.
5 INCH 127MM DISHED ENDS STEEL OIL TANK SIDE FILLER.
10 1/2-INCH 266.7MM LONG.
Mounting Bungs are 4-1/4 107.95MM On Center 5-1/6-18 UNF Thread.
120 wall 3MM Thick tube.
100% Tig Welded Certified Tig Welder.
sight tube for oil level
Pressure Tested/Holds 3 qrts-2.839 Literes of Oil.
1/8 NPT Pipe threads
Aluminium cap comes with O-Ring
Two of the pipe bungs on top are the vent and return the bottom is the feed or pick up.
All bungs are cnc made
Comes complete with two mounts and hardware.
Rubber Isolators and three Stainless botton heads for mounting.
These tanks are perfect for any hard tail build or cafe rigid bike you are building.
In Stock and ready to ship!!!
