Includes:
Openinverter LDU Logic Board w/pre-soldered connectors
Openinverter SDU Logic Board w/pre-soldered current sensors
Fully Labeled SDU Wiring Harness/Pigtail
Fully Labeled LDU Wiring Harness/Pigtail
SDU and LDU Pinout Cards

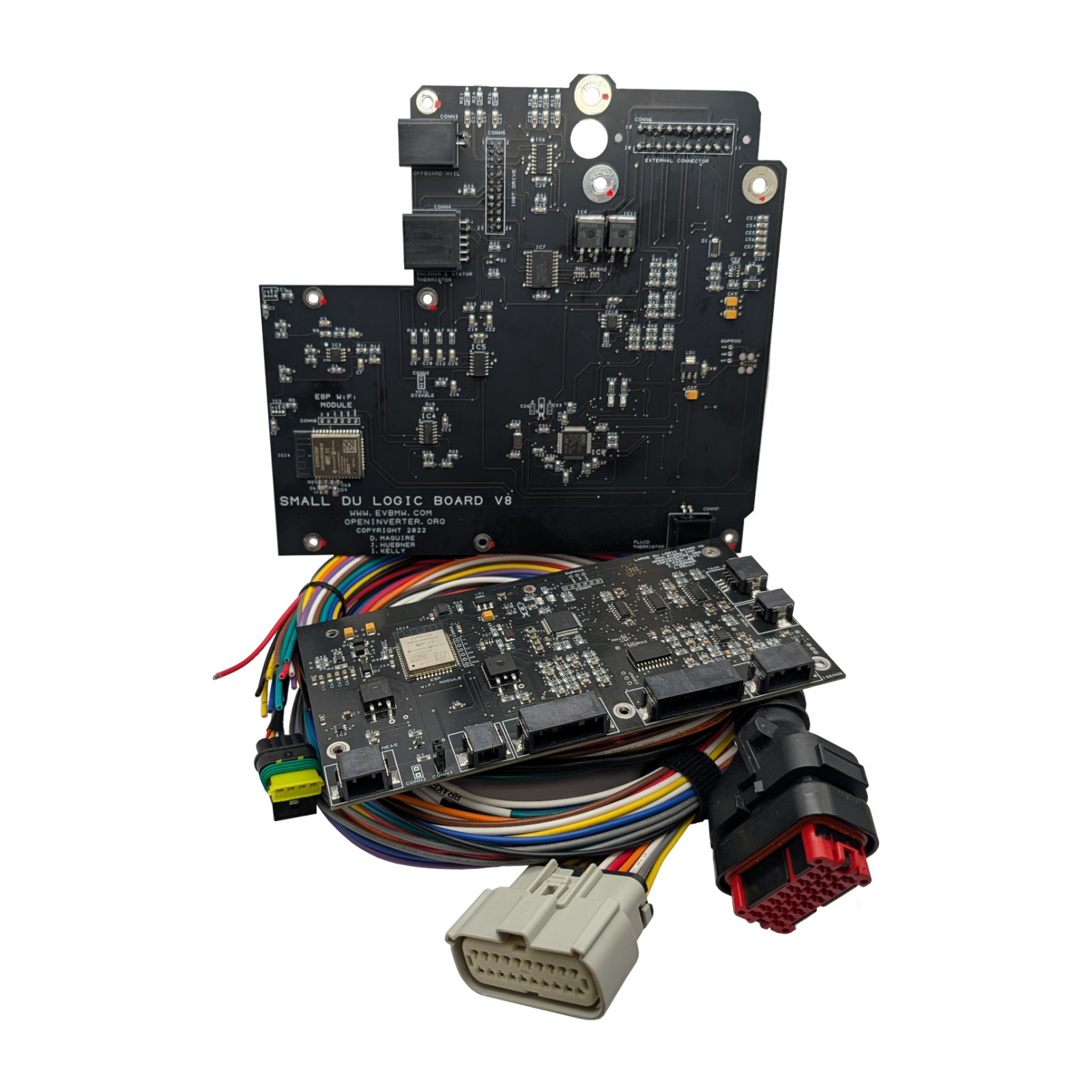

LDU and SDU Logic Boards
All components and connectors are included and pre-soldered. The boards have been flashed with the latest firmware and default parameters. Once installed, you can access the inverter parameters via an easy-to-use web interface to tune the motor for your application.
Openinverter boards include onboard ~5kW charging, so you don't have to buy and integrate a separate onboard charger if fast charging is not required!
SDU Board Install Video
SDU & LDU Wiring Harness/PigtailsSimplify your Openinverter setup with our fully labeled wiring harness/pigtails.
Made with high-quality 18 AWG silicone wire, color-coded and labeled specifically for the Openinverter logic board pinout. A full-color pinout cards are included as well.
- SDU harness: 1-meter (1.3-feet)
- LDU harness: 1.2-meter (4-feet)
Notes
50% of all new logic board profits go directly to the original developers. By purchasing this bundle, you're not just getting a great deal, but you're also contributing to the ongoing development and innovation of the Openinverter community. Thank you for helping support the creators who make it all possible! 🚀
All boards are verified to be working before shipping. Be sure to read the Openinverter wiki to get up-to-speed as much as possible first, but feel free to contact us for installation guidance or troubleshooting if needed. If a board is determined to have any defects or damage during shipping, we will replace it at no cost. You can also utilize the Openinverter community forums or purchase support hours via the Openinverter webshop for personalized troubleshooting specific to your project.
