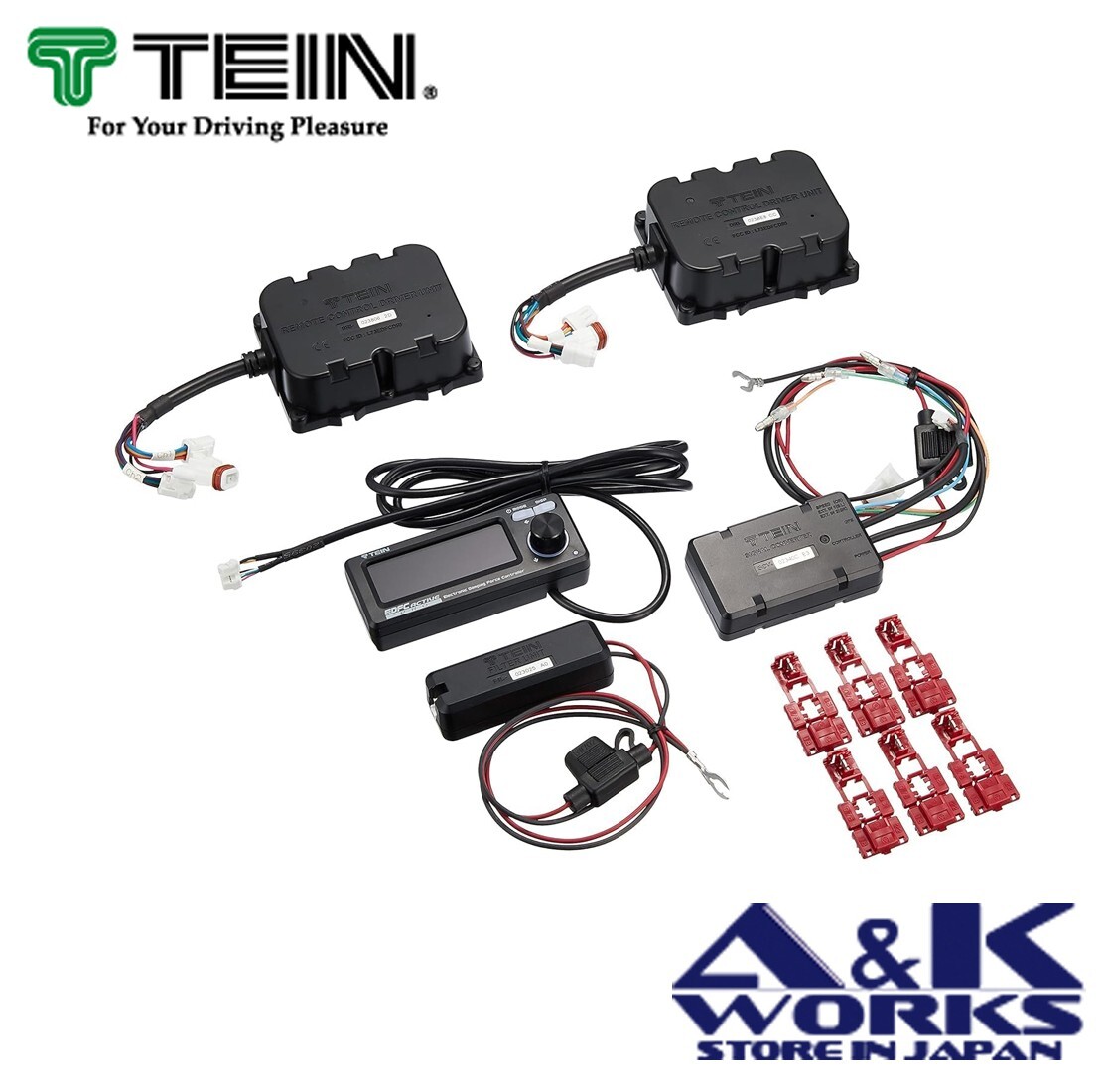

This is the EDFC ACTIVE PRO, an electronic damping force controller compatible with TEIN's ride height adjustable suspension kit.
Motor Kit
EDK05-10100
EDK05-10120
EDK05-10140
EDK05-12120
EDK05-12140
EDK05-14140
GPS Kit
EDK07-P8022
Automatic damping force adjustment, based on the vehicle's speed.
For example on urban streets, you can automatically have soft damping force at low speed for a cushioned ride, and stiff damping force for stable handling while driving fast.
Likewise on circuits, you can enjoy the right handling quality at any speed, for instance automatically adding a pinch of oversteer at sharp turns, and slight understeer at moderate turns.
Understeer: front wheels skid sideways at fast bend
Oversteer: rear wheels skid sideways at fast bend
Automatic damping force adjustment, based on acceleration and deceleration G-force (longitudinal G-force).
On the street you can unite ride comfort with handling stability, setting a soft damping force at constant speed to smoothly absorb the road's unevenness, and a stiff one at acceleration/ deceleration to constrain vehicle movement.
Furthermore on circuits, setups allow for increased stability at braking, as well as under- and oversteer control by varying front-rear damping force balance depending on the accel/deceleration amount.
Automatic damping force adjustment, based on lateral G-force such as during cornering.
Want to combine a comfortable ride with smooth cornering? Just set damping force to be soft while driving straight to compensate surface flaws, and stiff only at turns, suppressing the vehicle's roll velocity.
You can pre-set the damping force to the amounts of the lateral G-forces, and also customize the balance between front and rear damping.
With just one dial, front and rear damping force levels can be adjusted as desired.
The preset memory function stores up to 10 setups. You can instantly switch to your preferred damping force levels for any situation.
A seamless integration of all 3 automatic adjustment modes.
You can depend on real-time adjustment as you drive,
for your preferred ride quality whatever the driving conditions.
More about the 3 separate modes:
Speed-Reactive ModeAccel/Deceleration-Reactive ModeCornering-Reactive Mode
EDFC ACTIVE PRO features wireless control, for easy installation and wiring.
The controller wirelessly communicates with the motor driver units that command EDFC motors.
No more need to pierce cables through trunk or engine firewalls and snaking them about the vehicle.
The latest wireless technology enables instant and reliable adjustment motor response upon operating the controller unit. Of course, the network signal is reliable. Also interference is no worry, since each motor driver unit has one in 16.77 million unique IDs.
Motor driver units are made extremely dustproof and waterproof, so that they can be installed outside the vehicle's passenger compartment, such as in the engine bay.
You can choose the degree of fine-tuning for damping force adjustment: 16, 32 or 64 levels. TEIN shock absorbers usually offer 16-level adjustment, and EDFC Active Pro offers an additional scope of precision. This is especially effective in automatic adjustment modes.
Custom Color Example: Yellow
Custom Color Example: Pink
*For shock absorbers featuring separate adjustment of compression and rebound
EDFC Active Pro is able to control up to 8 motors for individual damping force adjustment, with just the one controller unit. This requires additional motor driver units.
The controller unit displays compression and rebound damping force levels simultaneously, and it can adjust each separately. All functions of EDFC Active Pro are available, including automatic adjustment modes.
When installing EDFC Active Pro with shock absorbers that offer compression and rebound separate adjustment, the following items are required.
- EDFC Active Pro Controller Kit x 1
- Motor Kit x 2
- Motor Driver Unit x 2
NOT compatible with motor driver unit for EDFC5 (EDC01-R6654).
Be sure to use the one for EDFC Active Pro (EDC01-P7370). Not doing so would lead to damages.
- Power Supply Cable for Front x 1
- Power Supply Cable for Rear x 1
- Motor Cable x as needed
- EDFC Hex Bolt x 4
- GPS Kit x 1 (for Speed-Reactive Automatic Adjustment Mode and GPS data display)
- Strut Kit x 1 (recommended for strut type front suspensions)
For part numbers, please see the EDFC Active Pro Price List below
Please use in conjunction with EDFC Active Pro's instruction manual
The brightness of the screen, buttons and dial adjusts automatically to the surroundings. Detecting the ambient light intensity with a sensor, EDFC Active Pro does not need to connect to the vehicle's illumination signal.
You can set the basic light level manually (3 levels), and brightness auto-adjustment fine-tunes it for optimal visibility. The auto-adjustment function can be switched on/off.
Speedometer Display (km/h)
Speedometer Display (mph)
With just a simple external trigger, such as a touch or action, preset damper settings can be activated. This requires connecting the controller to an existing signal or separately purchased switch (2 ports available).
Using a universal switch (not included)
Connect to parking brake signal
Save the suitable setup for that particular situation, and you can activate it instantly with a single touch.
Controller Unit
A variety of features, such as a G-sensor and wireless communication, are combined into one compact unit. The wide display (22 x 60 mm) offers good visibility.
Example of Placement
Wiring Duct
A Variety of Display Modes
Other than its default Damping Force Level Display, the EDFC screen switches to G-Force Display (numerical as well as graphic) and Speedometer Display. In addition, the optional GPS kit enables a further array of display modes: Altitude, Longitude, Latitude, Tripmeter and Clock.
Damping Force Level Display
(All shock absorbers separately)
Damping Force Level Display
(Front versus rear shock absorbers)
G-Force Display
Peak G-Force Display
Both acceleration/deceleration G-force and cornering G-force show in numbers as well as bar graphics.
With peak G-force memory.
G-Force bar scale can be switched: 0.3 or 1.0 G.
Longitude Display
(In degrees, minutes or seconds)
Latitude Display
(In degrees, minutes or seconds)
Tripmeter Display
(Stores up to 10 records;
can be set to km or miles)
GPS Precision Clock Display
(Continuation function at signal loss)
Motor Reset Frequency
A motor reset function is built in for the upkeep of correct damping force levels. At every start-up, the adjustment motors first rotate to maximum stiffness (level 0), before resuming their previous positions. Especially for users who mind the sound, the option is included to change the reset frequency from each start-up to once in every 10 start-ups or never.
Please note:
- We recommend to perform a reset regularly, to maintain correct damping force adjustment levels.
- The start-up reset is performed each time the controller unit is manually turned on.
Automatic Activation of G-Force-Reactive Modes
You can specify a minimum vehicle speed, at which to start accel/deceleration- and cornering-reactive automatic damping force adjustment. This is convenient if you don't need it when you drive slowly, or if you mind the sound of the EDFC motors. The start speed can be set between 0 and 50 km/h (or 0 to 50 mph); under that speed g-force-reactive auto-adjustment will be off.
One-Dial Operation
For easy operation, EDFC Active Pro features a one-dial system. Intuitive and simple, the dial is turned to scroll, and pushed to confirm. The 2 buttons above it switch the mode and display.
Triaxial Accelerometer
Since the G-sensor contained in the controller unit works along 3 axes, the controller can be installed at just about any angle.
2 View Angles
The controller's display settings offer an alternative view angle, to ensure visibility.
Sound Volume Adjustment (Levels 0 to 3)
The volume of the button/dial push sound can be set between levels 0 (mute) and 3. This also applies to the volume of system signals during auto-adjustment.
Lock Function Disables User Input
EDFC Active Pro offers a lock function to disable the buttons and dial, for instance during driving. This prevents accidental operations.
Self-Diagnosis
The system boasts a self-diagnosis feature that can determine the performance of motor driver units, wireless communication, etc. Any problem will appear on the screen, such as a disconnected or short-circuited motor driver unit, or trouble with the wireless signal.
Superior Casing Material
The housing of the motor driver units is made of highly heat resistant material.
Price ListWhat Do You Need?
EDFC Active Pro requires a Controller Kit and an EDFC Motor Kit.
