Suspension Lowering Drop Kit 3\"/5\" for Ford F150 F100 2WD 1980-1996 with Shocks

All modifications must be installed by licensed mechanics and in compliance with your local modification Dust Defender

Triple-layered dust cover with abrasion-resistant fabric

\"Stops grit at the gate — no more ruined seals or gritty grinding.\"

Dust Defender

Triple-layered dust cover with abrasion-resistant fabric

\"Stops grit at the gate — no more ruined seals or gritty grinding.\"

maXpeedingrods G1 Shock Specification

Product type: lowering kit

Drop height: 3\" front; 5\" rear

Spring material: 55CrSi

Finish: powder-coated

Spring length: 325mm/12.79\"

Spring rate：9 kg/mm  (503.97 lbs/in）

Nitrogen charged：yes

Dust cover equipped: yes

Travel range: F:104 mm/4.09“    R:  165mm/6.49\"

Extended length: F:400mm/15.74\"   R: 485mm/19.09\"

Collapsed length:F: 296mm/11.65\"   R: 320mm/12.59\"

Shock Structure

• Diameter of piston rod: 12.5mm/0.49\"
• Piston diameter: 30mm/1.18\"
• Outer cylinder diameter: 45mm/1.77\"

Application

for Ford F150 & F100 2WD 1980-1996

Feature Feature Feature installation Application ❮ ❯ ❮ ❯ ❮ ❯ ❮ ❯ ❮ ❯

Feature

High-pressure nitrogen charged twin-tube shock absorber with high durability.

12.5mm Chromed Hardened Piston Rod.

30mm Diameter Sintered Iron Piston.

36KN Tensile Strength.

Precision Welding.

Easy bolt-on installation

Power coated surface：provides superior corrosion resistance.

High Tensile Strength Carbon Steel for optimal durability and fitment.

Dust cover included prevent the shaft rod and oil seal from damaging.

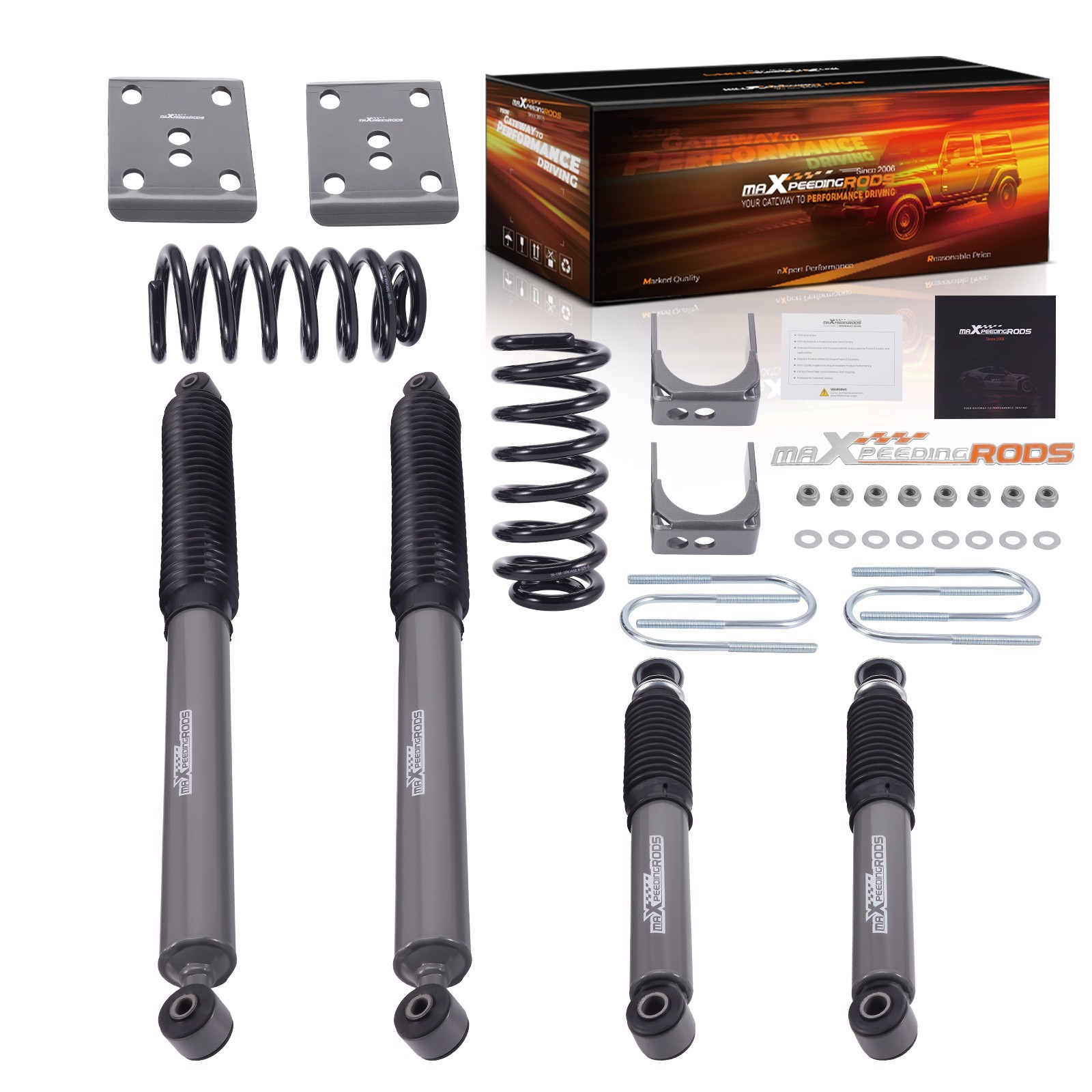

Package included

• 2xFront drop coils

• 2x Front drop shock
• 1x Rear axle flip kit with hardware
• 2x Rear drop shocks
