Speedway Slim Line Heat/Air Unit, Three Speed,26-1/4 Wide 5-1/4 Tall and 12 Deep For Sale - New and Used

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

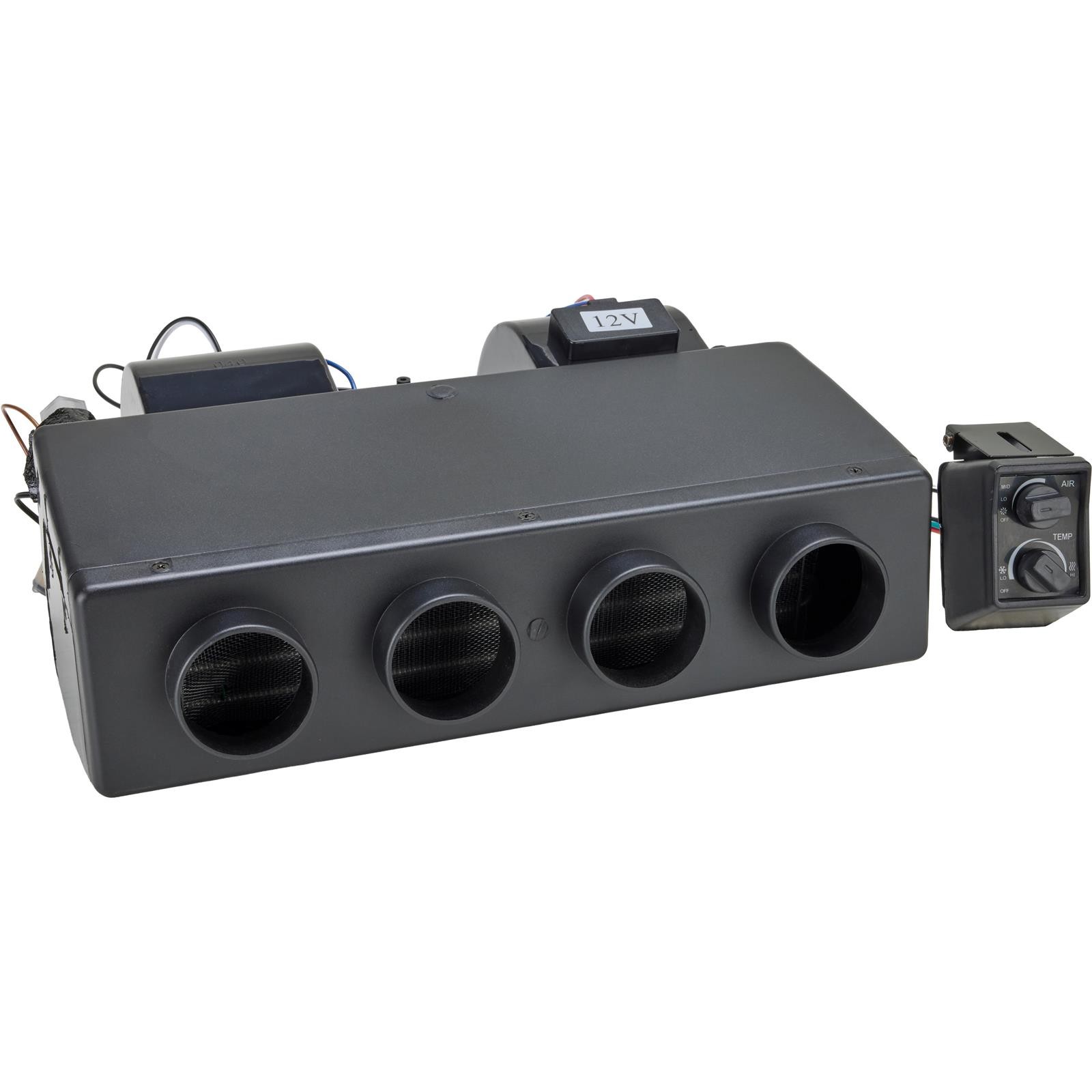

Speedway Slim Line Heat/Air Unit, Three Speed,26-1/4 Wide 5-1/4 Tall and 12 Deep:
$498.99

Under-dash mountable universal heat and A/C unit provides comfort in all seasons with easy installation and simple two wire connection, Features a three speed blower motor control and temperature adjustment on a stand-alone mounting panel., Easy to install with mounting slots on the sides of the unit all plumbing and wiring routes from the back side of the unit, Universal unit is perfect for applications where a direct fit system is not available or budget is a concern, Four forward facing round air ducts provide direct airflow to passengers or can be plumbed with 2.50-inch duct hose to remote vents Universal Under-Dash Heat and AC Unit w/ Remote Mounted Controls Sku # 91000466 Mfr. Part # 91000466 Condition New Brand Speedway Motors Sold Each Details

Simple two wire connection of switched 12-volt power and ground needed
Compact design fits under most dash assemblies
Housing includes compact heater core and evaporator (rear facing fittings on both)
Included mounting bracket provides fast and simple mounting
Single three-speed motor with dual fan design for optimal airflow
Four integral round vents can be used as is or duct hose added for custom routing
Remote mount controls provide easy temperature and fan speed adjustment
Designed for R134a refrigerant use
Expansion valve-based system with valve preinstalled
System does NOT include compressor, condenser, receiver-drier, or hoses

Keep Your Ride Comfortable with Our Universal Under-Dash Heat and Air Conditioner

We may try to rationalize why we don’t have air conditioning in our hot rod, classic truck, or even our muscle cars by saying things like it robs horsepower, or air conditioning is for wimps. But let’s face it, air conditioning your ride will make it a much more comfortable summer cruiser and you may just get your significant other to ride with you. Afterall, no one wants to show up at the cruise in soaked to the bone from the ride in your “hot” rod with no A/C. And while vent windows and cowl air vents help when your ride is moving, they don’t do anything in stopped traffic or if it is raining, so adding a universal A/C system under your dash is a quick and straightforward way to cool your cabin and make your passengers happy.

The same can be said for having basic heat for the fall and winter months too. While most cars came with a water-based heater system, we know far too many owners that have ditched the old under-dash heater core and all the hoses under the hood to the engine in the name of weight savings (because race car!) or due to damage not easily repaired like the fiberglass heater. Whatever the reason may be, having some heat to take the chill off in the cooler months is no doubt just as important as those summer months where A/C makes the drive to the cruise-in, or that Friday fun drive to work tolerable.

Perfect For Applications Not Served by Direct Fit A/C and Heat Conversion Kits

Our universal under-dash heat and A/C kit is perfect for those who have a vintage or unique ride that isn’t typically served by a complete retrofit heat and A/C system. Or perhaps you’re working with a tight budget and piecing together your heat and A/C system and only need the basics. Our under-dash heat and A/C unit is simply that, the basics. The black ABS plastic housing measures 15.75 inches wide by 13 inches deep and just 6 inches tall, which encases the evaporator and heater core units, along with the twin scroll three speed fan motor. The front mounted vents provide ample airflow into the cabin and can use standard 2.50-inch Shop A/C Duct Vent Hoses and Shop A/C Dash Vents to route the heated or cooled air to specific locations if desired. The remote mounted temperature and fan speed controls have a 24 inch harness length, allowing positioning where convenient to the driver (or flush mount the controls into your dash!).

Being an evaporator and heater only system, you will need to source the remainder of your A/C and heater system components separately. This allows you to build the perfect system for your ride and your budget. This is especially helpful for those with LS or other modern engine swaps where you may be using the OEM A/C compressor or an aftermarket serpentine Shop Accessory Drive Systems with A/C compressor included. Besides the Shop A/C Compressors and accessory drive you’ll also need an Shop A/C Condensers (either direct fit or universal, depending upon your ride), a Shop A/C Receiver-Driers and an Shop A/C Hose Kits to plumb the system. Of course, you’ll need to plumb the heater core to your engine with some fresh Shop Heater Hoses too. Lastly, if you plan to run an electric cooling fan, you will want to upgrade the binary pressure switch included with your receiver-drier to a Shop A/C Trinary Switches with fan output signal.

Specs Sold in Quantity Each MFG. Part # 91000466 Notes Under dash mount evaporator/heater and blower motor only, requires additional components to complete A/C and heat system A/C Compatibility Universal Kits A/C Kit Style Evaporator Kit Dash Vent Location Underdash Number of Air Duct Outlets 4 Uses Factory Controls No Control Panel Included Yes Drier Included No A/C Vents Included Yes Vent Hose Included No Duct Hose Included No Duct Hose Diameter 2.50" Water Valve Included No Heater Control Valve Included No A/C Condenser Included No A/C Compressor Included No Hoses Included No Wiring Included Yes Mounting Hardware Included Yes A/C Pulley Included No Reviews Fit great and easy install Rated by Tyler on July 11, 2023

Summary: Fit great into my galaxie and was super quick to install
