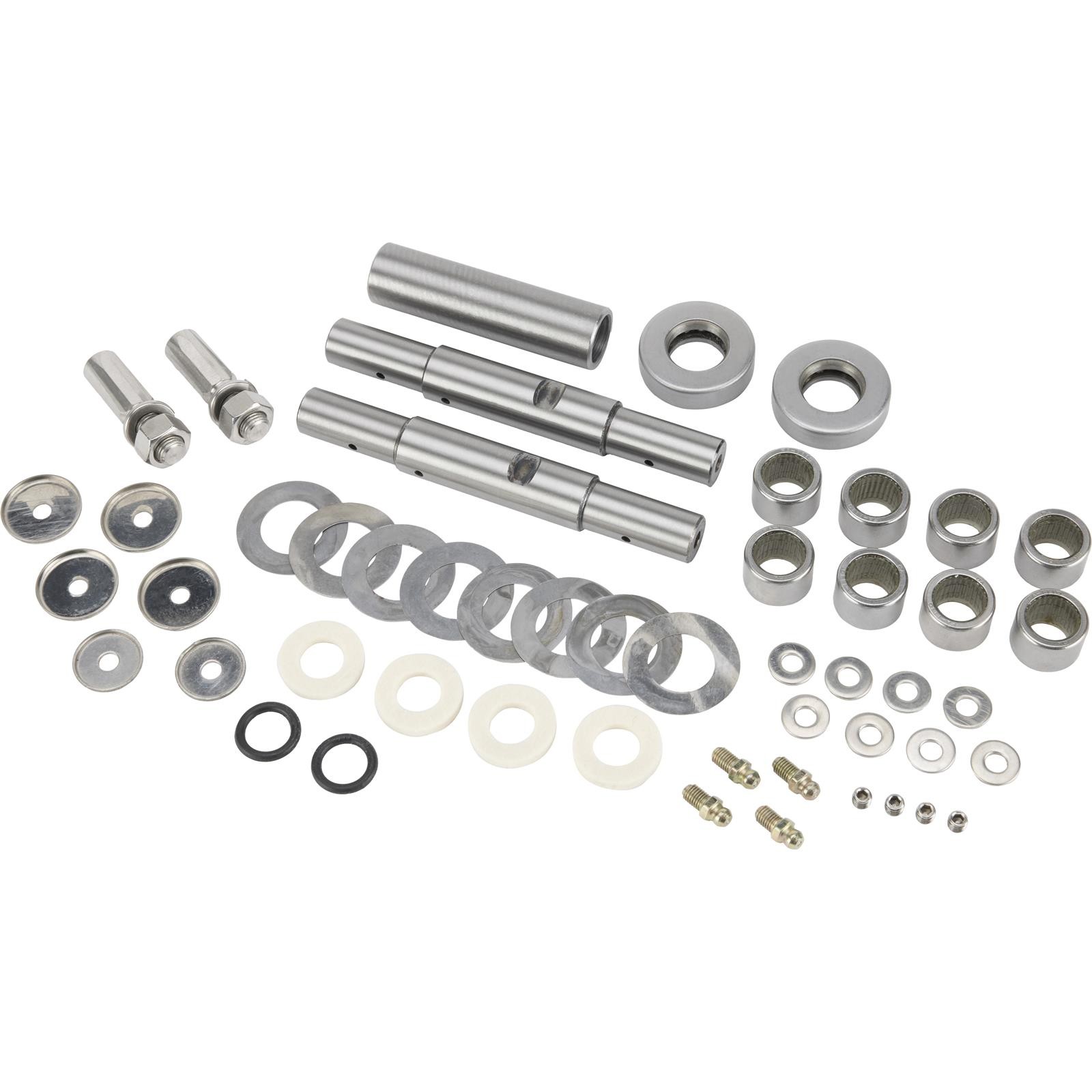

Great improvement over stock-style kingpins, Replaces original brass kingpin bushings with precision needle bearings, Provides superior strength, better lubrication and easier steering, Upgrade your \'37-\'48 Ford Speedway Deluxe 1942-48 Ford Spindle King Pin Set Sku # 91032116 Mfr. Part # 91032116 Condition New Brand Speedway Motors Sold Set Details
Speedway deluxe king pins are a great improvement over stock-style king pins. They replace the original brass king pin bushings with precision needle bearings that provide superior strength, better lubrication and easier steering. They\'re simple to install and are an easy, cost-effective way to upgrade your 1942-1948 Ford suspension, as well as tubular or I-beam street rod axles using 1942-48 Ford spindles.
Specs MFG. Part # 91032116 Reviews Can be fit to 1948 to 1952 F1 Ford Rated by TRM on February 20, 2026
Summary: Delux 1942-48 Ford King Pin Set will fit a 1948 to 1952 F1 Ford. All fitting together well with one modification required. The notch for the lock pins do not match. This is likely something many can do themselves, matching the old king pin notch. In my case I took it to a machine shop.Also, note that the directions say to keep the needle bearing in line with king pins. This is critical and requires some tweeking. they will not align themselves if installed crooked. The installation video is not very helpful as there is a lot of holding parts and talking but no detailed install demonstration.
Yes, I recommend this product.
Works great, upper bearings hard to install... Rated by Hotrodguy on June 27, 2023
Summary: This Kingpin set is pricey but it does work well and I expect it to hold up for many years. Bearings are better than bushings so I recommend the upgrade. The lower bearings are easy to press in but the the top ones have to be installed after the kingpins are in place and it's not easy. Save yourself some trouble and pop the top bearings in the freezer so when you are ready to install them, they go in much easier. Remember, the lower bearings are pressed in but the top bearings have to be hammered in so freezing the bearings is the way to go. Now I just need to get my front end aligned properly so I can fly down the freeway safely.
Yes, I recommend this product.
Yes Rated by Robert on April 29, 2020
Summary: With needle bearing spindles turn smooth
Yes, I recommend this product.
Better than bushings, but some modification maybe required Rated by Narly on November 02, 2018
Summary: Once the installation was complete, the spindles turn as smooth as butter. However there are a couple of challenges in the installation. First, take your time installing the needle bearings. One mishit and you are buying a new bearing like I did. Second, you might have to modify the king pin to get the notch to line up with the hole in the axle... like I did. Check photo. Lastly, installing the grease zerks was a pain. The threads are too short on the standard zerk included in the kit. I found some adapters at the local parts store that were longer and allowed a secure attachment of the zerk. (amazing what 1/8" can do)
Yes, I recommend this product.
Much easier to steer. I would recommend this kit. Rated by Paul on May 13, 2017
Summary: Very good Product
Yes, I recommend this product.
