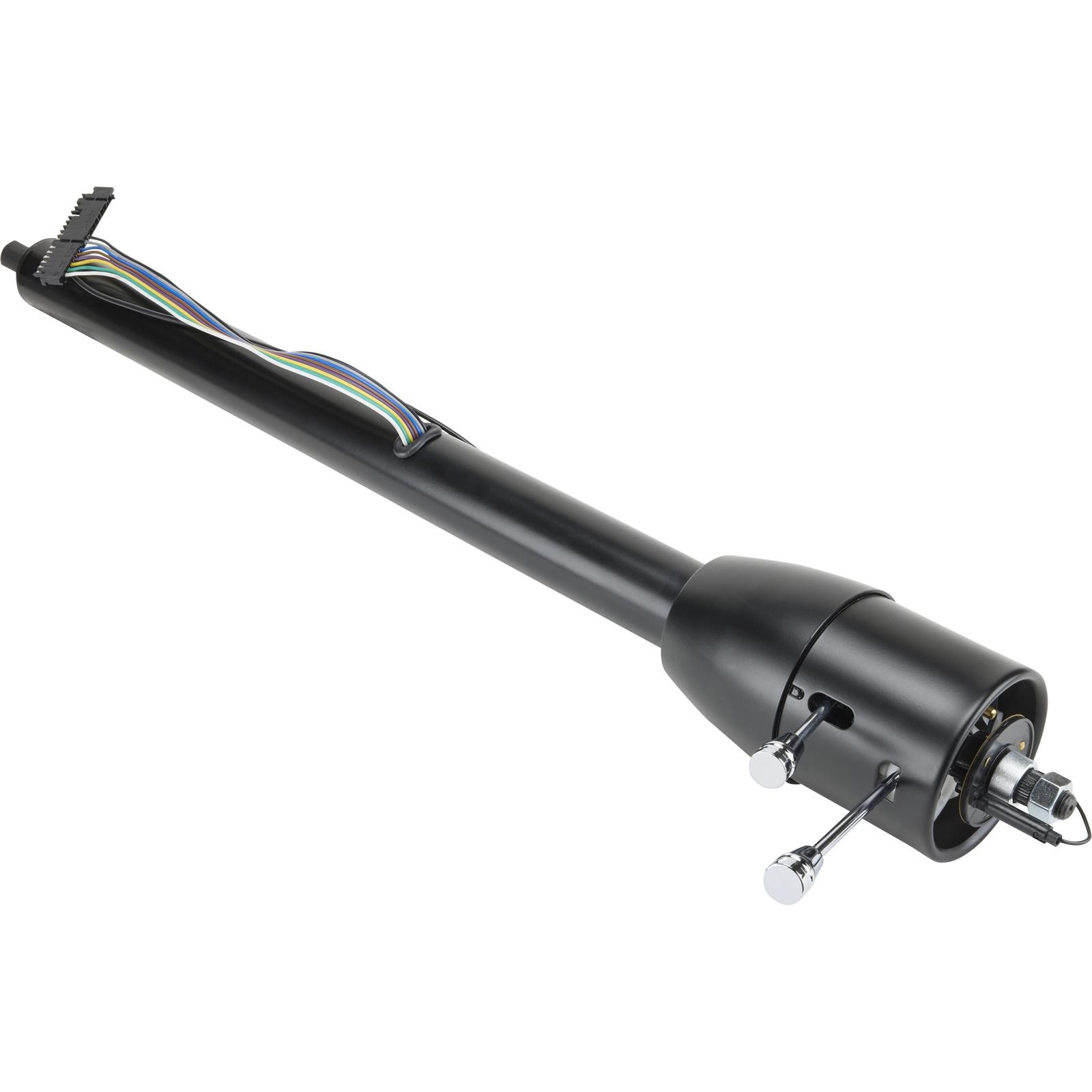

2-inch dia. column with 5 position tilt provides easy entry/exit and custom driving position, Built-in self-cancelling GM turn signal switch with on-column activated hazard flashers, GM 3-7/8-inch column wiring plug is compatible with OE (with adapter) and aftermarket chassis harnesses, Floor shift style column works with any floor shifted automatic or manual transmission, Direct fit semi-gloss black painted steel finish column uses factory upper mounting bracket Speedway 1955-56 Chevy Tilt Steering Column, Floor Shift, Black Sku # 91003310 Mfr. Part # 91003310 Condition New Brand Speedway Motors Sold Each Details
- 2-inch OD column housing,works with factory upper mount
- Overall length from end of bell to tip of steering shaft is 31.5-inches
- Five position tilt mechanism with 30 degrees of total adjustment
- Integrated GM style self-canceling turn signal switch with 4-way hazards
- GM style 10-pin 3-7/8-inch wiring plug connects directly with optional adapter
- Aftermarket true 1-inch DD output shaft uses commonly available aftermarket U-joints or rag joints
- Accepts any 1969 to 1994 GM steering wheel or GM steering wheel adapter
- Semi-gloss black painted steel housing compliments any interior
- Includes chrome plated turn signal lever, tilt lever, and hazard knob
Enjoy the Drive Once Again
In the 1950s a tilt steering wheel was a scarce reality saved for luxury cars and exotics. If you did not fit well between the steering wheel and the seat tough cookies! It does not have to be that way today for your \'55-\'56 Chevy. Get behind the wheel and drive again in comfort with a Speedway Motors \'55-\'56 Chevy Tilt Steering Column.
A Premium Tilt Column with All the Features You Want
Old tilt columns are just that-old! Do not waste your time in a salvage yard digging around for a steering column for your project that will undoubtably need a complete rebuild. Not to mention it most likely will be too long or too short for your application.
Using one of our \'55-\'56 Chevy tilt steering columns is the way to go. This is not just any old aftermarket steering column either. Manufactured with all new parts in a compact design, the small 2-inch diameter steering column tube and compact tilt head that is just 7-inches in length provides copious amounts of leg room while fitting nicely within the dash.
The five-position tilt head allows 30 degrees of tilt, 20 degrees up and 10 degrees down from straight. This tilt function not only provides the perfect angle for personal driving comfort but can facilitate easier ingress/egress with a simple flick of the tilt lever.
Our \'55-\'56 Chevy tilt steering columns are modeled after the GM 1969-1994 specifications for steering wheel spline, turn signal wiring, and more. An industry standard. We use a 1-inch double-D (DD) steering shaft for connecting to your stock steering box. A Steering Shaft Coupler is required when retaining the stock steering box and the steering box input shaft requires cutting and modification to a ¾-inch DD configuration. For aftermarket steering boxes or rack-and-pinion conversions we offer a multitude of Steering Column U-Joints and Shafts to facilitate connecting your new column. We also offer this column in a 55-56 Chevy Column Shift Tilt Column.
Direct Replacement for Your \'55-\'56 Fixed Column
Our \'55-\'56 Chevy Tilt Steering Column arrives in a semi-gloss black painted finish and ships with cleanly styled chrome-plated control levers for the turn signal switch, tilt mechanism, and hazard light switch. If you prefer, we offer our column in a 55-56 Chrome Finish Tilt Column and 55-56 Plain Finish Tilt Column as well. The 2-inch OD column tube allows it to be easily secured to your dash using the original upper mount. We recommend one of the lower mounts listed below to aid in your installation.
The standard GM steering wheel spline means any 1969-1994 GM steering wheel is a direct fit, or you can purchase a Steering Wheel Adapters to aid in fitting your 3-, 5-, or 9-bolt wheel to your new column. Our steering wheel adapter Speedway Toolbox Steering Wheel Adapters Buyer\'s Guide will help you find the proper fit.
Our \'55-\'56 Tilt Steering Column uses GM steering column wiring connectors. The standard 3-7/8-inch turn signal switch connector even uses stock GM wire color codes. This makes our column a direct plug-and-play electrical connection to any vehicle that has been upgraded with an Aftermarket Chassis Wiring Harnesses. For \'55-\'56 Chevy vehicles with factory wiring, you can easily adapt your turn signal wiring by installing one of the year specific jumper harnesses listed below, which will also give your Chevy easily accessed column activated hazard lights.
If the original fixed steering column is preventing you from enjoying your \'55-\'56 Chevy, then upgrade to our \'55-\'56 Chevy Tilt Steering Column today and drive your vehicle in comfort. Your knees will thank you for it!
Specs Sold in Quantity Each Notes 7" from steering wheel mounting point to 2" tube. Wires exit 8.375" below bell shaped housing. Mount Type Direct Column Type Tilt Shifter Location Floor Key Location Dash Overall Length 30" Finish Black powdercoated Output Shaft Type 1" DD Aftermarket Tube O.D. 2" Material Type Steel Collapsible No Gear Indicator Included No Hazard Switch Yes Telescoping No Tilt Column Yes Turn Signal Switch Included Yes Spline Count DD Tech Support We\'re here to help before and after your purchase. If you have a question or need assistance with one of our products, please contact us through Messaging and a knowledgeable Speedway Motors team member will be happy to help. About Speedway Motors is America’s Oldest Speed Shop® and has been a trusted source for specialty rodding and racing products and friendly expert advice for more than 74 years. Founded in 1952 by “Speedy” Bill Smith – a racer and street rodder himself – Speedway has grown from a one-man operation to become the world’s largest manufacturer, distributor and retailer of street rod and racing products. Our industry-leading fast delivery is the result of same-day shipping from our state-of-the-art, centrally located 500,000 sq. ft. headquarters. Speedway’s size offers customers unmatched product selection and low pricing, while our excellent technical support and customer service have made us a recognized leader in the rodding and racing industries.
