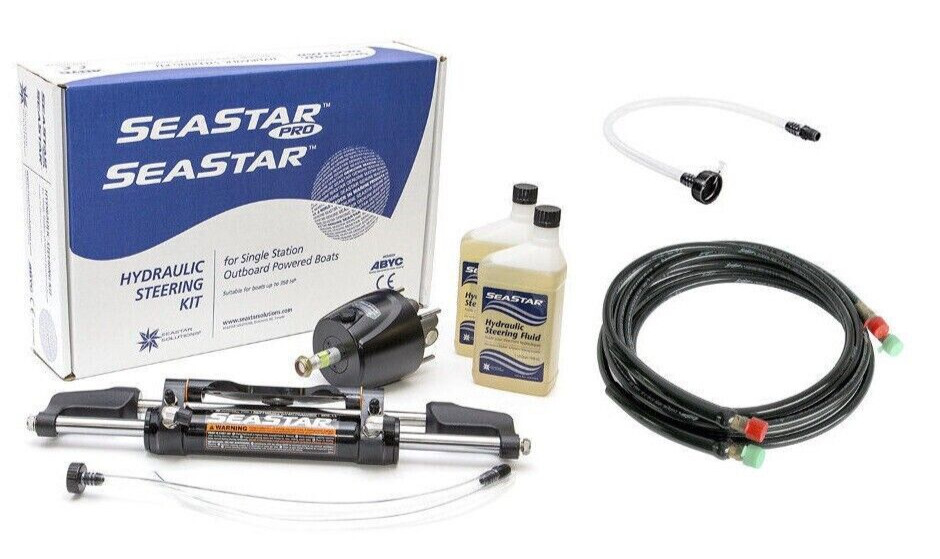

New SeaStar Solutions HK6400A-3 SeaStar hydraulic outboard steering system with SeaStar HO5112 12ft hose kit.
Features
- 5 Turns Lock-to-Lock (1.7 cu. in. displacement helm)
- Standard 3/4″ Tapered Keyed Steering Shaft (threaded end of steering shaft is 5/8″-18UNF)
- Patented No response™ (NFB) Lock Valves
- Replaces and Supersedes Teleflex Marine SeaStar HK6400A and HK6400
- Exceeds NMMA and ABYC Standards
Works For
Boats up to 60 mph with single outboards up to 300 HP or twin outboards up to 450 hp (non-counter rotating) / 600 hp (counter rotating).The SeaStar requires a 3″ (76mm) cut-out hole in the dash and a minimum 21″ (534mm) splashwell width.
Cylinder/Ram
The HC5345-3 cylinder is suitable for most outboards. Use the application guide in the product images to double-check what cylinder your outboard requires.
Hoses
This SeaStar kit comes with a 12 foot hose kit, part number HO5112. If you’re unsure what length you need, use the measuring guide in the product images.
DescriptionPart KitHO5112 (12ft)1Fluid/OilHA5430H2 quartsFiller KitHA54381Instructions1
