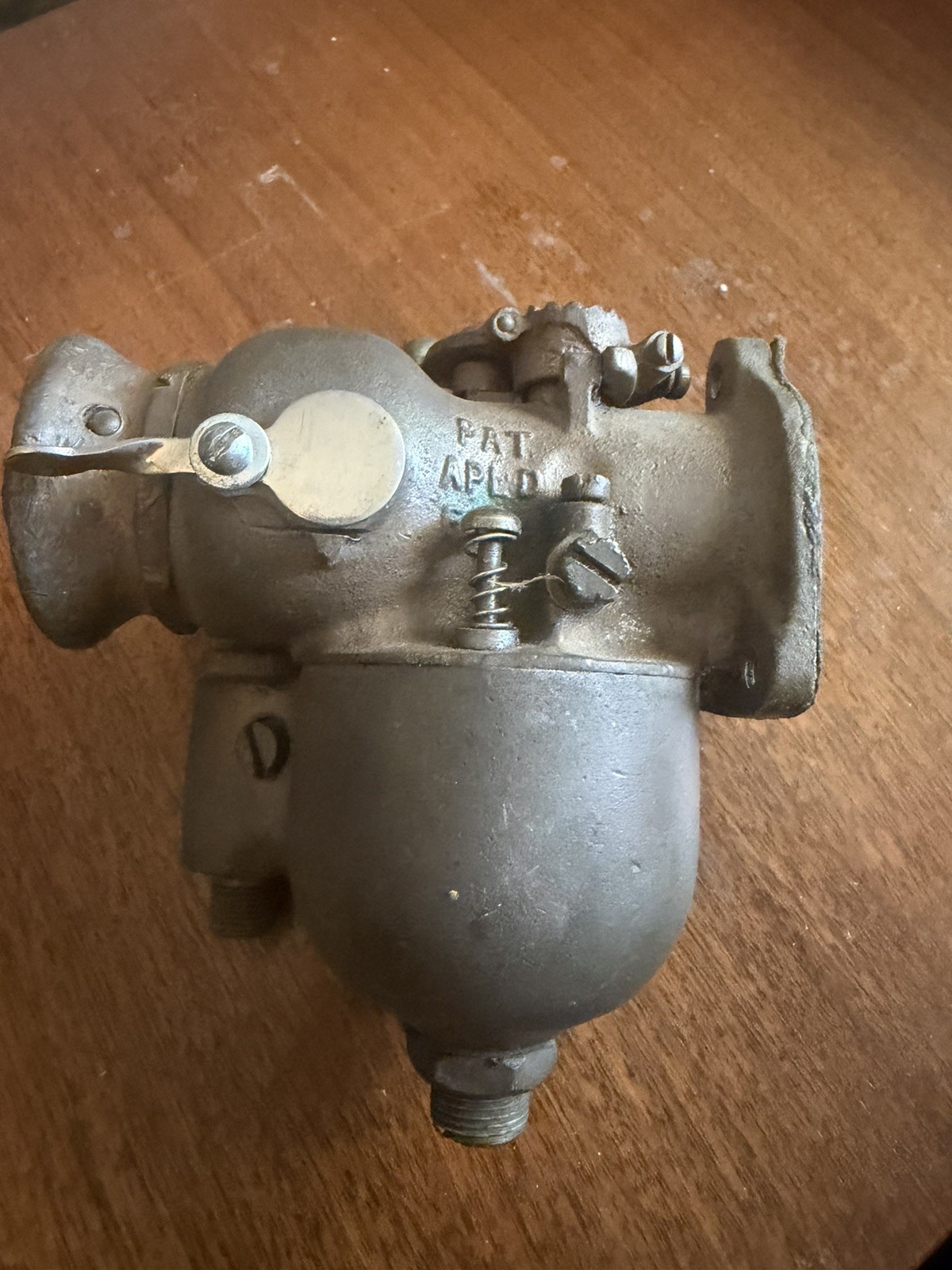

Schebler HX Carburetor 1 1/4\" Bore H112 Harley JD Indian Excelsior.
This is a very complete carb that looks like it was rebuilt.
Up for sale is an authentic vintage Wheeler-Schebler Model HX automatic brass/bronze motorcycle carburetor. This is a highly desirable, large-capacity version featuring a factory 3-bolt mounting flange pattern (two lower holes, one top hole) rather than the standard clamp style.
**TECHNICAL SPECIFICATIONS & IDENTIFICATION:**- Series: Schebler HX (Features the classic external flexible brass ribbon/cam track needle lift mechanism)- Internal Bowl Casting Number: H112- Throttle Bore Size: True 1-1/4\" (Large Throat / Big Twin Specification)- Body Material: Solid Cast Bronze/Brass- Mounting Flange: 3-Bolt Pattern- Model Stamp: Factory Blank (A common occurrence for vintage dealership service replacements or lost via historical polishing)
**POTENTIAL FITMENT & PERIOD APPLICATIONS (1920–1925):**This 1 1/4\" 3-bolt layout makes it an excellent period-correct performance upgrade or factory heavy-duty replacement for:- Harley-Davidson 74ci JD & JDH Twin Models (1921–1925)- Indian Big Chief & Powerplus 61ci / 74ci V-Twins- Excelsior Big Twin Models- Vintage Board Track, Dirt Track, or Hillclimb Racing Projects utilizing 3-bolt manifolds
![Schebler HX Carburetor 1 1/4\](parts-image-large/g/UdAAAeSwa5lqwDeh/s-l1600/Schebler-HX-Carburetor-1-1-4-Bore-H112-Harley-JD-I.jpg "Schebler HX Carburetor 1 1/4\")
