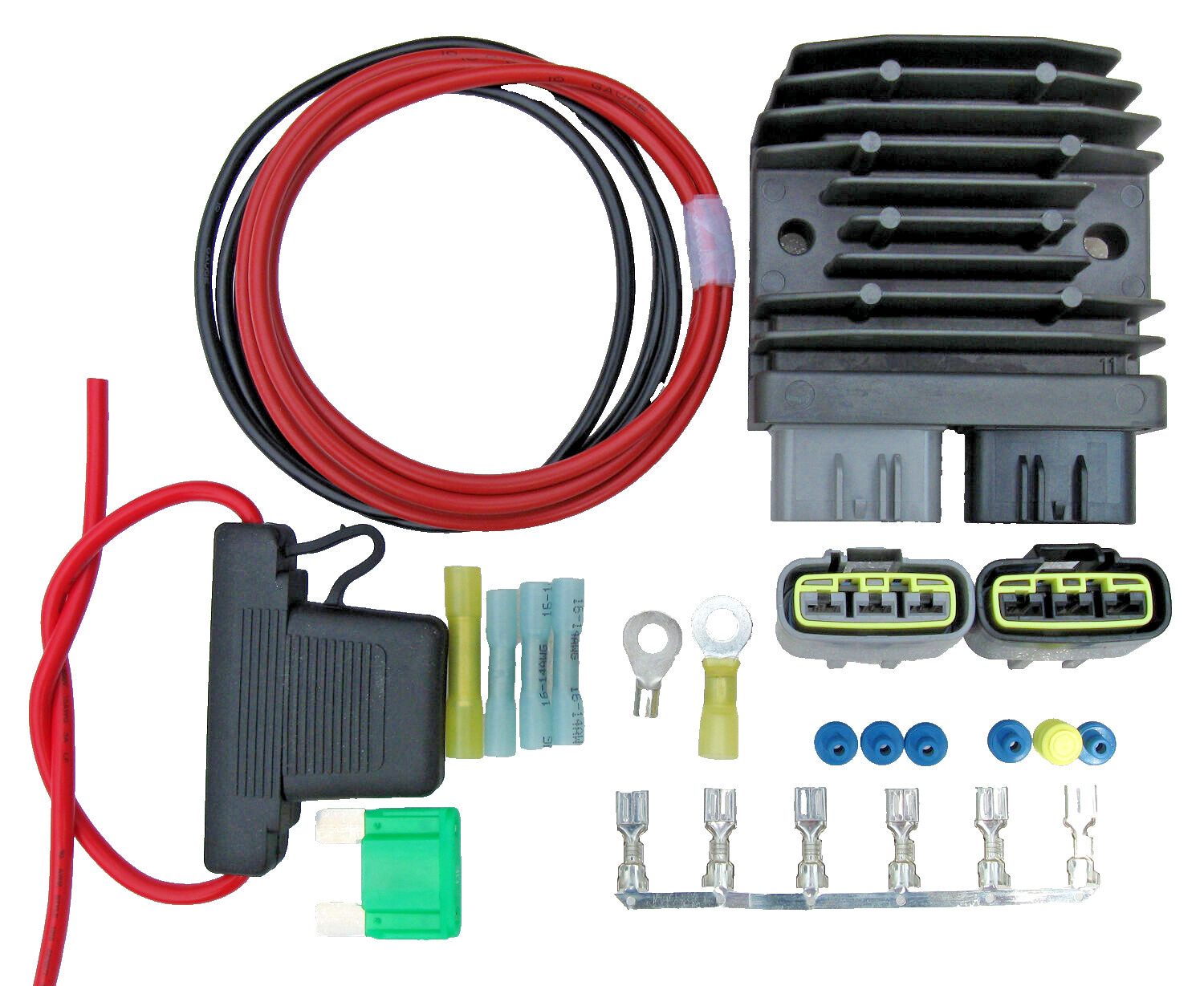

SHINDENGEN MOSFET FH027EA REGULATOR/RECTIFIERNote: Shindengen replaced the former part numbersFH012AA & FH020AAregulators with updated version, the new part number is FH027EA. The updated version is physically the same size only minor changes were been made.Beware of the copies out there now being sold they are substandard quality made in China I sell genuine Shindengen quality only. Note: Some of the copies do not have a metal back they have black potting material . KIT INCLUDES* GENUINE SHINDENGEN MOSFET FH027EA REGULATOR/RECTIFIER* OEM WEATHER PROOF CONNECTORS FOR SHINDENGEN REGULATORS*COMPLETE INSTALLATION INSTRUCTIONS WITH PICTURES*WEATHER PROOF MAXI FUSE HOLDER (if you need a circuit breaker instead let me know and I will switch the maxi fuse out for a breaker) (MAXI FUSE HOLDER HAS 10GAUGE STRANDED COPPER WIRE AND CAN HANDLE 55AMPS)*30Amp MAXI FUSE*3 FT OF 10 GAUGE GXL STRANDED COPPER WIRE RED*3 FT OF 10 GAUGE GXL STRANDED COPPER WIRE BLACK* RING TERMINALS 3M (POS. RING TERMINAL (WITH HEAT SHRINK END)*( 4) 3M MARINE BUTT SPLICE CONNECTORS (WITH HEAT SHRINK ENDS)This is a UNIVERSAL regulator/rectifier kit and charging system upgrade kit.The kit can be used to upgrade 2 wire and 3 wire stator systems on all makes and models of motorcycles.This voltage regulator is great for replacing existing undersized or obsolete regulators.The advanced MOSFET construction will run cooler than all OEM diode style regulators.In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.This regulator can handle up to 50amp peaks & 30amp continuous 3 phase, 30amp single phase.
(NOTE)Not for motorcycles with 5 wire stators in which 2 of them are for brushes. Or Field Control Type charging systems using non permanent magnet rotors.
For your reference the mounting center to center is 68mm to 70mm using 6mm bolts the bolt center could be filled wider or a adapter plate could be made for other mounting applications.
Often the stator has failed and the regulator gets the blame. A stator is difficult to check completely as they often fail only when hot.
These simple checks will find some bad stators, but a stator that passes these checks may still be defective.1. Check the resistance between the leads, this is normally under 1 or 2 ohms. If you have a 3 phase stator, the resistance between each of the 3 lead combination's (AB,AC,BC) should be equal. If you see higher resistance, or unequal resistances, the stator is bad.
2. Check the resistance to ground, it should be well over 10 Meg ohm.Battery condition is important. No regulator can make up for a bad or weak battery.
If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERYNOTE ABOUT CRIMPED CONNECTIONS:
Crimpingwas invented by Amp Incorporated in 1941 as a solderless method for terminatingwires and connectors.When done right, acrimped connection can be much stronger and longer lasting than a solderedconnection, and have electrical resistance of the equivalent length of wire. Aproperly done crimp is also gas-tight as well, not allowing oxidation todegrade it over time. Note your factory connections are all crimped.
