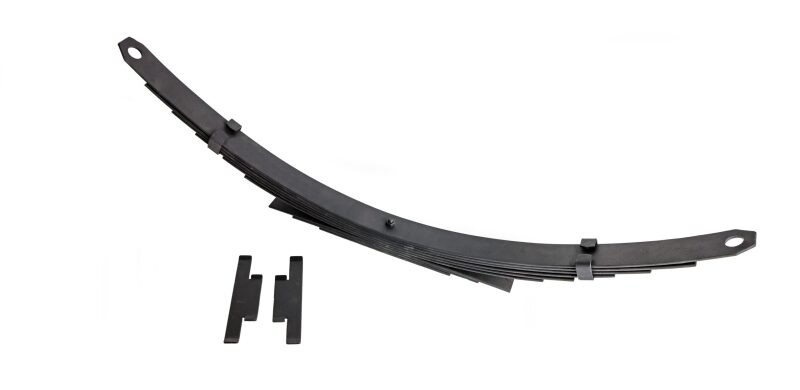

Upgrade your 1963–1982 Corvette (C2/C3) with Ridetech 11534898 Steel Leaf Spring. This 9-leaf assembly, featuring a 175 lb./in. base rate (225 lb./in. under load), enhances handling and minimizes body roll for a smoother ride.
Includes side shims for 2.25\" and 2.5\" compatibility. Ideal for enthusiasts seeking performance!
Vehicle Fitment
- 1963–1982 Chevrolet Corvette (C2/C3)
Fitment Notes
- Side shims included to ensure correct fit on both early 2.25\" (1963–1978) and late 2.5\" (1978–1979) wide leaf spring widths
- This \"Leaf and Shims Only\" version does not include bushings or the lowering bolt hardware kit — those are sold separately or bundled in the Complete Kit (SKU 11534899)
Features
- Industry-exclusive 175 lb./in. base spring rate minimizes body roll
- 225 lb./in. rate when overload leafs engage under heavier loads
- 9 total leafs: 6 full-length plus 3 overload leafs
- Epoxy/graphite primer with black topcoat for corrosion resistance
- Includes new Grade 8 hardware to attach the differential
- Direct replacement for the factory single-leaf spring
- Maintains a comfortable ride while improving handling response
Specifications
- Location: Rear
- Spring rate: 175 lb./in. (base), 225 lb./in. (overload engaged)
- Leaf count: 9 (6 full-length, 3 overload)
- Leaf width compatibility: 2.25\" and 2.5\"
- Finish: Epoxy/graphite primer, black topcoat
Included Components
- 1x Steel Leaf Spring Assembly (9-leaf)
- Side Shims (for 2.25\"/2.5\" width fitment)
- Grade 8 Differential Mounting Hardware
Product Description
The Ridetech 11534898 Steel Leaf Spring replaces the factory single-leaf rear spring on 1963–1982 Corvettes with a 9-leaf design rated at 175 lb./in., stepping up to 225 lb./in. once the overload leafs engage. This cuts body roll noticeably while still keeping a comfortable ride, and the included side shims handle both leaf spring widths used across the C2/C3 production run.
This \"leaf and shims only\" version is meant for owners who already have bushings and the lowering bolt hardware on hand, or who plan to pair it separately with Ridetech\'s bolt/bushing kit. For a one-box solution with everything included, the Complete Kit (SKU 11534899) bundles the same spring with bushings and hardware.
