Fitment
Compatible with Harley Dyna 1991-2017
Compatible with Harley Sportster 1988-2022
Note:
Please note that during storage and transport,especially at high ambient temperature, some of the oil and grease used for assembly may leak and stain the packaging. This will not cause damage to the product, wipe off the excessive oil or grease with a cloth.
Specifications
Item:Remote Reservoir Rear Shocks/Piggyback Rear Shocks
Material: steel and 6061 Aluminum
Logo:MOFUN
Spring Color：Gloss black
Shock-absorbing color：Black
Exposed remote reservoirs ：Oxidized Black
Eye to eye Length: Standard 13.4\"(340mm) Height with and 5 mm of length adjustment
Shock absorber ：0.55”（14mm）
Piston diameter: 1.6”(42mm)
Spring Thickness: 0.3”(7.6mm)
Shock stroke / working travel: 2.52 in\"(64 mm)
Max Load:350 lb and (rider and gear heavier combos)
Required Assembly：NO
Position：Rear
Adjustment
Compression damping adjuster：18 level
Rebound damping adjuster：33 level
Spring Preload adjuster:2\"(50.8mm)
Features
【Compatibility】
Remote Reservoir Rear Shocks are compatible with Harley Dyna 1991-2017 and Sportster 1988-2022 models. Please check the detailed fitment list before purchasing.
【High-performance style】
Rear Shocks that fit Harley come with exposed remote reservoirs, designed for the aggressive performance rider.
The high-pressure nitrogen-filled design resists heat fading for achieving smooth performance. Progressive rate springs stiffen quickly for improved control when you pick up the pace. These shocks perform great and add a performance style with a remote reservoir and exposed adjusters.
【Precise Regulation】
Our Reservoir Rear Suspension Shocks let you experience the optimal ride with 18 levels of adjustable compression damping and 33 levels of rebound damping. These monotube remote reservoir shocks are completely adjustable to match your riding style. Set the sag with the adjustable, preload then fine-tune the response with adjustable compression and rebound damping. Preload setting on both shocks allows suspension adjustment based on rider, passenger, and gear weight for optimal performance.
Enhanced stability and smoothness of ride, reducing the impact of bumps and uneven terrain.
【Easy Installation】
Piggyback Rear Shocks are designed for effortless installation. No tools are required for compression and rebound damping adjustments, enabling quick, easy tweaks. Comes with instructions and Suspension Preload Table.

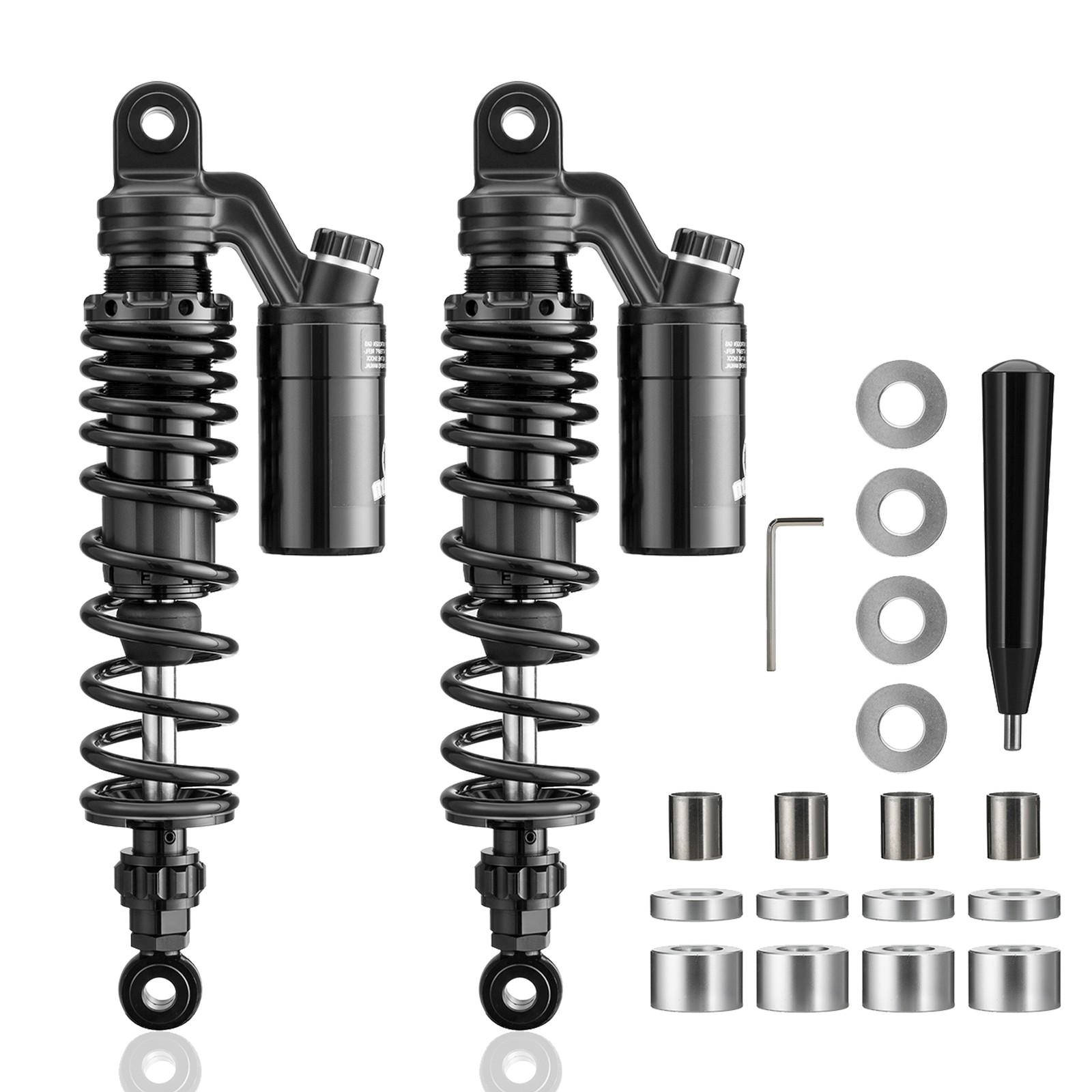

Package Including
2 x Remote Reservoir Rear Shocks/Piggyback Rear Shocks
8 x Aluminum Standoffs
4 x Flat Washers
1 x Billet Aluminum Preload Adjustment Tool
Fitment List
Compatible with Sportster Models
Compatible with SPORTSTER 883 XLH883/XL883 1988-2008
Compatible with SPORTSTER 883 CUSTOM XLH883C/XL883C 1999-2009
Compatible with SPORTSTER 883 DELUXE XLH883 DLX 1988-1995
Compatible with SPORTSTER 883 HUGGER XLH883 HUG 1988-2003
Compatible with SPORTSTER 1100 / 1200 XLH1100 / XLH1200 1988-2003
Compatible with SPORTSTER 1200 CUSTOM XLH1200C/XL1200C 1996-2020
Compatible with SPORTSTER 1200 SPORT XL1200S 1996-2003
Compatible with SPORTSTER 883 LOW XL883L 2005-2010
Compatible with SPORTSTER SUPERLOW XL883L 2011-2020
Compatible with SPORTSTER 883 IRON XL883N 2009-2022
Compatible with SPORTSTER 883R XL883R 2002-2003,2005-2007
Compatible with SPORTSTER ROADSTER XL1200CX 2016-2020
Compatible with SPORTSTER 1200 LOW XL1200L 2006-2011
Compatible with SPORTSTER 1200 NIGHTSTER XL1200N 2007-2012
Compatible with SPORTSTER IRON 1200 XL1200NS 2018-2020
Compatible with SPORTSTER 1200 ROADSTER XL1200R 2004-2008
Compatible with SPORTSTER SUPERLOW 1200T XL1200T 2014-2017
Compatible with SPORTSTER SEVENTY-TWO XL1200V 2012-2016
Compatible with SPORTSTER FORTY-EIGHT XL1200X 2010-2022
Compatible with SPORTSTER FORTY-EIGHT SPECIAL XL1200XS 2018-2020
Compatible with 50TH ANNIVERSARY SPORTSTER XL502007
Compatible with XR1200 / XR1200X XR1200 / XR1200X 2008-2010,2011-2013
Compatible with Dyna Models
Compatible with SWITCHBACK FLD 2012-2016
Compatible with DYNA SUPER GLIDE FXD/I 1995-2010
Compatible with STREET BOB FXDB/I 2006-2017
Compatible with DYNA SUPER GLIDE CUSTOM FXDC/I 2005-2014
Compatible with FAT BOB FXDF 2008-2017
Compatible with CVO FAT BOB FXDFSE 2009-2010
Compatible with DYNA LOW RIDER FXDL/I 1993-2009,2014-2017
Compatible with DYNA LOW RIDER S FXDLS 2016-2017
Compatible with DYNA CONVERTIBLE FXDS CONV 1994-2000
Compatible with SCREAMIN’ EAGLE DYNA FXDSE 2007-2008
Compatible with DYNA WIDE GLIDE FXDWG/I 1993-2008,2010-2017
Compatible with CVO DYNA WIDE GLIDE FXDWG2/3 2001-2002
Compatible with DYNA SUPER GLIDE SPORT FXDX/I 1999-2005
