Champion Cooling radiators are tig welded with aircraft grade aluminum. Every radiator comes with a limited lifetime warranty so you can buy with confidence! Product Specifications: Core (H x W): 19.25" x 26.375" - Overall (H x W): 26.375" x 29.5" - Hose Locations (In x Out): Pass x Driver - Hose Fittings (In x Out): 1.75" x 2" - TOC: 1/8-27NPTPlease click on the "Read more" link below to view a complete item description with product videos and additional items to upgrade your cooling system.
PART INFORMATION Shipping Payment Policies Contact Us Part Information Related Items Need A Different Set Up? (Click A Photo Below) Genuine Champion Cooling Systems Part #CC433B-BLK This radiator is designed for either a 5.0L(302ci) V8, 5.8L(351ci) V8, 5.9L(360ci) V8, 6.4L(390ci) V8 or a 6.6L(400ci) V8 engine. Features
- Higher density core: cooling rows are spaced 3/8" apart: giving you 25% more rows within the core than other aluminum radiators sold on and 35% more rows than OEM copper.
- Aluminum dissipates heat more efficiently than copper or brass.
- 14-16 cooling fins per inch (42 per square inch) giving you approximately 1500 more cooling fins than other aluminum radiators and approximately 3000 more than OEM copper radiators.
- Lighter weight.
- Outperforms other 2, 3 and 4 row copper radiators.
- High performance appearance.
- You get "BIG BLOCK COOLING" and "PEACE OF MIND" when you drive your car with a Champion Cooling Systems radiator.
- You could easily spend $400 - $1,000 more for a radiator of similar quality.

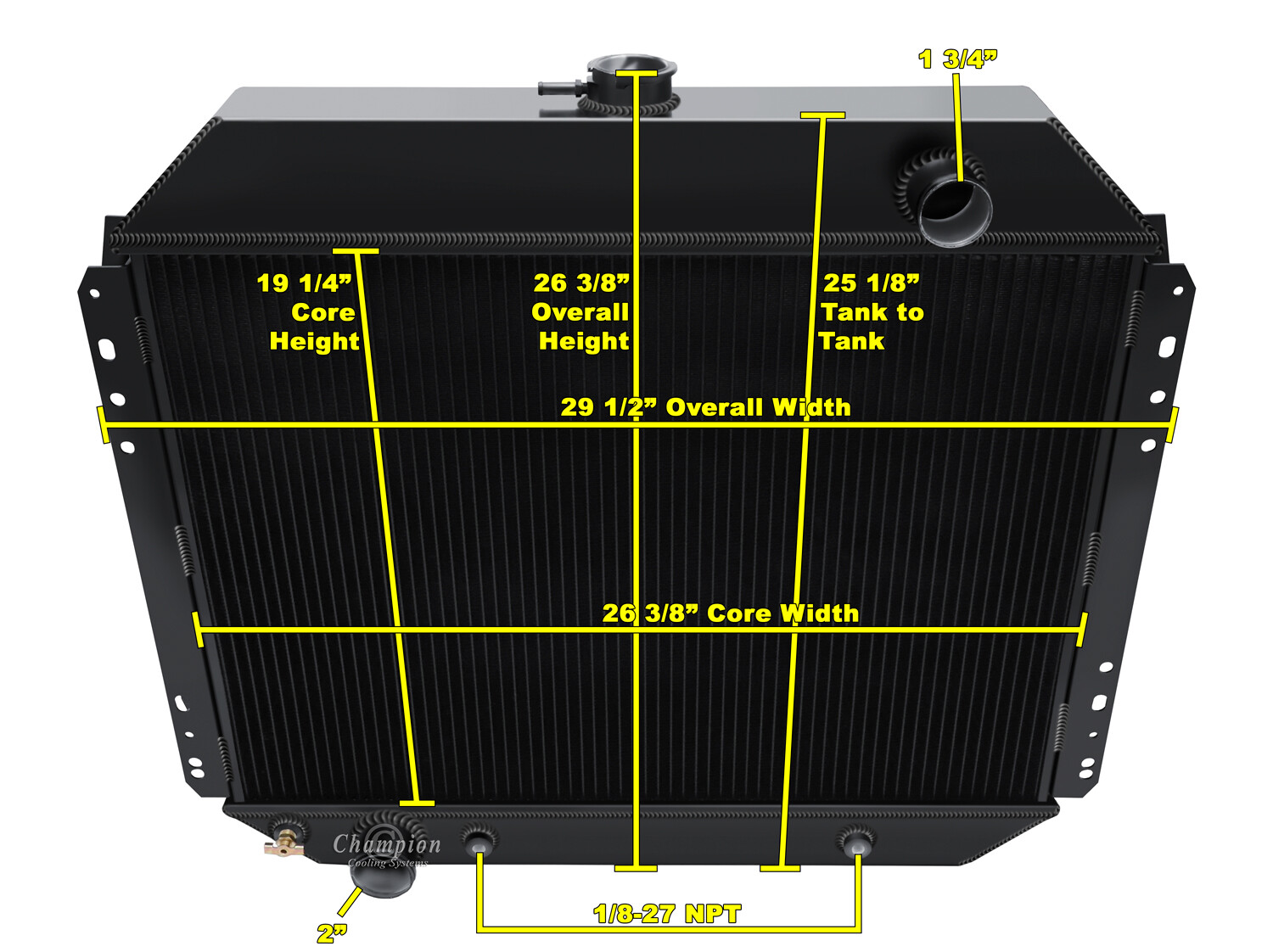

Specifications
- Down Flow Or Cross Flow Type: Down Flow
- Mounting Type: Bracket
- Tank Material: Aluminum
- Core Material: Aluminum
- Overall Height: 26 3/8
- Overall Width: 29 1/2
- Core Height: 19 1/4
- Core Width: 26 3/8
- Inlet Location: Passenger
- Inlet Diameter: 1 3/4
- Outlet Location: Driver
- Outlet Diameter: 2
- Core Row Quantity: 3 Row
- Transmission Oil Cooler Fitting Type: 1/8-27NPT
- Internal Transmission Oil Cooler: Yes
- Filler Neck Attached: Yes
- Core Thickness: 2 1/2
- Core Tube Width: 0.75
- Tank Width: 2.75
This package includes a 3 Row Black Finish All Aluminum Radiator.
