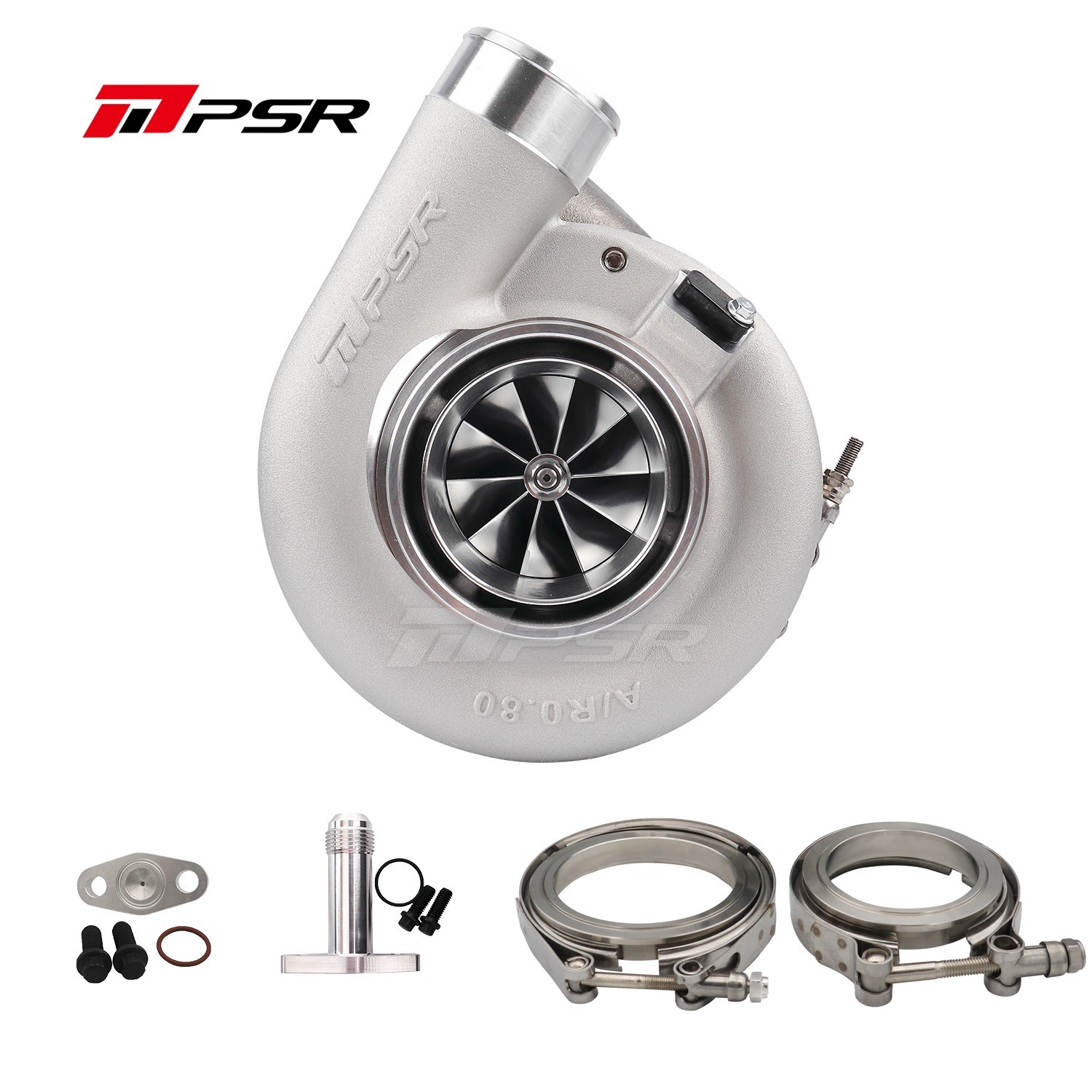

Pulsar 6270G (G40-900) T51R MOD Dual Ball Bearing Turbocharger, T4 Divided 1.06 A/R
T51R MOD Compressor Housing
This ball bearing turbocharger is a popular choice for many performance builds and rated at 900 max flywheel horsepower for piston engines. This turbo uses the latest G-Series blade technology.
Also a great fit for street ported or half-bridgeported FD/Turbo II RX-7s looking for 500-600whp.
Feel free to contact if you would like to inquire about rotary rebuilds or to discuss your turbo build.
- Dual ceramic ball bearing with steel cage provides optimal turbo response & better durability by reducing the shaft-motion
- 62mm inducer 10 Blade G-Aero billet compressor wheel with extended tapered tip technology
- 9 Blade G-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor and pressure ports
- Compressor Wheel: 62.7*88mm
- Turbine Wheel: 77*70mm
- Compressor Inlet: 4″ Hose
- Compressor Outlet: 2.5″ Hose
- Turbine Inlet: T4 divided
- Turbine Outlet: 4″ V-band
- Water Ports: -6AN
- Oil Feed Fitting(-4AN ∅ 1.65mm (0.065″) Orifice) included
- Oil Drain: -12AN (O-Ring sealed Flange Kit Incl’)
Turbine Housing: T4(Divided) 1.06 A/R
