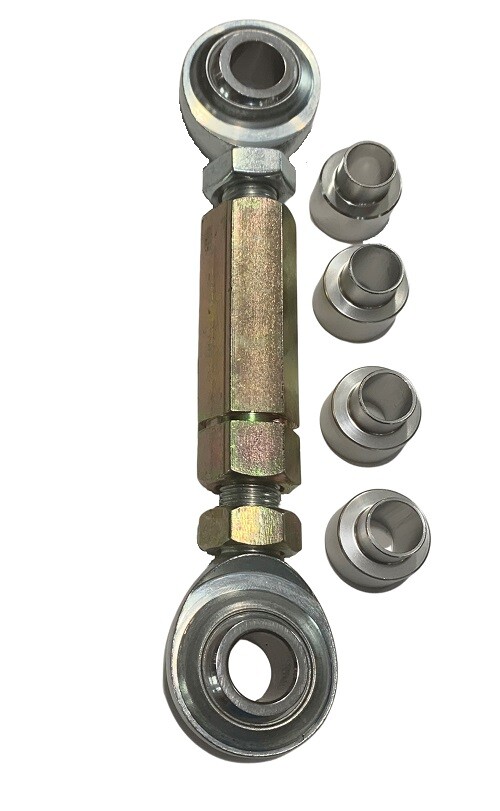

You are looking at one Pro-tek CNC billet fully adjustable lowering link kitthat replaces the single stock link on a 2007-2019 Triumph Tiger 1050.Thislink is made up of a Carbon Steel hex turnbuckle center and twohardened steel rod ends that have ball bearings with a lube-freeteflon race. It also comes with adjusting nuts to tighten down whenthe desired ride height is reached. It also has four aluminumbushings for easy fitment. These aluminum bushings inserted into therod ends make this link the same thickness as your stock link. Thismeans your stock bolts and nuts are retained and the locking elementof the nuts will still be engaged.
HardenedSteel rod ends with teflon race are used with a carbon steel centerpiece to protect against binding and seizing from metal on metalcorrosion when threading.
Thecenter hex turnbuckle is carbon steel, case hardened and then zincplated to protect against oxidation and corrosion.
FullyAdjustable Links allow you to make infinite adjustments on the flywithout having to unbolt the lowering link and disassemble the rearsuspension every time you raise or lower the bike. You simply loosenthe nuts and turn the center piece to find the desired ride heightand then re-tighten down the adjusting nuts to secure in place. Itsthat easy.
SUSPENSION LINK SPECIFICATIONS
END TO END
EYE CENTER TO EYE CENTER
MAXIMUM CLOSED
6.25 (159mm)
4.875”(124mm)
MAXIMUM OPEN
7.375” (187mm)
6.0” (152mm)
ROD END WIDTH
1.63” (41.28mm)
This kit is brand new in original packaging, manufactured in the USA, and comes complete with manufacturer warranty. These links come with infinite settings that lower the bike from 1" to 4". NOTE:NOT FOR USE WITH STRUT, AIR RIDE OR SWINGARMS LONGER THAN 8"OVER STOCK LENGTH!
**Note:For Fully Adjustable Lowering Links, you may have to loosen the topand/or bottom shock bolts (without removing) to realign with linkduring link installation. There is wiggle room in shock bolts ifshock is touching the link. However,whenadjusting the bike extremely low, some bikes may need a slight amountof material removed from the bottom of the shock mount for clearance.
The retail price for this kit is $119.95. All items will ship within 1 business day upon cleared payment and will ship US Mail. These are American made from solid billet carbon steel and stainless steel, 100% CNCmachined from a name you can trust - Pro-tek. Pro-tek is one of the leading US manufacturers in the motorcycle industry now for over 25 years. These are not cast Chinese made links that are currently flooding the internet.
