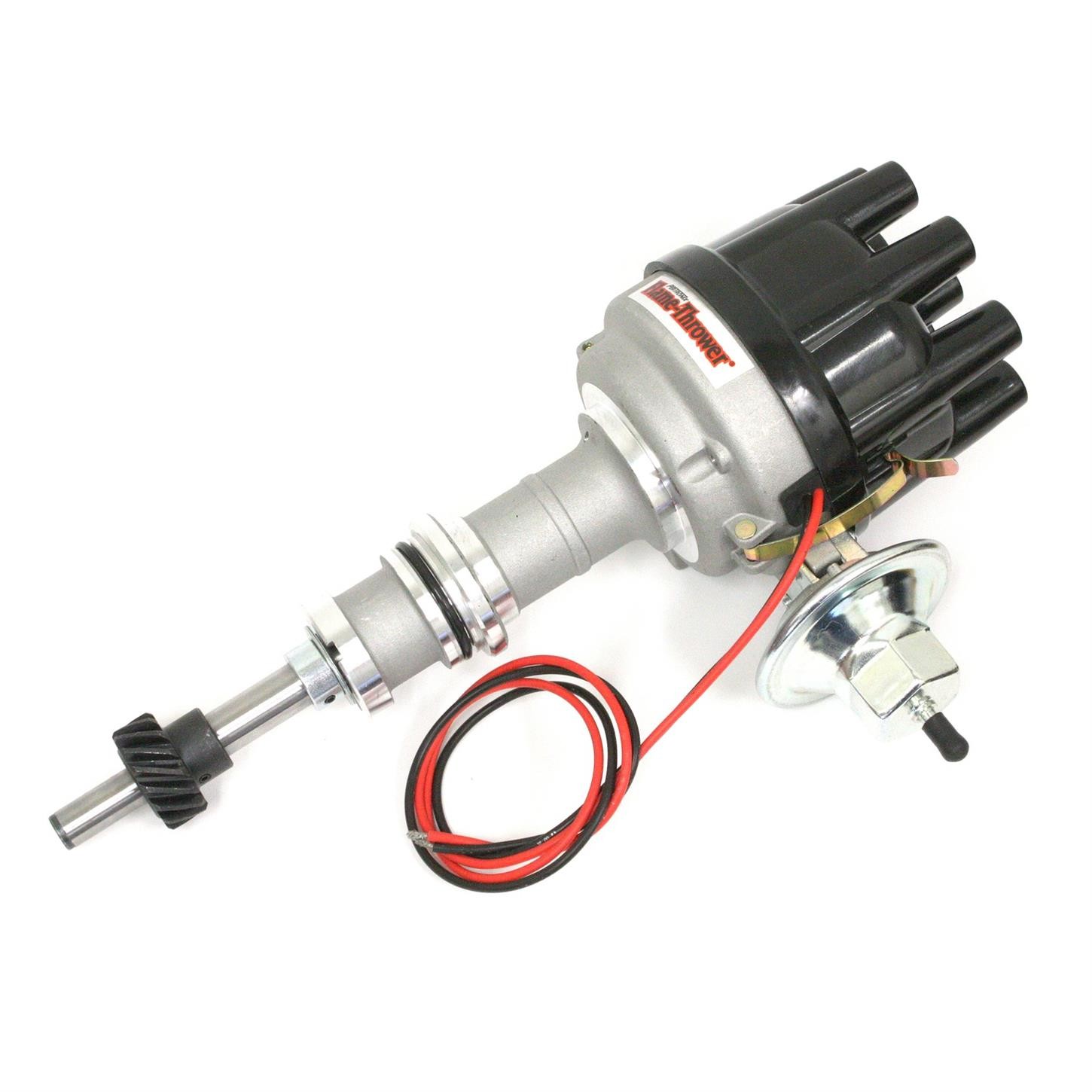

All new cast housings are molded after the original Delco distributors, Offers a tailored advance curve for optimum performance and drivability, Features adjustable vacuum canisters for extra tunability, Integrated high dielectric strength cap and rotor with brass contacts, Distributor measures 6.75" from intake to very top PerTronix D134600 Flame-Thrower Distributor, Ford SBF 221-302, Black Sku # 447D134600 Mfr. Part # D134600 Condition New Brand PerTronix Sold Each Details
Flame-Thrower Stock-Look cast distributor with Ignitor, Ford S/B, black cap
• All new cast housings molded after the original Delco distributors
• Tailored advance curve for optimum performance and drivability
• Adjustable vacuum canisters for extra tunability
• High dielectric strength cap and rotor with brass contacts
• Legal in all 50 states (C.A.R.B. E.O. #D-57-23)
• Warranty 30 months electronics / limited 1 year mechanical
6.75" from intake to very top
- PerTronix D134600 Flame-Thrower Electronic Distributor Cast Ford Small Block with Ignitor Technology Vacuum Advance Black Cap
- PerTronix D134600 Flame-Thrower Electronic Distributor Cast Ford Small Block with Ignitor Technology Vacuum Advance Black Cap
Specs External Ignition Box Required No Cap Type Socket / Female Cap Terminal Style Socket / Female Advance Type Mechanical and Vacuum Trigger Style Magnetic Hall Effect No Sync Signal No Trigger Sensors Single Gear Material Steel Gear Rotation Standard Distributor Cap Color Black Cap Diameter 3.82" Ignition Box Required No Mechanical Tach Drive No Slip Collar No Housing Material Cast Aluminum Housing Finish Natural Shaft Diameter 0.47" Emissions California EO Approved Marine Use No MFG. Part # D134600 Sold in Quantity Each Notes Includes Pertronix Ignitor I ignition module. GTIN Code 694342535964 Reviews Best choice for my 302, C4. Rated by Rodster on June 19, 2026
Summary: Runs like it should, no more points.
Yes, I recommend this product.
I would purchase again. Rated by F. Elaqua on January 19, 2023
Summary: I wanted a new electronic distributor but I wanted a vintage you look, this fits the bill!
Yes, I recommend this product.
So far so good Rated by MGB GT on December 23, 2019
Summary: Pertronix states the distributor can be used with an ignition box but provides no hook-up instructions. I am using the distributor with a Crane ignition box and found it must be connected like points would be, not like a magnetic distributor. The mechanical advance curve is not adjustable but is fairly aggressive and is very close to what I set in my old distributor. Be sure to check the Pertronix web site to see the mechanical advance curve before making a decision. It is the lowest height vacuum advance distributor available except for the Mallory Unilite, and a taller distributor will not fit in my application. Otherwise, I would have to use a mechanical advance, only, distributor. I hope it will be more reliable than my old Unilite which suffered 3 module failures in under 1000 miles, even with the Mallory surge protector. Before that, I used it for 8 trouble-free years.
Yes, I recommend this product.
