OSIAS High-Flow Inline Fuel Water Separator
7 Micron Filtration & 12 GPM Max Flow
π Ships in 3 Days β
Automotive Use Only β Performance Highlights 7 Micron Precision Ultra-fine filtration removes microscopic debris and water particles to protect injectors and fuel pumps. 12 GPM Max Flow Superior flow rate designed for high-demand fuel systems, ensuring your engine never starves for fuel.
- β Honeycomb Metal Mesh/Filter Paper Element: The internal cartridge uses a high-density honeycomb structure designed specifically for efficient water-oil separation, trapping water droplets and impurities while allowing clean fuel to flow through.
- β Dual Thread Design: Features a 1/2"-28 UNF threaded port on one end and a smooth 1/2" bore on the opposite end.
- β Serviceable Design: Includes end caps and an internal spring, allowing the housing to be disassembled for inspection or element replacement.
π Technical Specifications Overall Length 9 3/4" (approx. 24.7 cm) Outer Diameter (OD) 1.9" (approx. 4.8 cm) Inner Diameter (ID) Approx. 1.75" (4.4 cm) Filter Element Structure Honeycomb Mesh / Water-Oil Separator Filtration Rating 7 Micron Max Flow Rate 12 GPM (Gallons Per Minute) Inlet/Outlet Thread 1/2"-28 UNF (One End) Opposite End Smooth 1/2" Bore Housing Material Aluminum Alloy (Black Anodized) π Applications & Vehicle Reference Use Case Description High-Performance / Modified Core application. Designed for tuned cars, race cars, or performance builds requiring high-flow fuel delivery. Universal Gas / Diesel Can be used as an add-on inline filter for vehicles running gasoline, diesel, alcohol, or methanol blends. Specific Reference Users have fitted this to select Dodge and Jeep models, as well as Cummins 5.9L diesel engines for additional filtration. Off-Road / Equipment Suitable for tractors, construction machinery, and other off-road equipment needing robust, high-flow filtration. π¦ What's Included

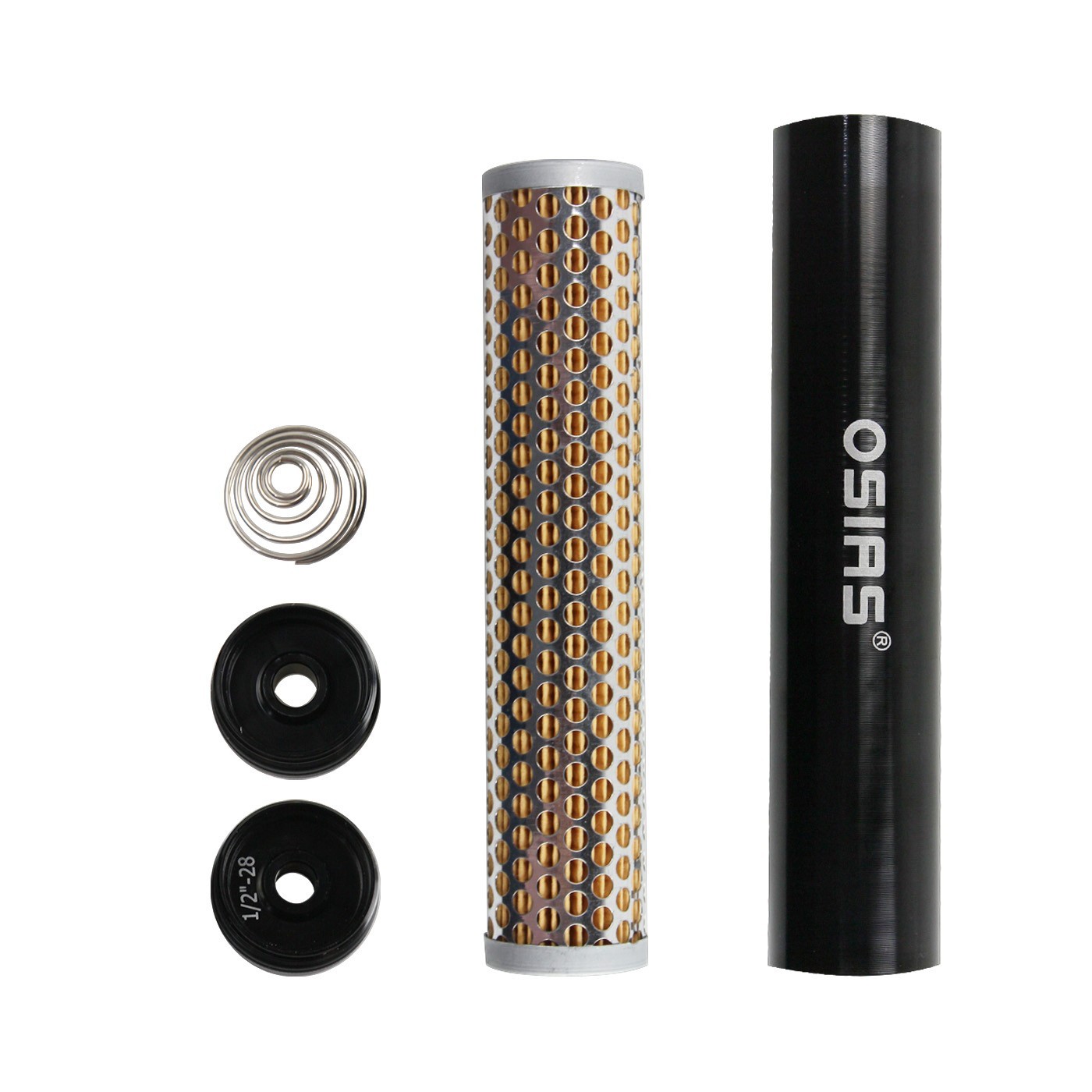

- 1x OSIAS Black Aluminum Outer Housing
- 1x High-Flow Internal Filter Element (7 Micron, Honeycomb Mesh)
- 1x Internal Spring (for element tension)
- 2x Black End Caps (One with 1/2"-28 Thread, One Smooth Bore)
π§ Installation Guide: How to Connect the Dual Ports
This fuel water separator features a Dual Port Design. Each end is intended for a different type of connection. Please check your vehicle's fuel line type before installation.
1. Threaded Port (1/2"-28 UNF)
This end has an internal thread and requires a male fitting to connect.
- For soft rubber hose: Use a 1/2"-28 UNF male to hose barb adapter. Insert the barb into your hose and secure with a clamp.
- For hard metal line: Use a 1/2"-28 UNF male to OEM adapter that matches your factory hard line.
- Note: Use PTFE tape on the threads. Do not over-tighten.
2. Smooth Bore Port (1/2" / 12.7mm)
This end is a smooth hole with NO threads. It is designed for push-in connections.
- Option A (Most Common): Use a hose barb fitting with a 1/2" outer diameter. Push it firmly into the hole, then connect your hose to the other end.
- Option B (For Modern Vehicles): Insert a matching 1/2" Quick-Connect fitting directly into this smooth bore.
β οΈ SAFETY WARNING:
DO NOT attempt to screw a threaded fitting into the smooth bore end. Forcing it will damage the housing and cause a dangerous fuel leak.
β οΈ Important Notice
This is a performance modification part (add-on inline separator), NOT an OEM replacement part.
Designed for custom fuel systems and off-road builds. This product is intended for automotive fuel systems only.
Please double-check your hose sizes and thread specifications before purchasing to ensure proper fitment.
π‘οΈ Fast Shipping & Commitment
π Dispatched within 3 business days.
πΊπΈ Shipped securely from our local warehouse.
Professional installation is always recommended.
