FCC ID#(s)
FCC ID FCCID M3N65981403
Alternate Spellings
M3N6598i403 M3N659814o3 FCCIDM3N65981403
FCC IDM3N65981403
Part #(s)
Dealer #(s)
267F-65981403
267F65981403
FOR THIS FCC ID / PART #
2005 2006 2007 05 06 07 CADILLAC STS
Button Count
5: Unlock, Lock, Car Starter, TRUNKOpener Release, Panic Alarm Horn
Battery (installed)
1; CR2032
Frequency
315 MHz (315MHz)
Programming:
Please note not all customers will be able to complete the programming on their own so if you are having trouble or unsure diagnostic programming is available at your local qualified automotive locksmith or car/audio shop.
How to Program a 2006 Cadillac STS Keyless Entry Remote Fob Smart Key
Step by Step How to Program Instructions:
Programming with Recognized Transmitter
To match a new transmitter to your vehicle when you have a recognized transmitter, do the following.Two recognized transmitters are required for Canadian owners.
1. The vehicle must be off.
2. Have the recognized transmitter and the new, unrecognized transmitter(s) with you.
3. Insert the vehicle key into the key lock cylinder located on the outside of the driver’s door.
4. Turn the key to the unlock position five times within five seconds.
5. The DIC will display READY FOR FOB #X, where X can be 2, 3 or 4.
6. Place the new, unrecognized transmitter into the transmitter pocket with the transmitter buttons facing the front of the vehicle. The transmitter pocket is inside the console bin located between the driver and front passenger seat.
7. Once the transmitter is programmed, a beep will sound. The DIC will display READY FOR #X, where X can be 3 or 4, or MAX # FOBS LEARNED.
8. Remove the transmitter from the transmitter pocket and press the unlock button on the keyless access transmitter two times.
Programming without Recognized Transmitter
The Canadian immobilizer standard requires Canadian owners to see their GM dealer for matching new transmitters when a recognized transmitter is not available. United States Owners are permitted to match a new transmitter to their vehicle when a recognized transmitter is not available. the procedure will require three ten minute cycles to complete the matching process. Do the following:
1. The vehicle must be off.
2. Place the new, unrecognized transmitter into the transmitter pocket with the transmitter buttons facing the front of the vehicle. The transmitter pocket is inside the console bin located between the driver and front passenger seat.
3. Insert the vehicle key into the key lock cylinder located on the driver’s door.
4. Turn the key to the unlock position five times within five seconds.
5. The DIC message will display OFF-ACCESSORY TO LEARN.
6. Press the OFF/ACC button (ignition switch).
7. The DIC will read WAIT 10 MINUTES and will count down to zero, one minute at a time.
8. The DIC will display OFF-ACCESSORY TO LEARN again.
9. Press the OFF/ACC button (ignition switch).
10. The DIC will read WAIT 10 MINUTES and will count down to zero, one minute at a time.
11. The DIC will display OFF-ACCESSORY TO LEARN again.
12. Press the OFF/ACC button (ignition switch).
13. The DIC will read WAIT 10 MINUTES and will count down to zero, one minute at a time.
14. A beep will sound and the DIC will read READY FOR FOB #1. At this time, all previously known transmitters have been erased.
15. Once the transmitter is recognized and programmed, a beep will sound and the DIC will display READY FOR FOB #2.
16. Remove the keyless access transmitter and press the unlock button twice to initialize it.
If you have additional transmitters to program, this process can be repeated until four transmitters have been programmed. The DIC will then display MAX # FOBS LEARNED and will exit the programming mode. When you are done programming transmitters, press the unlock button on each keyless access transmitter twice. After performing this process, transmitters previously programmed will no longer work with your vehicle and must be reprogrammed.
Condition Notes

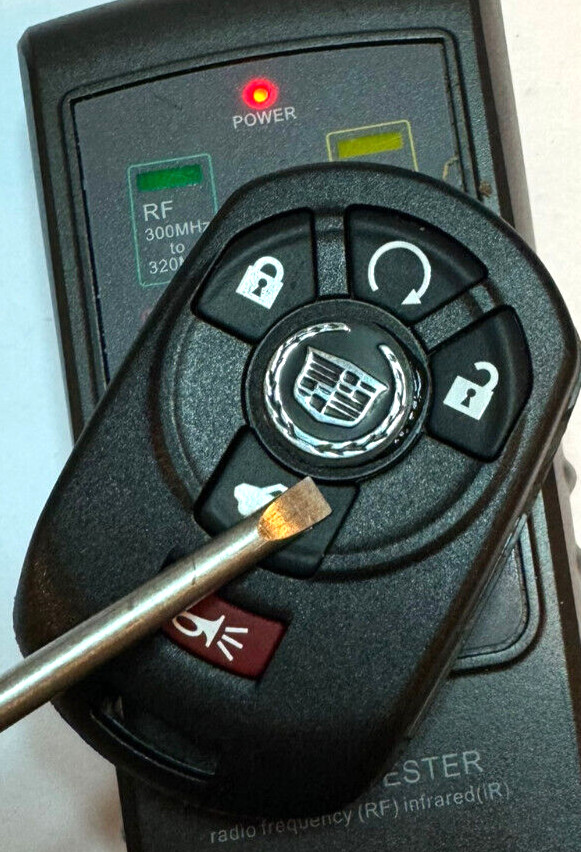

remote has Chips in Case/ SHELL see PHOTOS; Pre-Owned; ready to be programmed to your vehicle’s compatible factory installed RKE system
