Emergency vehicle electronics such as programmable data transceivers, GPS and other microprocessor-controlled devices require clean and steady DC input power. Their sensitive circuitry is highly vulnerable to voltage drop from engine start, noise and line spikes from alternators and motors, and conducted noise from various other electronic devices. NAV-PAC prevents these conditions from affecting electronics. Mobile UPS 12v backup.
- Prevents voltage \"drop-out\" to electronics during engine start
- Absorbs line \"spikes\"
- Filters out electrical interference
- Provides supplemental voltage/battery back-up for up to 15 min.
- Remote monitor panel included.

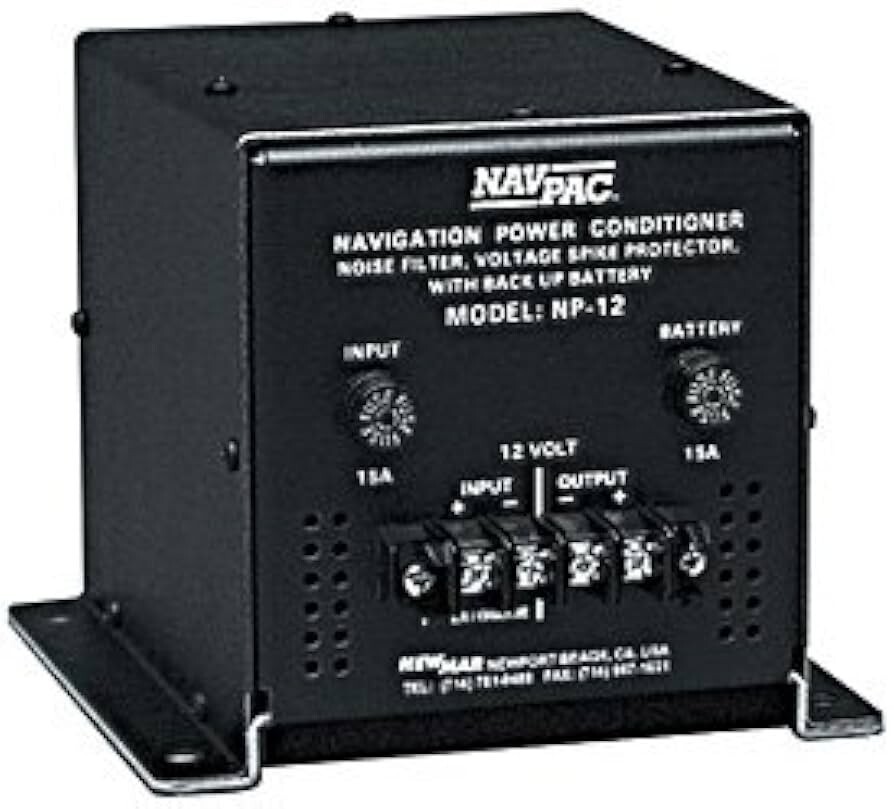

Model:NP-12
Input Voltage:13.8-14.8 VDC nominal, 15.5 VDC max.
Output:20 amps Max. @ 12 Volt
Back-Up Power:
7 Amps for fifteen (15) minutes
10 Amps for eight (8) minutes
15 Amps for two (2) minutes
Battery:Sealed Rechargeable 4.0 Amp-Hour, 5-7 years typical life, can be replaced. Low-voltage disconnect circuit protects battery from total discharge. Certified by DOT and IATA for shipment by air. Replacement battery P/N: 591-0412-0
Noise Filtering:Audio through 200 MHZ
Brand new in original factory box & packaging (Box is sealed)
Fast, same day shipping following payment
