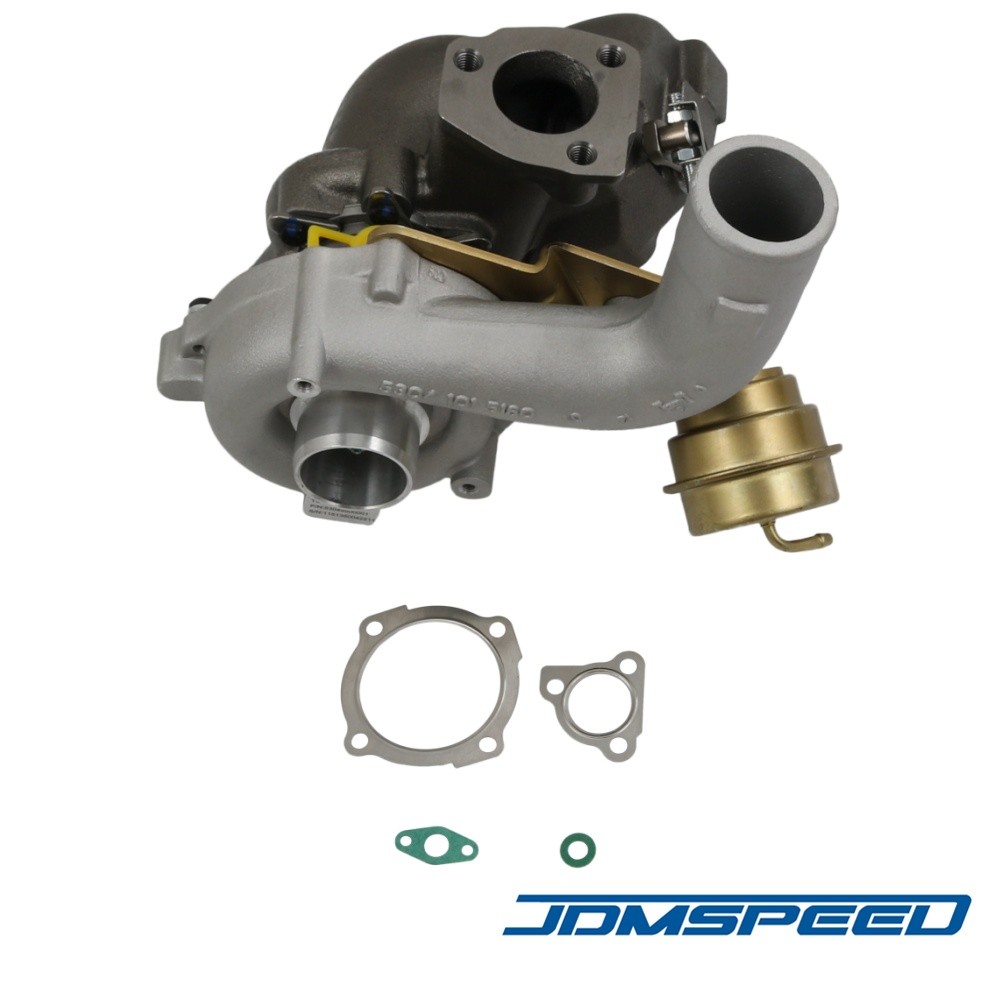

New K04-001 Upgrade 400+HP Turbo Turbocharger Fits Volkswagen Golf/Jetta 1.8T
Free Shipping to US
One Year Warranty
Fitments:
for Audi A3 upgraded Engine FT 190 4EB/4EA/4EC 1999-2009
for Audi TT upgraded Engine FT 190 4EB/4EA/4EC 2001-2009
for Volkswagen BEETLE upgraded Engine 4EB/4EA/4EC 1996-2009
for Seat IBIZA upgraded Engine 4EB/4EA/4EC 1996-2009
Note: The Car Make with K03 Model as below Need modify the intake pipe(our K04 compressor inlet is bigger than K03 model):
For Audi A3 with AGU, ALN, ARZ engine 110 KW, 150 PS 1996-2003
For Audi A3 with AUQ, ARZ, APP engine 132 KW, 180 PS 1996-2003
For Audi TT with AUQ engine 132 KW, 180 PS 1998-2006
For Seat Leon with AJQ; APP; ARY; AUQ engine 132 KW, 180 PS 1998-2006
For Skoda Octavia AUQ engine 132 KW, 180 PS 2001–2005
For Volkswagen Golf/Bora/ for Jetta with AUQ, ARZ Engine 2000-2009
For Volkswagen New Beetle with 1.8L-5V langs,along Engine 2000-05
for Volkswagen Golf Comfortline Hatchback 4-Door 2005
for Volkswagen Golf Europa Hatchback /Sedan 4-Door 2005
for Volkswagen Golf GL Hatchback /Sedan 2-Door/4-Door 2005
for Volkswagen Golf GLS Hatchback 4-Door 2005
for Volkswagen Golf GTI 1.8T / Sedan 4-Door Hatchback 2-Door 2005
for Volkswagen Golf GTI VR6 Hatchback 2-Door 2005
for Volkswagen for Jetta GL TDI Sedan 4-Door/TDI Hatchback 4-Door 2005
for Volkswagen for Jetta Trendline Hatchback 4-Door 2005
for Volkswagen for Jetta 2.5 Sedan 4-Door 2005
for Volkswagen for Jetta Comfortline Sedan 4-Door 2005
for Volkswagen for Jetta GL TDI Wagon 4-Door 2005
for Volkswagen for Jetta GL Wagon 4-Door
for Volkswagen BEETLE, for IBIZA upgraded Engine FT 190 4EB/4EA/4EC 1996-2009
Specification
Turbo Model: K04-001, KO4-001, K042075EAC4.82KCAXK, K04-2075EAC5.82KCAXK
Engine Model: 1.8L-5V transverse, 1.8L -5V quer/transversal
Engine Code: AJQ, APP, AUM, AUQ, ARY
Cooling Type: Water & Oil Cooled
Bearing Type: Journal Bearing / Floating Bearing
Thrust Bearings: 270 Degrees
Hosepower: 400HP
Turbo Type: Individual
Replace / Part Number:
K04-001 part number/OE number:
53049500001,5304-950-0001, 5304 950 0001,
53049887501,5304-988-7501, 5304 988 7501,
06A-145-705HP, 06A145705HP
IMPORTANT NOTICE:
1. This is an upgraded K04 turbo for K03-053 & K03 -052 (few modification may need for K03-052)
2. K04 -001 turbo is different from K03-052 ＆ K03-053
(1) Some modification are needed，compressor intake size is bigger than K03-052 or K03-053
K03-052 ＆K03-053 compressor intake size is 45mm
K04-001 compressor intake size is 48.7mm
(2) Silicone hose may need for K04-001 compressor intake connection.
3. Make sure your OE number is correct for K04-001,K03-052 and K03-053
K03-052 Part/OE number:
53039700052,5303 970 0052,5303-970-0052,
53039880052,5303 988 0052,5303-988-0052,
53039880094,5303 988 0094,5303-988-0094
06A145704T, 06A145713D, 06A145713DX,
06A145713DV, 06A145713F, 06A145713FX,
8299299564, 8299299564
K03-053 Part/OE number:
53039880053, 5303 970 0053, 5303-970-0053,
53039880058, 5303 988 0058, 5303-988-0058,
06A145681H, 06A145702P, 06A145704S,
06A145713B, 06A145713L, 06A145713M
Material
1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance
Features
1. OEM-quality and size with little modification
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
