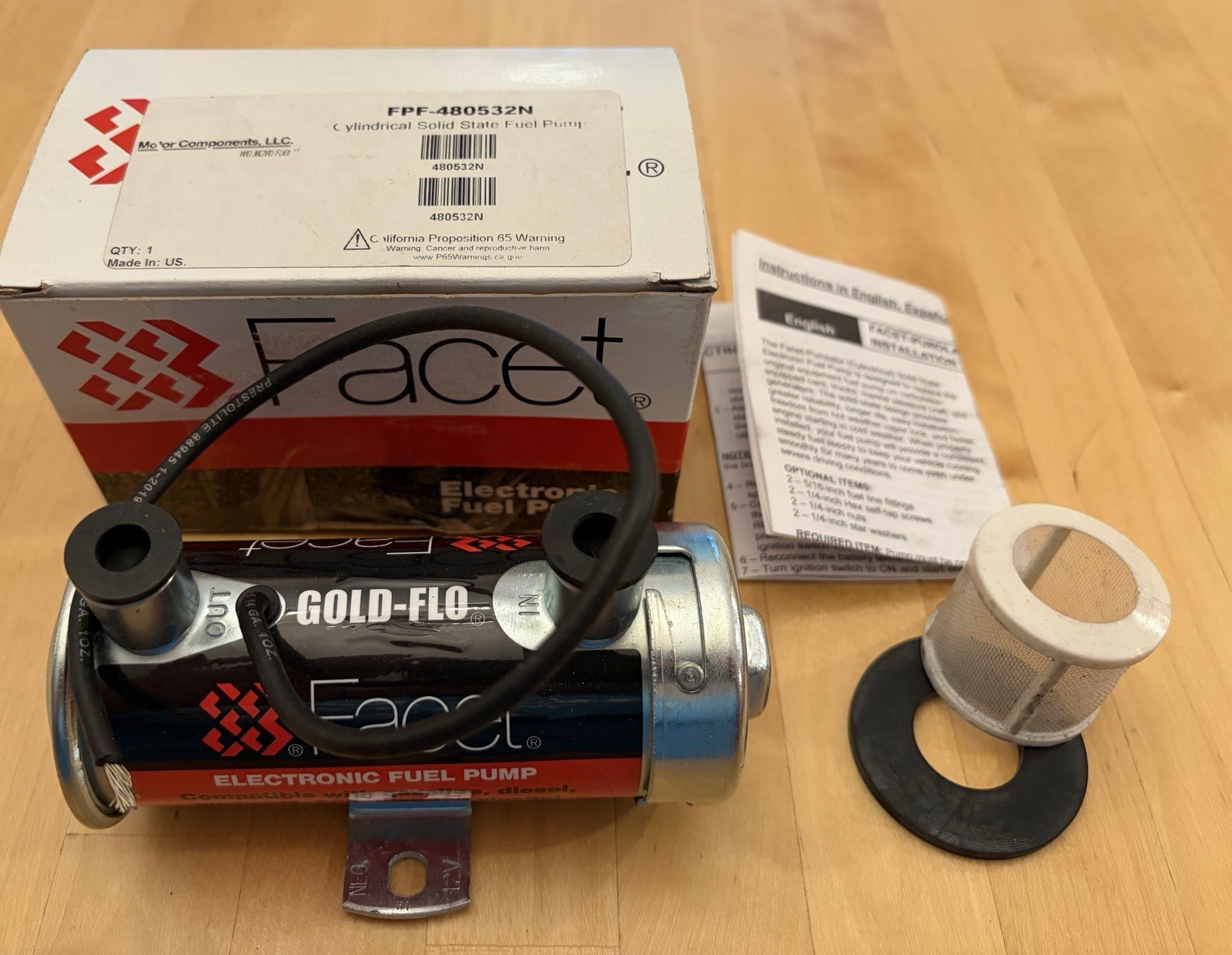

Brand new Gold-Flo Facet 480532 high performance fuel pump with 1/4NPT fittings in and out.
I am including a high flow, coarse white filter screen, and the pump has the fine mesh orange filter inside.
This was my backup pump and it was never needed. These USA made Facet pumps last and last!
For higher fuel volume requirements of engines up to 350 horsepower, the high-performance Facet Cylindrical pumps can deliver. Facet fuel pumps have low power requirements (about 1 amp at 12 volts) and operate without troublesome seals or diaphragms. Built-in pressure relief means no flooding after shutting down a hot engine. Facet pumps are compatible with gasoline, alcohol blends (up to and including E85), diesel, biodiesel, and fuel additives.
The "Red Top" model is rated for maximum fuel delivery of 45 gallons per hour. Maximum pressure 6 to 8 psi. Typical flow 38 gallons per hour at 2 psi. 1/4 NPT female ports. 24 inch vertical dry lift. Negative ground (12v) only.
This pump includes an internal 74 micron filter. No anti-siphon valve means that fuel may be pulled through this pump when the pump is turned off. Facet part number 480532(E)*. This pump can also replace the old Bendix/Facet pump number 480558.
* Note: The Facet “Interruptor” style pumps now feature reliable solid-state technology instead of points! The "E" stands for "Electronic".
