tz-autopart5357970 Fuel Filler Hose for 1978-1986 Jeep CJ5 & CJ7 with 15 Gallon TankPart Number: 5357970 / J5357970
OE Ref: Crown 5357970 · OMIX 17740.032-Piece SetFiller & Vent HoseDirect FitMeets OEM SpecificationsFuel ResistantReinforced Rubber1-Year WarrantyLimited, Against DefectsProduct Description
This 5357970 fuel filler hose set is a brand-new aftermarket replacement for 1978-1986 Jeep CJ5 and CJ7 models equipped with the 15 gallon fuel tank. It restores a leak-free connection between the fuel filler neck and the fuel tank inlet, and is manufactured to meet OEM specifications for inner diameter, length, and routing.
Original CJ filler and vent hoses are now nearly 40 years old. Age, fuel exposure, and UV light cause the rubber to harden, crack, and seep — producing a fuel smell after fill-ups, drips under the filler area, or a slow fuel leak. Because the filler hose and vent hose deteriorate at the same time, this listing supplies both hoses together so the job is done once, correctly.
Please Note: This hose is designed for the 15 gallon tank only. It will not fit 20 gallon tank applications. Hose clamps are not included.
Vehicle CompatibilityYEARMAKE / MODELFUEL TANK1978-1983Jeep CJ515 Gallon1978-1986Jeep CJ715 GallonImportant Fitment Note: On the 15 gallon tank, the filler and vent hoses are not the same across all production years. Two distinct filler neck / hose configurations were used. Please compare the shape and routing of your original hose (or your filler neck) with the photos before ordering, and message us with your model year if you are unsure. This hose is also not compatible with 20 gallon tank CJ models.SpecificationsPart Number5357970 / J5357970Interchange / OE Ref5357970, J5357970, 17740.03ConditionBrand New AftermarketComponent TypeFuel Filler Hose & Vent HoseFiller Hose I.D.1 inch (25.4 mm)MaterialReinforced Fuel-Resistant RubberFuel Tank15 Gallon OnlyClamps IncludedNo — sold separatelyQuantity in Package2 Pieces (filler hose + vent hose)Warranty1-Year LimitedPackage Includes

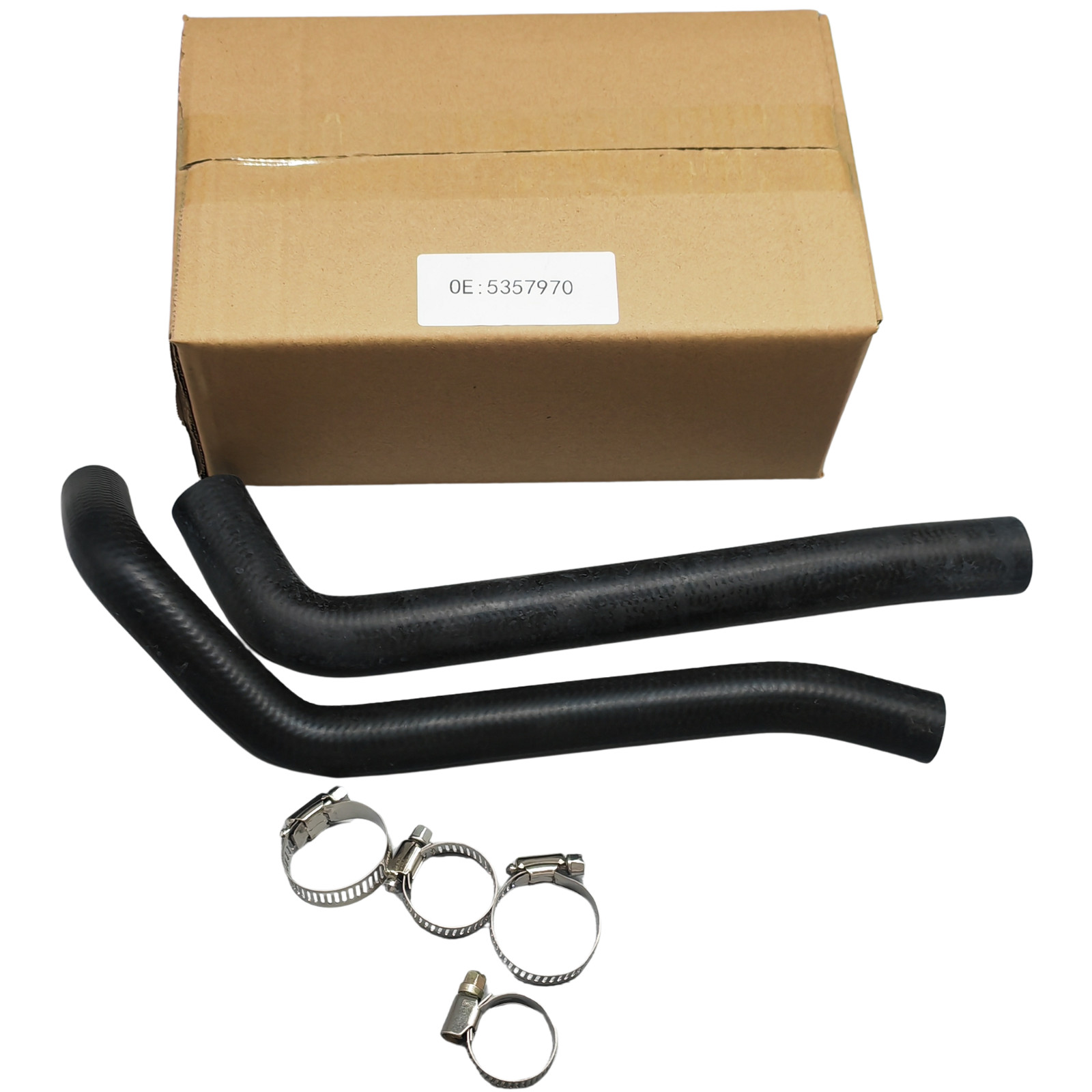

- 1 x Fuel Filler Hose (1\" inner diameter)
- 1 x Fuel Tank Vent Hose
- 4 x buckles
Note: Hose clamps, filler neck, and fuel tank are not included. Replacing the clamps with new stainless steel clamps at the same time is recommended.
Common Symptoms AddressedFuel Odor After RefuelingGas smell inside or around the vehicle, strongest just after filling up.Visible Cracks or SeepageHardened, cracked, or weeping rubber on the original filler or vent hose.Slow Fill or Spit-BackA collapsed or blocked vent hose causes the pump nozzle to shut off repeatedly.Fuel Drips Under the FillerAny active fuel leak is a safety concern — stop driving and repair it immediately.Installation Notes
- Work outdoors or in a well-ventilated area. Keep sparks and open flames away and have a fire extinguisher nearby.
- Disconnect the negative battery terminal. Relieve fuel system pressure before opening any connection.
- Loosen the clamps and remove the original filler hose and vent hose. Drain residual fuel into an approved container.
- Clean the filler neck and tank inlet fittings; inspect for corrosion or damage.
- Install the new vent hose first, then the filler hose. Route both along the original path, clear of heat sources and moving parts.
- Fit new clamps and tighten securely — snug is enough; do not crush the fitting or cut into the hose.
- Refuel and check both connections for weeping or odor before returning to normal use.
Fuel system work involves fire risk. If you are not experienced with fuel systems, have the hose installed by a qualified technician.
Shipping & ReturnsShippingOrders are dispatched within 1 business day after cleared payment. Tracking number is uploaded automatically.Returns30-Day return window on unused items in original packaging. Please contact us first for a return authorization.WarrantyCovered by a 1-Year limited warranty against manufacturing defects. Normal wear and improper installation are excluded.Frequently Asked QuestionsQ: Will this fit my 20 gallon tank CJ?A: No. This hose is made for the 15 gallon tank only. The 20 gallon tank uses a different hose set.Q: Does it include clamps?A: No. This set includes the filler hose and the vent hose only. New clamps are recommended and sold separately.Q: Is this an original Jeep part?A: No. This is an aftermarket replacement manufactured to meet OEM specifications. It is not affiliated with or endorsed by Jeep or Stellantis.Q: Do I need to replace the vent hose too?A: Yes, it is recommended. The filler and vent hoses age at the same rate, and a failed vent hose causes slow or repeated nozzle shut-off during refueling. Both are included in this set.tz-autopart — Auto Parts SupplierWe supply quality replacement parts for American, Japanese and European vehicles, backed by responsive service and a clear returns policy.Store:
