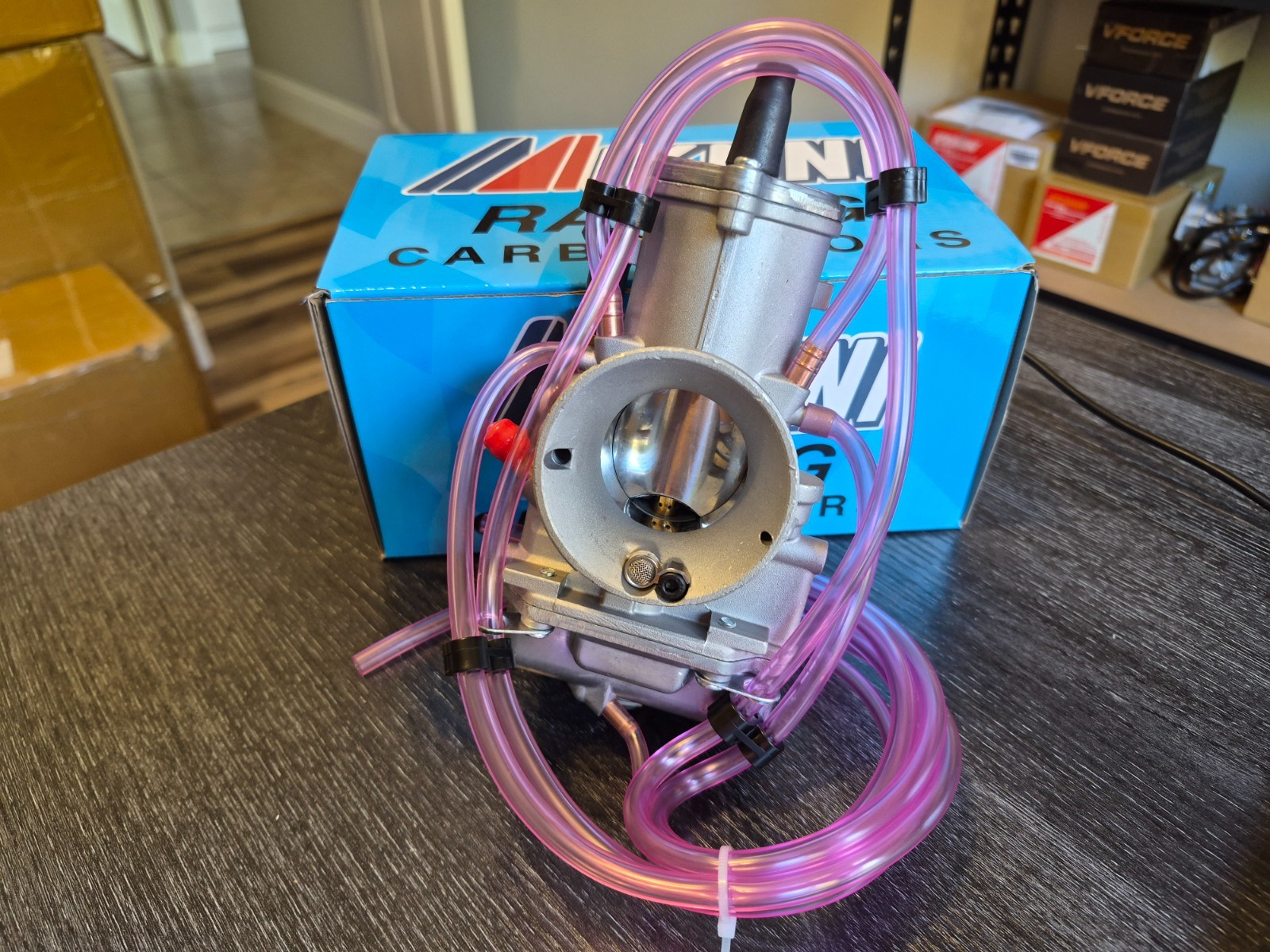

36mm Flat Slide Replacement Carburetor – CR125 KX125 RM125 YZ125
New 36mm flat-slide replacement carburetor designed for select 125cc 2-stroke motocross applications originally equipped with a 36mm TMX-type carburetor.
This is a generic aftermarket replacement carburetor and is not an OEM component. It comes pre-jetted with a #410 main jet and #40 pilot jet, providing a solid baseline for many 125cc 2-stroke 1995–2000
Carburetor Specifications
Venturi / Bore Size: 36mm
Engine Side Spigot OD: Approximately 46mm
Airbox / Filter Side OD: Approximately 62mm
Overall Length: Approximately 164mm
Overall Width: Approximately 76mm
Overall Height: Approximately 170mm
Float Bowl Width: Approximately 88mm
Float Height: Approximately 20mm
Slide: Flat-slide design
Slide Cutaway: #7
Choke: Cable operated
Idle Adjustment: External adjustment screw
Air Screw: Adjustable
Mounting: Spigot mount
Fuel Inlet: Left side
Body Material: Cast aluminum
Installed Jetting
Main Jet: #410
Pilot Jet: #40
The supplied jetting is intended as a baseline starting point. Final jetting may need to be adjusted for your specific motorcycle, exhaust system, intake modifications, engine modifications, fuel mixture, temperature, elevation and riding conditions.
Installation Notes
Please compare the dimensions listed above with your original carburetor before ordering. Motorcycle manufacturers made carburetor and intake changes between model years, and some applications may require minor adjustment during installation.
On older or hardened intake and airbox boots, gently warming the rubber may make installation easier.
This carburetor does not use a TPS or electronic carburetor connections.
Important
This is a generic aftermarket replacement carburetor. It is not manufactured, sponsored, endorsed or supplied by the original motorcycle or carburetor manufacturer.
Professional installation and final jetting/tuning are recommended for best performance.
