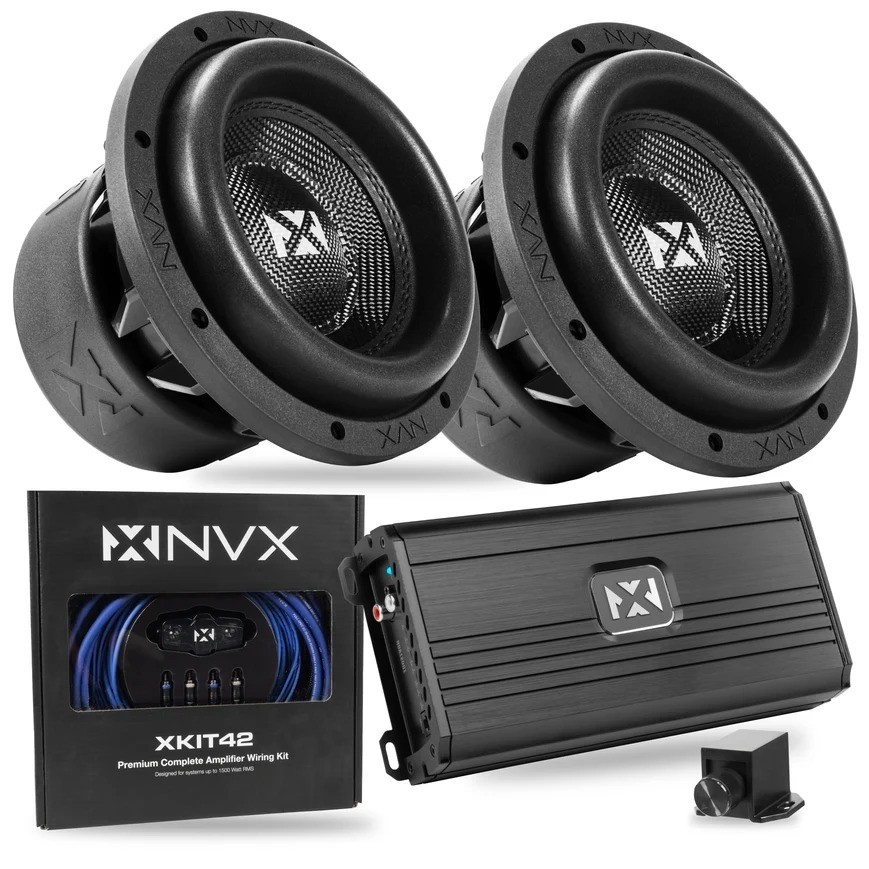

NVX VCW84v3 + NDA12001 + XKIT42 1300 Watt Peak 8â VC-Series v3 Dual 4-Ohm Car Subwoofer + Monoblock Amplifier with Remote Bass Knob with Complete 2-Channel Amplifier Wiring Kit w/ RCA for Amplifiers up to 1500 Watts 012345678910111213141516171819
1300 Watt Peak (650W RMS) 8â VC-Series v3 Dual 4-Ohm Car Subwoofer
Quantity: 2
Product Features:
- 8" Dual 4-Ohm VC-Series v3 Car Subwoofer
- Power Handling:
- Peak Power: 1300 watts
- RMS Power: 650 watts
- Impedance: Dual 4 ohm
- Xmax: 14 mm (One-way)
- Carbon Fiber Enhanced Non-Pressed Paper Cone
- Custom High Roll foam surround with black nylon stitching
- Die Cast aluminum vented basket
- Dual Progressive Roll Bolt-on Spiders with Integrated Flat Braided Tinsel Leads
- 2.5â 4-Layer High Temperature Black Aluminum Voice coil
- Optimized high-velocity pole vent
- One piece T-Yoke with vented magnet gap
- 124 oz. Triple stacked High Energy Y35 grade ferrite magnet with protective rubber boot
- Frequency response: 20-200 Hz
- Resonance Frequency (Fs): 33.60 Hz
- Optimal ported box volume: 1.0 cubic feet
- Top-mount depth: 5.31"
- Cutout diameter: 7.4"
- Sensitivity: 83dB
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
NVX VCW84v3 ownerâs manualNVX VCW84 ownerâs manual
2400W Peak (1200W RMS) N-Series Class-D 1-Ohm Stable Monoblock Amplifier with Remote Bass Knob
Quantity: 1
Product Details:
- N-Series Class D 1ohm Stable Monoblock Amplifier
- RMS Power Rating:
- 4 ohm: 500watts x 1channel
- 2 ohm: 850watts x 1channel
- 1 ohm: 1200watts x 1channel
- Total RMS power output: 1200watts
- LED Power/Protect Light
- Wired bass level remote control included
- Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)
- Signal sensing remote turn-on
- 4-way protection circuitry (thermal, overload, speaker short protection and DC offset)
- Balanced differential inputs eliminate noise picked up by signal cables
- Input sensitivity:
- Low level and High level: 0.2 - 10volts
- Frequency Response: 20 - 250Hz
- Total Harmonic Distortion (THD): 96dB
- Variable low-pass filter: 50 - 250Hz
- Subsonic filter: 10 - 55Hz
- Variable Bass Boost: 0 - 18dB
- 4AWG gauge amplifier wiring kit is recommended for installation
- Dimensions: 9.37" L x 4.42" W x 1.73" H
- Authorized Internet Dealer
- 1 Year Manufacturer's Warranty
- MFR #: NDA12001
Full Spec 4 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 1500 Watts
Quantity: 1
Product Details:
- 4 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
- Designed for car audio systems up to 1500 watts RMS
- Made from 100% Oxygen-Free Copper (OFC)
- Tinned conductors for corrosion resistance
- Pre-installed black nylon mesh covering protects the power wire from damage
- Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
- Pre-terminated seamless power and ground ring terminals provide reliable performance
- Full spec power and speaker wire meet or exceed American Wire Gauge standards
- CEA-2015 and BC5W2 compliant
- V-Series RCA Interconnect Cable
- Shielded noise-rejecting coaxial construction provides protection against interference
- Split-tip silver-plated ends offer high-quality performance
- Molded ends equipped with colored channel identifiers for easy recognition
- Twisted-pair construction featuring two conductors per channel
- Includes an assortment of wire termination hardware and cable ties
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Kit includes:
- 17 ft. Frosted Blue 4 gauge power wire with seamless crimp ring terminal
- 3 ft. Frosted Black 4 gauge ground wire with seamless crimp ring terminal
- 17 ft. Clear 18 gauge remote lead wire
- 20 ft. Frosted Black/Blue 16 gauge speaker wire
- One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
- One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 100 amp Mini-ANL fuse
- One Black rubber firewall grommet
- Two 4 Gauge Nickel Plated spade terminals
- Four 18 Gauge Spade terminal
- Two 18 Gauge Red butt connectors
- Four 16 Gauge quick disconnect
- Five 16 Gauge Nickel Plated spade terminals
- Two Heat Shrink tubes with the NVX logo
- Ten 6" Black zip ties
