NEW Heater Pipe 19510-R40-A60 For 2011-14 Honda CR-V Accord Crosstour Acura TSX For Sale - New and Used

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

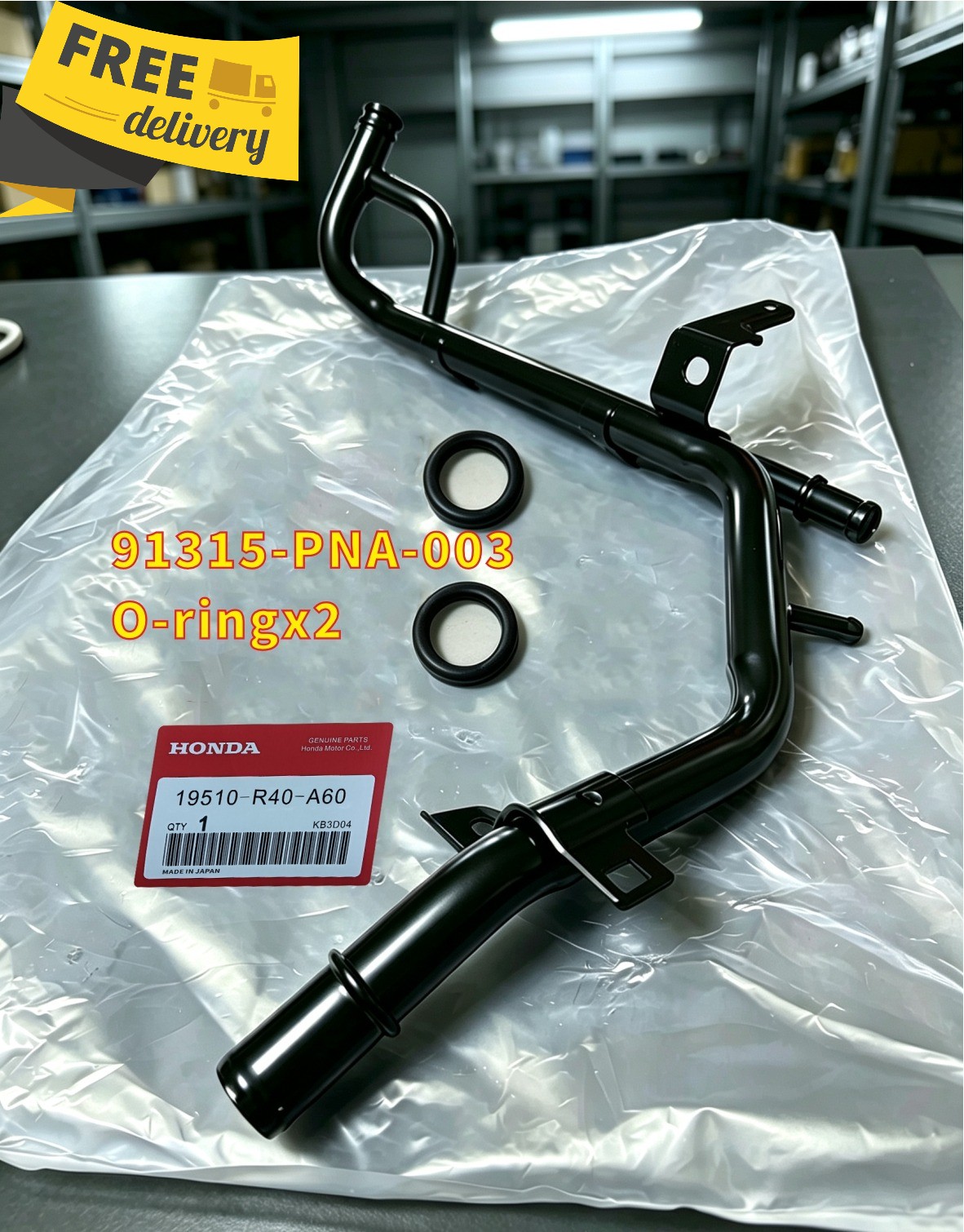

NEW Heater Pipe 19510-R40-A60 For 2011-14 Honda CR-V Accord Crosstour Acura TSX:
$49.00

Store CategoriesStore Categories

clock spring
ignition coil
spark plug
screw
filter element

📋 Cross Reference Part Numbers Part Number 19510-R40-A60 Dashless Part Number 19510R40A60 Superseded Factory Part 19510-R40-A50 (100% official direct interchange) Matching Seal O-Ring 91315-PNA-003 (2 pieces included) Installation Type Direct Plug-In with bolt-on mounting brackets System Category Engine Cooling System / HVAC Heater Circuit 📐 Exact Dimension & Weight Data

Net Weight of Pipe Assembly: Approx. 0.42 kg / 0.93 lbs
Packaged Gross Weight (with seals): Approx. 0.55 kg / 1.21 lbs
Package Dimensions: 40cm × 15cm × 10cm / 15.7" × 5.9" × 3.9"
Factory standard interface diameter, fully matched with original rubber hoses

🏭 Raw Material Construction

Main Pipe Body: High-grade low-carbon steel with integral welded construction
Surface Treatment: Black electrophoretic coating, anti-corrosion & high temperature resistant
Included O-Ring Seals: Coolant-resistant NBR rubber for long-term sealing
Mounting Brackets: Integrated stamping steel, consistent with factory hole spacing
Reinforced welding joints to resist engine vibration and thermal expansion

🔧 Mount Location & Product Features

This heater bypass pipe mounts on the rear side of the engine cylinder block, under the intake manifold in the engine bay. One end connects to the cylinder head / thermostat housing outlet, the other end connects to heater core hoses through the firewall, delivering hot coolant to the cabin HVAC system.

Anti-rust electrophoretic finish for long service life under engine bay conditions
Comes with 2 replacement O-rings for a complete installation
No modification or adjustment required
Restores proper coolant flow to heater core and fixes coolant leak issues

📦 Package Contents Included

1 × Engine Heater Coolant Bypass Pipe Assembly
2 × Pre-matched O-Ring Seals (91315-PNA-003)
