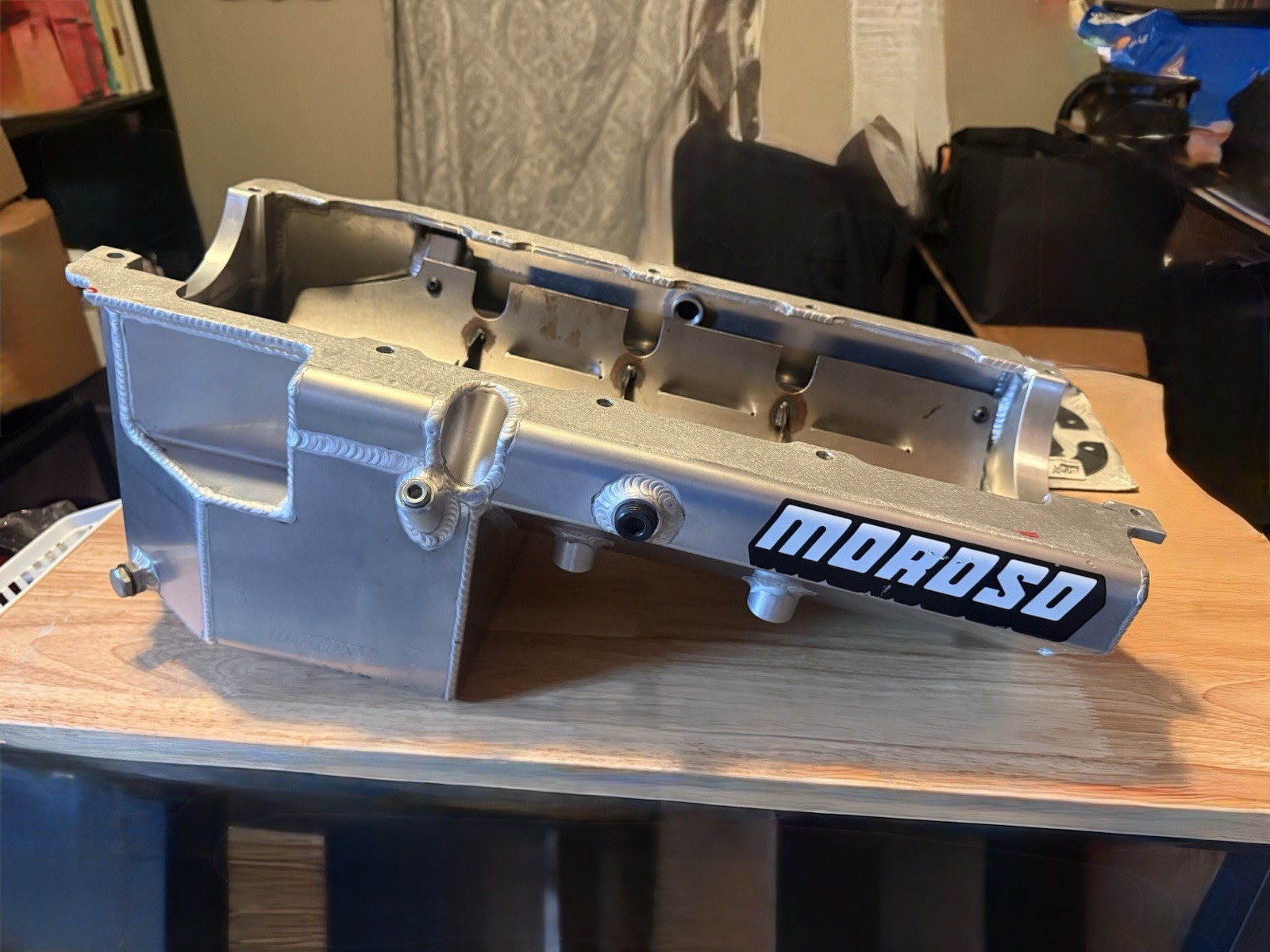

Have had this sitting in another box for years. It’s been moved around but never used. Could scratchs and few minor scuffs but all cosmetic. Message for any questions.
20485
Part Type:
Oil Pans
Product Line:
Moroso Drag Race Pans
Summit Racing Part Style:
Wet
Oil Pan Style:
Drag Race
Rear Main Seal Style:
2-piece
Sump Location:
Rear
Oil Pan Capacity:
7.00 quarts
Stroker Clearanced:
Yes
Maximum Stroke with OE Rod:
4.750 in.
Dipstick Provision:
No
Dipstick Included:
No
Oil Pan Depth (in.):
8.000
Oil Pan Material:
Aluminum
Oil Pan Out:
Yes
Kickout Position:
Driver and passenger side
Windage Tray Included:
Yes
Pickup Included:
No
Oil Pump Included:
No
Oil Pump Driveshaft Included:
No
Crank Scraper Included:
No
Drain Plug Thread Size:
1/2 in.-20
Gaskets Included:
No
Hardware individually.
Notes:
4.750 in. stroke w/aluminum rods.
