ConditionUsed / Open Box ComboGenuine Mishimoto cooling fan setup. The 14-inch MMFAN-14 electric fan was used for less than one week. One end of the fan wiring was cut during the previous installation and will require a new 2-pin connector or direct wiring/splicing for installation. The Mishimoto adjustable fan controller is open box but unused and includes its wiring harness and related installation components as pictured. Also includes a new Derale 13001 mounting kit. Please review all photos carefully. You will receive the exact items shown.DescriptionMishimoto 14” Universal Electric Cooling Fan + Adjustable Fan Controller + Mounting KitComplete universal electric cooling fan package ideal for custom radiator, engine swap, performance cooling, auxiliary cooling, race car, hot rod and custom automotive applications.Included:* Genuine Mishimoto MMFAN-14 14” slim electric fan
* Genuine Mishimoto MMFAN-CNTL-UPROBE adjustable fan controller
* Controller wiring harness and accessories shown
* Temperature push-in probe
* Relay/controller assembly
* Derale Performance 13001 Insta-Mount kit
* Mounting hardware/components shown in photosFan specifications:Mishimoto Part Number: MMFAN-14
Diameter: 14 inch
Voltage: 12V
Airflow: 1300 CFM
Speed: 2200 RPM
Running Current: 7.8A
Startup Current: 15.1A
Blade Style: Straight Blade
Standard Airflow Direction: Puller
Slim DesignThe MMFAN-14 is a universal-fit slim electric radiator fan designed to provide high airflow while requiring minimal engine-bay clearance. Mishimoto lists the fan at 1300 CFM and approximately 2.5” depth. Controller specifications:Mishimoto Part Number: MMFAN-CNTL-UPROBE
Universal 12V Application
Adjustable Activation Temperature: 150°F–240°F
Automatic shutoff approximately 10°F below activation temperature
Built-in A/C override capability
Designed for one or two electric fans up to 25A combined draw. IMPORTANT WIRING NOTE:One end of the wiring on the fan was cut during its previous installation because the fan had been hardwired directly into a controller.Nothing is damaged internally because of this modification; however, the buyer will need to:* install a suitable 2-wire connector, or

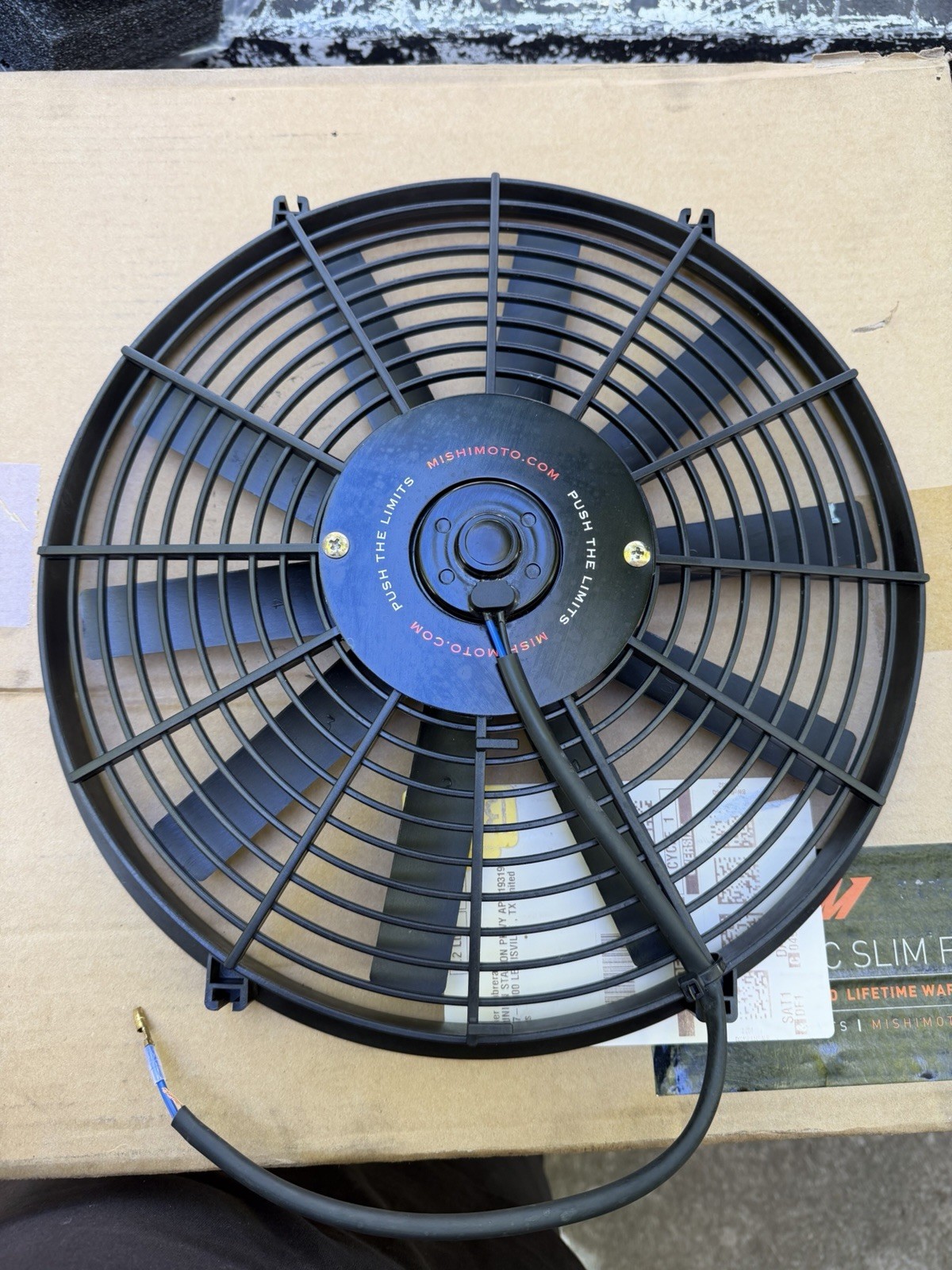

* wire/splice the fan directly into their application.Please see the close-up photo showing the blue and black wires.Condition:The fan itself was installed and used for less than one week.The Mishimoto controller is open box / unused.The Derale mounting kit is new.Some packaging may show shelf/storage wear.This is a universal performance cooling setup, so the buyer is responsible for verifying dimensions, electrical requirements and installation compatibility with their vehicle.Exact items pictured are included.Item SpecificsBrand: MishimotoType: Electric Radiator Cooling Fan KitManufacturer Part Number: MMFAN-14Controller Part Number: MMFAN-CNTL-UPROBEMounting Kit Part Number: Derale 13001Fan Diameter: 14 inVoltage: 12 VAirflow: 1300 CFMFan Speed: 2200 RPMRunning Amp Draw: 7.8 AStartup Amp Draw: 15.1 ABlade Style: StraightAirflow Direction: PullerController Type: Adjustable Temperature ControllerTemperature Range: 150°F–240°FA/C Override: YesUniversal Fitment: YesPerformance Part: YesVintage Part: NoItems Included: Fan, Controller, Wiring Harness, Temperature Probe, Mounting KitCondition: Fan Used / Controller Open Box Unused / Mounting Kit NewUPC Controller: 748354013726UPC Fan: 748354797169KeywordsMishimoto electric fan
