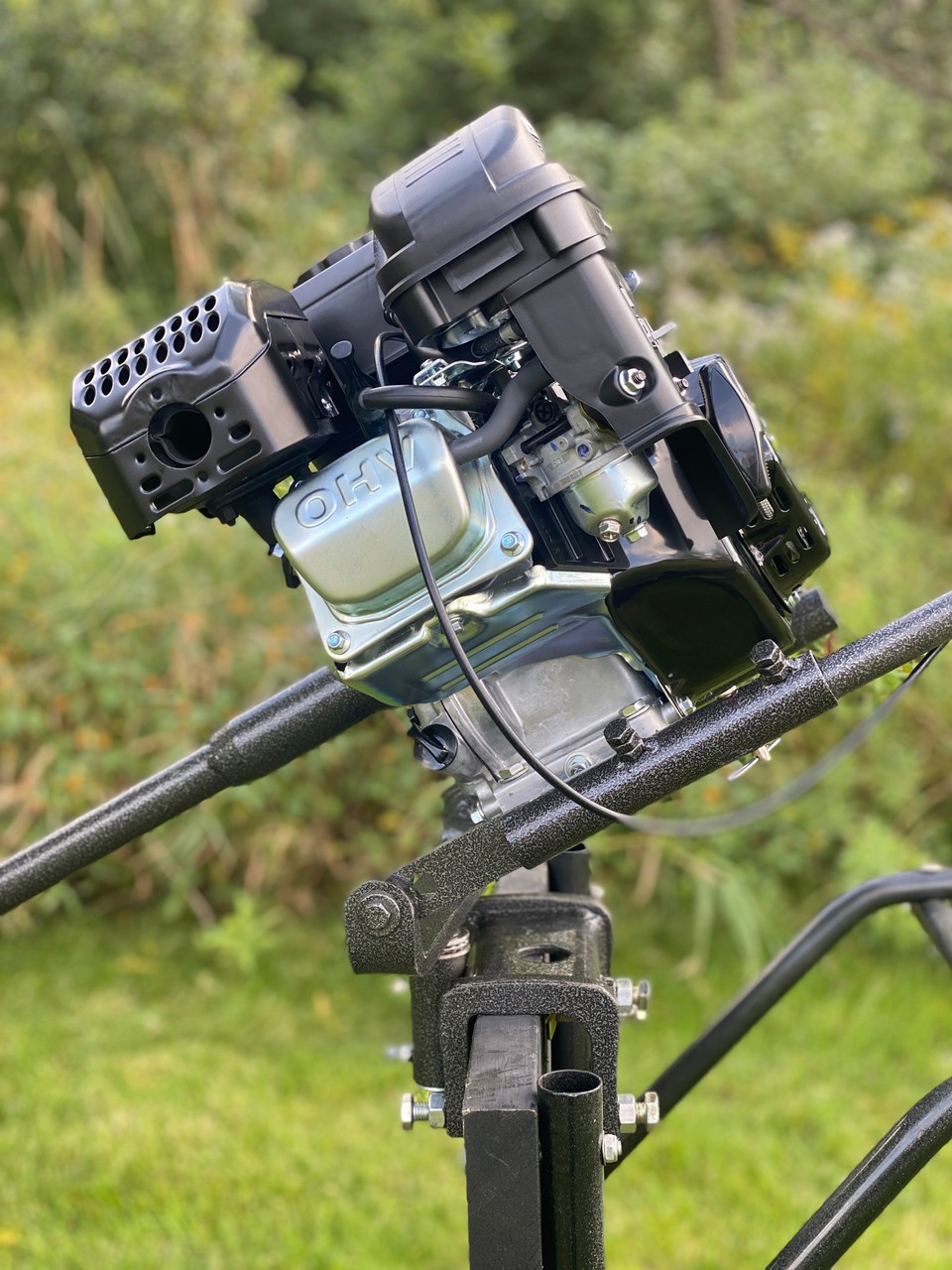

The Mud-Skipper 4-7hp Long Tail Motor Drive System
The long tail shaft separates into two pieces making transport easier and makes shipping to you less expensive at the same time!
The Kit Includes:
- 2 Piece - 85" Long Solid Steel Driveshaft with Sealed Roller Bearings and Oil Seal
- Entire mud motor powder coated HAMMER TONE grey
- Includes 7HP Engine With Electric Start
- PTO Housing Features Hardened Steel Coupler and pre-installed key
- PTO Housing, PTO Shaft and Long Tail Shaft are one piece - eliminating multiple assembly steps
- Redesigned Transom Mount with Hardened Bolts and Cups - Locks at 5 different points
- Engine Mount Base - with Grade 5 Bolts and nuts
- Transom Pivot Bearing
- Multiple Grease Points
- "Z" Style Adjustable Tiller Handle - Right and Left Hand Steering Option
- 6.5" Diameter Stainless Propeller
- Stainless Steel Throttle Cable & Cantilevered "Brake" Style Aluminum Throttle Control Lever
- Push Button & Tethered Safety Kill Switch
- Overall Length 122"
- Tiller Length 42"
- Weighs 53lbs (Before adding engine weight)
- No Welding or Fabrication - requires only basic hand tools!
- This long tail kit is designed for sneak boats, canoes, layout boats, jon boats etc.
Newly Designed Transom Mount - Grade 8 Hex Bolts & CupsTransom Mount is 4" Deep and 2.75" Wide
The Engine Mount
The four bolt holes fit most engine bases up to 7.5hp
The tiller handle attaches to either side. Multiple engine balance settings.
The PTO Shaft Connector
The PTO Housing fits over the engines crankshaft. PTO housing, PTO shaft and long tail are
all connected, eliminating multiple assembly steps!
The Drive Housing
The housing is bolted over the engine's drive shaft (crankshaft)
Engine Horizontal Keyed Shaft
30 Day Limited Warranty
ENGINE TYPESINGLE CYLINDER 4-STROKE OHVBORE X STROKE70 x 55 mmDISPLACEMENT212ccCOMPRESSION RATIO9.0:1NET POWER4.4 kW / 3600 RPMNET TORQUE12 N.m / 2500 RPMPTO SHAFT ROTATIONCOUNTERCLOCKWISEIGNITION SYSTEMTRANSISTORIZED MAGNETO IGNITIONSTARTING SYSTEMRECOIL / ELECTRIC STARTCARBURETORFLAT SUCTION VALVE CARBURETORLUBRICATION SYSTEMFORCED SPLASHGOVERNOR SYSTEMCENTRIFUGAL MECHANICALAIR CLEANERDUAL ELEMENTS (PAPER OR FOAM)OIL CAPACITY.58 QTSFUEL TANK CAPACITY3.8 QTSDIMENSIONS (LxWxH)15.3" x 12.6" x 13.5"NET WEIGHT35 lbsFUEL CONSUMPTION< 395 G/KW H
The Throttle Linkage Switch Two Year Warranty:
If, within TWO years from the date of purchase your longtail mud-motor kit fails due to a defect in materials, or workmanship, we will repair or replace, at our discretion, any part that we determine to be defective in materials or workmanship, free of charge. If the product fails, the buyer must contact Mud-Skipper for an RMA prior to returning the product. Failed parts must be returned for inspection. Shipping expenses for any item submitted for repair or replacement under this warranty are the responsibility of the owner of the item. Mud-Skipper will provide return shipping of the repaired or replaced part to the customer via UPS, USPS parcel post, or other freight carrier of our choice (additional charges for expedited return shipping to the buyer is the responsibility of the buyer). This warranty does not cover damage due to impact, normal wear, excessive wear to the shaft or shaft bushings due to lack of lubrication, neglect, corrosion, lack of maintenance, modification to the product, or misuse. The customer will be responsible for the shipping costs of any item returned to them that is not covered under warranty. This warranty is provided to the original purchaser. Proof of original purchase is required on all warranties, exchanges, and returns. Electrical parts ARE covered under this warranty. Propellers ARE NOT covered under this warranty.
