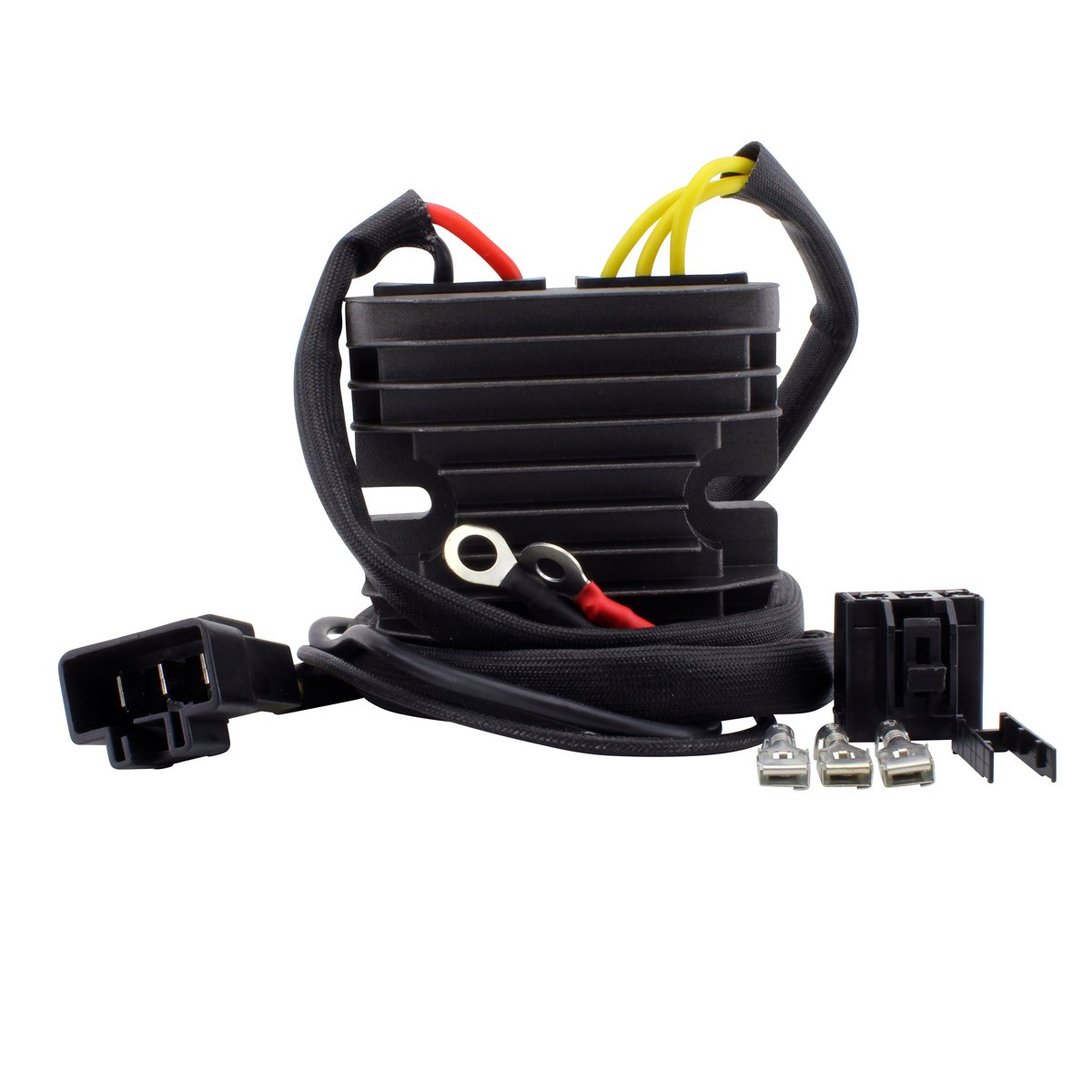

MOSFET Voltage Regulator Bypass for Honda CBR 600 / 900 / 929 RR / VFR 800 2000-2009 | OEM 31600-MCJ-641 / 31600-MBW-D21 KEY FEATURES
Brand new mosfet voltage regulator rectifier
Higher grade of electric components
Improved heat sink and charging capabilities
Direct replacement to your original unit
All products shipped are tested
DESCRIPTION
Battery condition is extremely important. No voltage regulator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
This regulator fits mostly European models or vehicles with the regulator mounted away from the battery. The connection system is different from the original and has been redesigned to bypass bad connections and wiring.
Brand new Mosfet voltage rectifier regulator STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- The quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components
- All shipped products are tested
All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
Why use Mosfet Enhanced technology?
Runs cooler
Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas
Less load on the stator, less work, less fuel is used and you save.
Regulated energy
The power charging your battery is steadier and smooth.
Extended battery life
Extends the battery’s life and cold cranking capacity.
More engine power
Removes stator load resulting in more engine power.
Optimized power
Optimize power delivery by switching the stator coils on or off.
How does a Mosfet regulator rectifier product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
Vehicle models fitment
Honda CBR 600 F4i -- 2001-2004
Honda CBR 900 RE -- 2001
Honda CBR 900 RR -- 2001-2002
Honda CBR 929 RE -- 2001
Honda CBR 929 RR -- 2000-2001
Honda VFR 800 Interceptor -- 2002-2009
OEM part :
Width : 95 mm
Length : 90 mm
Height: 30 mm
Fixation holes center to center : 75 mm
Wires length: 811 mm & 350 mm
Other specifications :
Number of plugs : 2
Number of pins : 5
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20? to 85?
instructions
Before installing your new Mosfet Voltage Regulator Rectifier :
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Warning:
Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.
