Features
- LOGIQ AirIQ SD2 2-channel air management system
- Standard-duty air compressor
- Independent control of two air springs
- Bluetooth control via AirIQ smartphone app
- 150 PSI maximum pressure
- 2.03 CFM @ 0 PSI
- 25% duty cycle @ 100 PSI
- 12V operation
- 30A current draw
- Pre-assembled for easier installation
- Universal frame mounting brackets
- 20 ft. 1/4\" air line included
- 20 ft. wiring harness
- 18 ft. wire loom
- Designed for load-leveling air suspension and helper bags
- Lifetime warranty on the system; compressor warranty is 2 years according to LOGIQ
Description

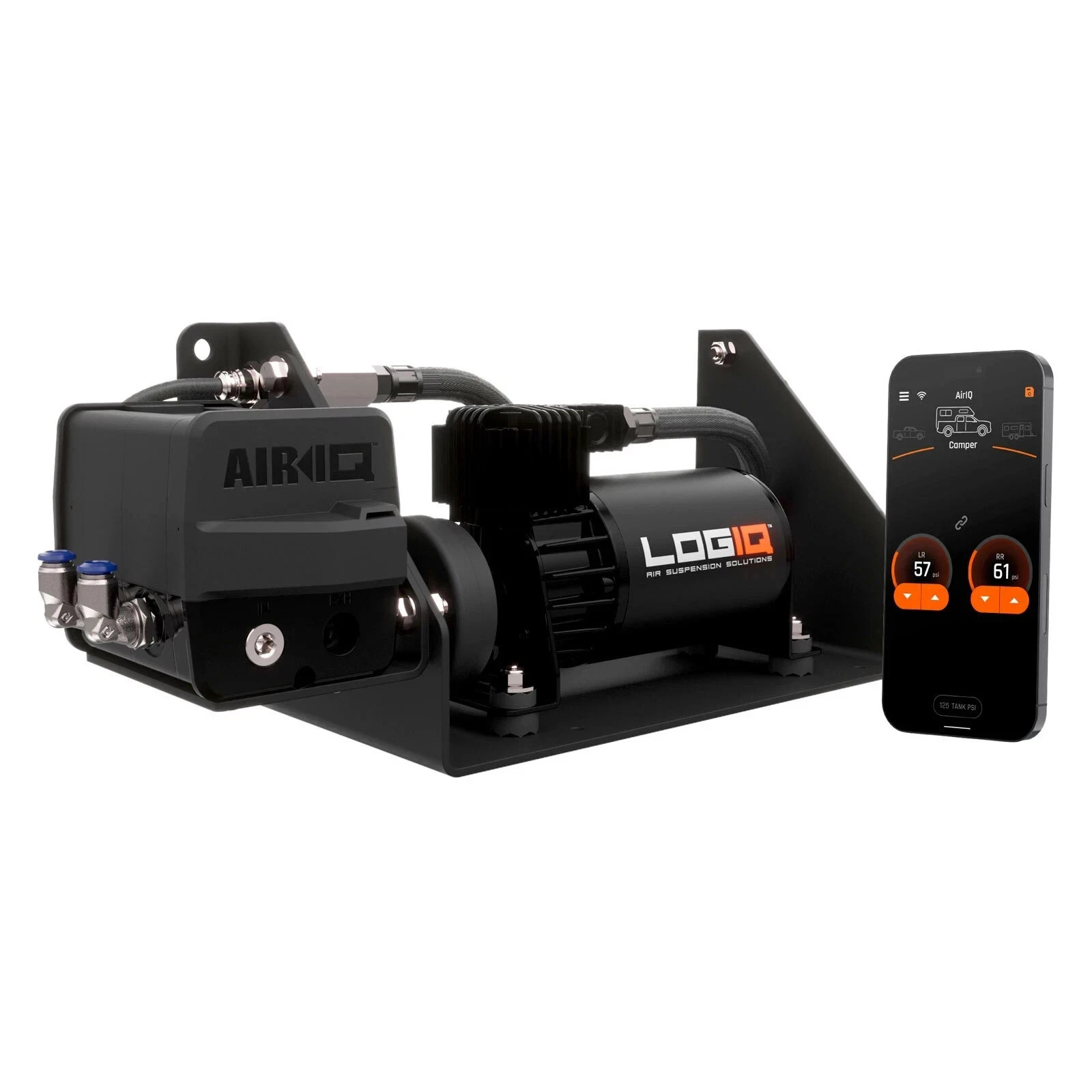

The LOGIQ AirIQ SD2, part number 50-41200, is a pre-assembled 2-channel air management and compressor system designed for load-leveling air suspension and helper air bags. The dual-channel design allows independent control of the two air springs, making it possible to compensate for uneven or offset loads.
The system uses a 12V, 150 PSI standard-duty compressor rated at 2.03 CFM at 0 PSI and a 25% duty cycle. Air pressure can be controlled wirelessly through the AirIQ Bluetooth smartphone app, with support for saved presets for different loads or driving conditions. SD2Part Number50-41200System Type2-Channel Air ManagementCompressorStandard DutyMaximum Pressure150 PSIOutput2.03 CFM @ 0 PSIDuty Cycle25% @ 100 PSIVoltage12VCurrent Draw30AControlBluetooth / AirIQ AppAir Channels2Air Line20 ft. 1/4\"Wiring Harness20 ft.Wire Loom18 ft.Compressor IP RatingIP54Other ComponentsIP67MountingFrame MountMounting HardwareIncludedApplicationAir Bags / Load-Leveling SuspensionUPC194933307975
Kit includes: AirIQ SD2 management system with pre-installed wiring, four frame mounting brackets and hardware, 20 ft. of 1/4\" air line, fuse taps and 18 ft. wire loom.
Important: This is an air management/compressor kit; the air springs themselves are not included. It is designed to work with compatible helper bags/air springs.
