Stock photo shown
New in box

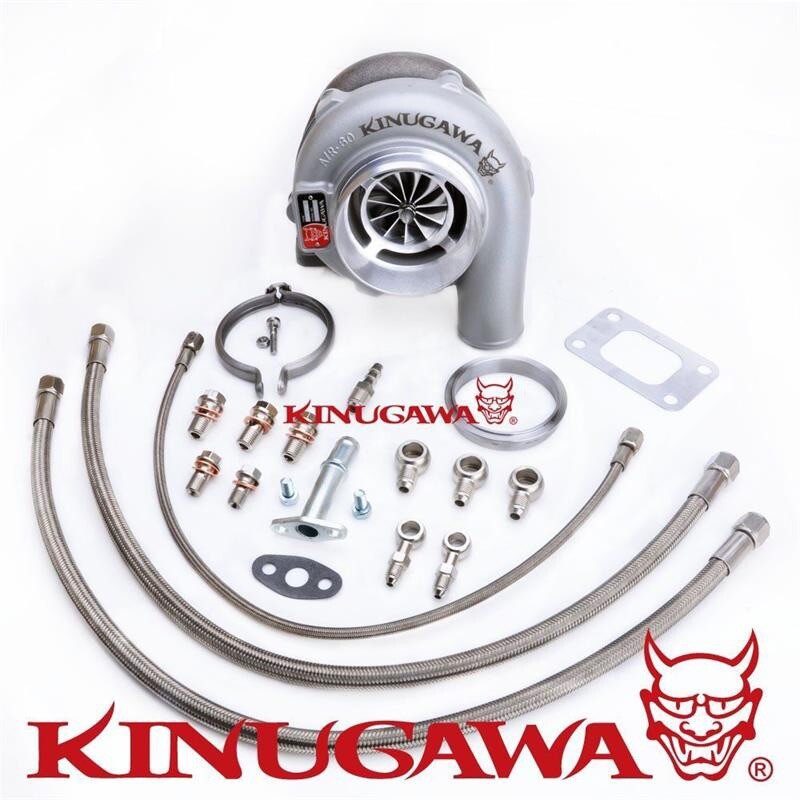

Kinugawa Ball Bearing Turbocharger 4" Anti-Surge GTX3076R Gen II 2 Twin Double V-band External Wastegate
AR .63 Stainless
compressor wheel: 58.2 / 76.4 mm
(9+0 point milling Billet Wheel with Extend Tip)
- Turbine Wheel : 60 mm / 55 mm / Trim 84 (10 blades aerodynamic design)
COMPRESSOR HOUSING
- compressor inlet OD : 4” / 100 mm
- compressor outlet OD : 2” / 51 mm
- compressor A/R : .60 w/ Anti-Surge
TURBINE HOUSING
- Turbine Inlet: V-band, Outside diameter 3" (76 mm) / Inside diameter 2.1" (55 mm)
- Turbine Outlet: V-band, Adapter Outside diameter 3.54" (90 mm) / Inside diameter 2.87" (73 mm)
COOLING/BEARING SYSTEM
- oil and water cooling
- ceramic dual ball bearing
