Product Information
P/N
001-2301
Item Name
MAMBA 9-7 for AUDI VW Turbocharger K04-020/022/023 Extreme K04-4760 1.8T AUDI S3 TT with APY, APX, AMK, BAM, BFV Engine 350HP
Produce
Situation
Brand New
Application
Bolt up to replace factory K04-020, K04-022, K04-023 (53049880020, 53049880022, 53049880023, 53049700020, 53049700022, 53049700023 )
1999- Audi S3 1.8 T Engine APY, AMK
1998- Audi TT 1.8 T (8N) Engine APX
1999-12 Audi S3 1.8 T with AMK Engine
1999-12 Audi TT 1.8 T (8N) with AMK APX Engine
2002-03 Seat Leon 1.8 T Cupra R with AMK Engine
2000-09 Audi S3, TT BAM, BAM BFV
2000- Audi S3 1.8L T Engine BAM
2000- Audi TT 1.8L T (8N) Engine BAM BFV
2004- Audi TT 1.8L T (8N) Engine BAM BFV
2003-05 Seat Leon 1.8L T Cupra R Engine BAM
Spec
Compressor wheel: 46.4/60 (7+7 Blade Billet Compressor Wheel)
Turbine Wheel: 46.5/52.0 (MAMBA Extreme 9 Blade)
HP Support: 300HP~350HP
Bearing/Cooling
system
Journal Bearing with Performance thrust bearing with 3 oil holes.
Oil and Water-cooled
Actuator
0.8bar spring is pre-installed on the adjustable actuator
Additional 1.2bar and 1.5bar spring go with box.
Kit Includes
1 x K04-4760 Turbocharger
1 x Oil Feed Line Kit
2 x Water Coolant line kit
1 x SS301 Turbine Inlet Gasket
1 x SS301 Turbine Outlet Gasket
6 x 10mm Stud Kit

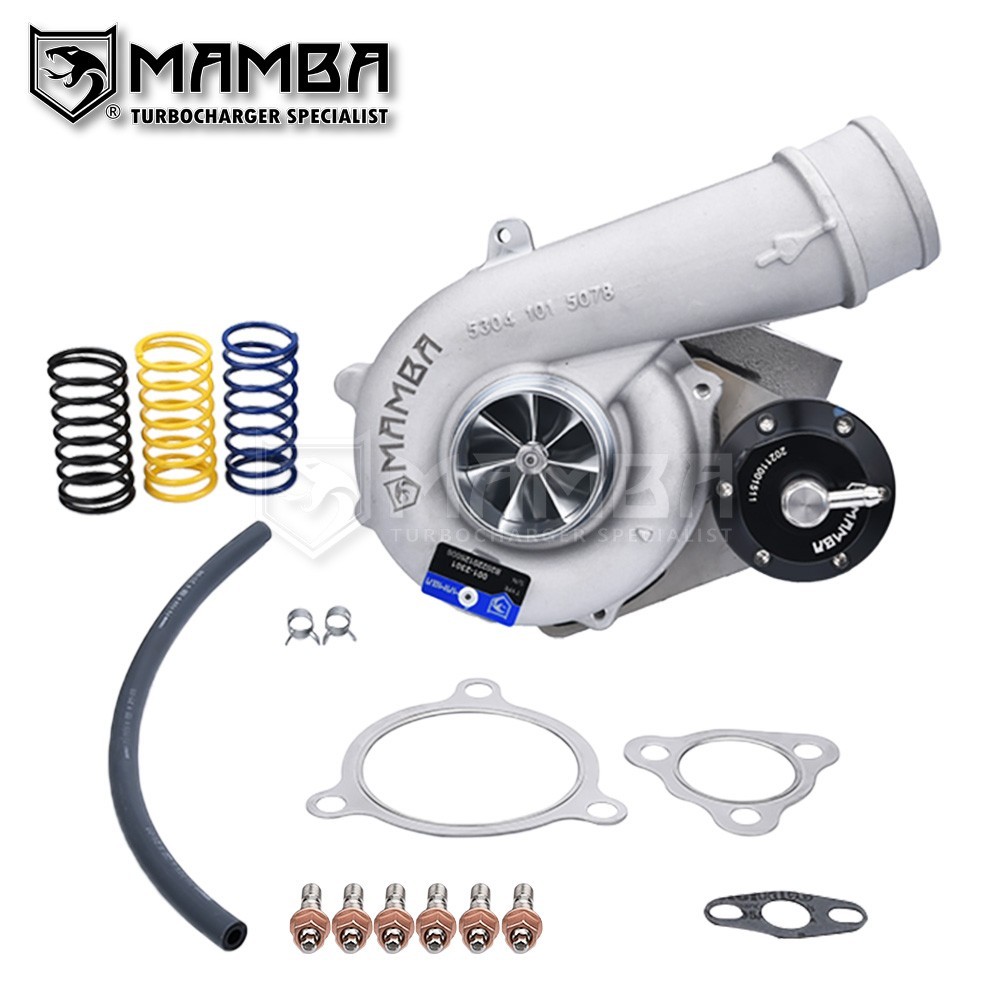

Everything shown on first picture is included.
Made by
MAMBATEK
Term & Policy
Shipping & Tax
- ImportDuties,taxes and charges aren\'t included in the item price or postagecost. These charges are the buyer\'s responsibility.
- We only delivery to the buyer’sPayPal address by following buyer protection policy. Please makesure before buying.
- We can ship item to P.O. address.
- All packages are double checked and well packed by our warehousestaffsto make sure they are safe on the delivery.
- Combined Shipping is available for most items and we always tryour best to save freight for our customers.
- If you have any question or request about international shippinganddeclared value, please email us.
Payment
- PayPal payments acceptable.
- Paypal & Handling fee and insurance included.
- Please note that paying by eCheck via PayPal can delay yourshipment byup to 10 days while payment clears through the PayPalsystem (Check with PayPal on the expected clearance date).
- Bank Wire (T/T) acceptable. If you make payment by T/T, pleaseemail usfor wire details.
Returned Policy
- If we send the wrong item, we willsend replace part asap once we get your information and pictures.
- If customers bought wrong parts, we accept the return within 2 weeks from the date of received package. The returned package mustbe underbrand new condition.20%restocking feewill be applied and Shipping &Handling fees are not refundable.
Turbocharger& Parts Notice
- Please check the number on yourOEM turbo or parts to make sure if it\'s right one for you. If youare not sure, please feel free to email us.
